Instrument Panel Center Air Outlet Replacement (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

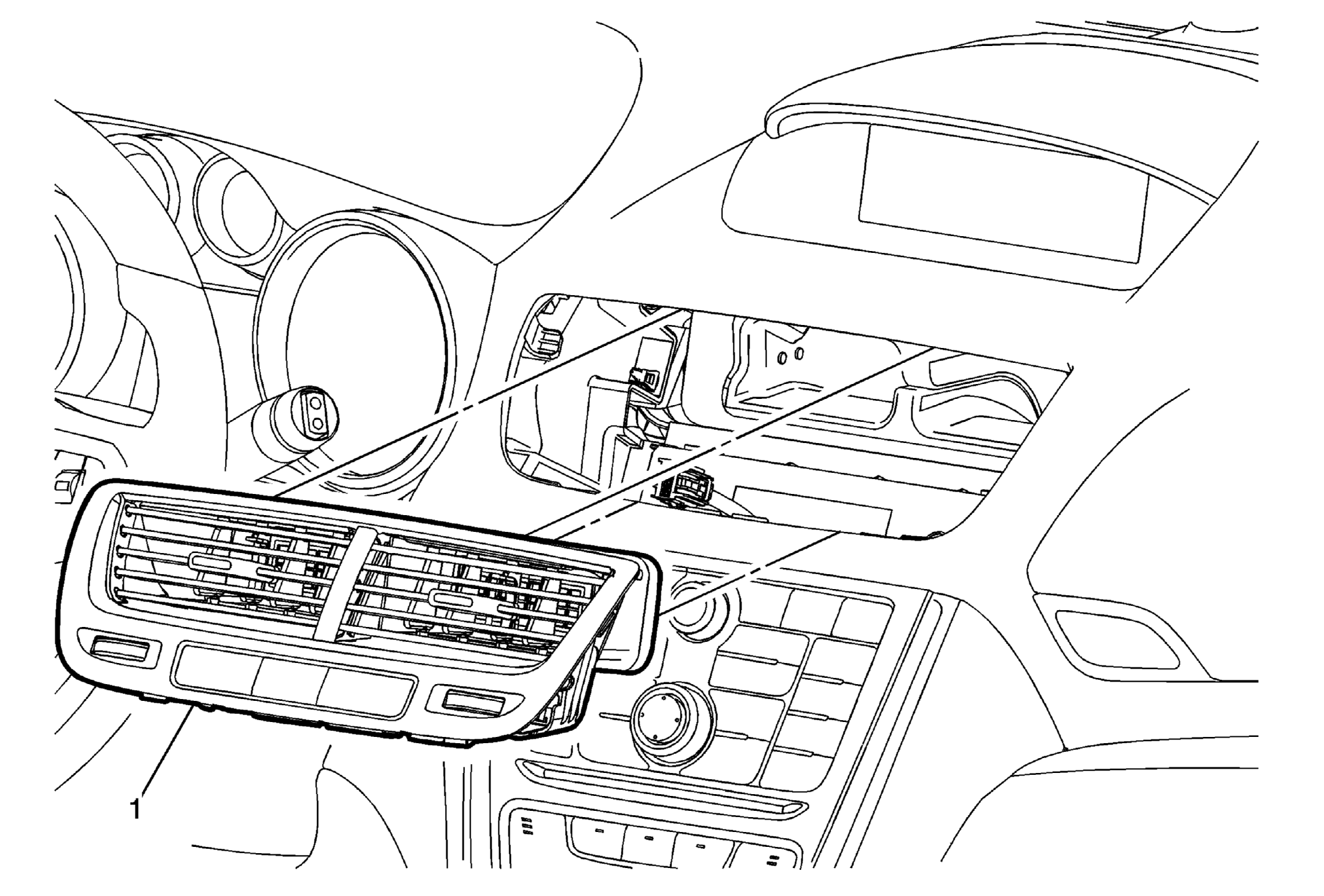

| Callout |
Component Name |
| 1 |
Instrument Panel Center Air Outlet Procedures
- Use a flat bladed plastic trim tool in order to release the tabs securing the air outlet to the instrument panel assembly.
- Disconnect electrical connection, if equipped.
- Transfer all necessary components.
|
