Instrument Panel Upper Compartment Replacement (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

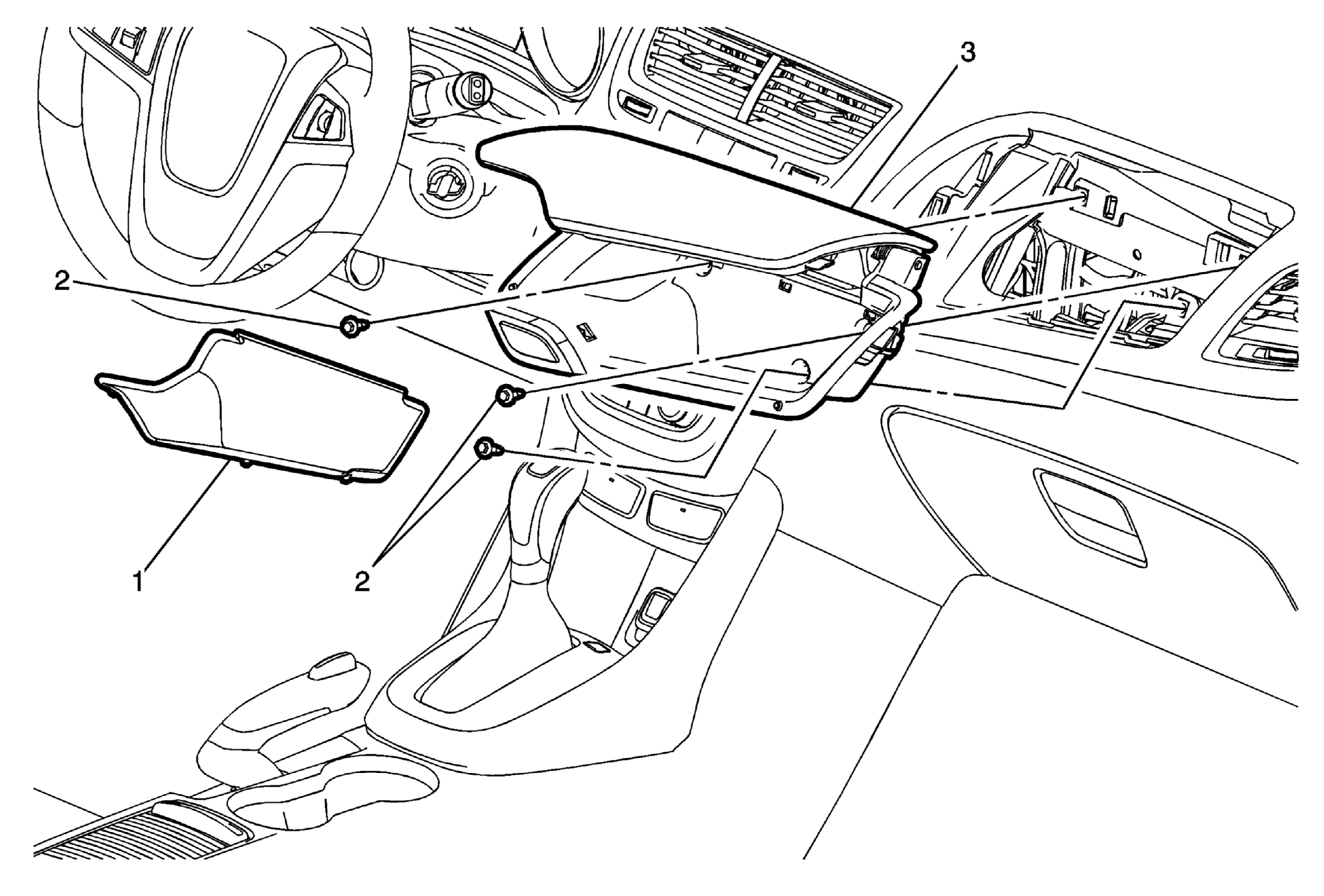

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Upper Compartment Mat Procedure Remove the mat to access the fasteners. |
| 2 | Instrument Panel Upper Compartment Fasteners (Qty: 3)
CAUTION:
Refer to Fastener Caution . |
| 3 | Instrument Panel Upper Compartment Procedure Use a flat bladed plastic trim tool to aid in the removal of the compartment from the instrument panel assembly. |
