Forward Lamp Harness Routing (Trax)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

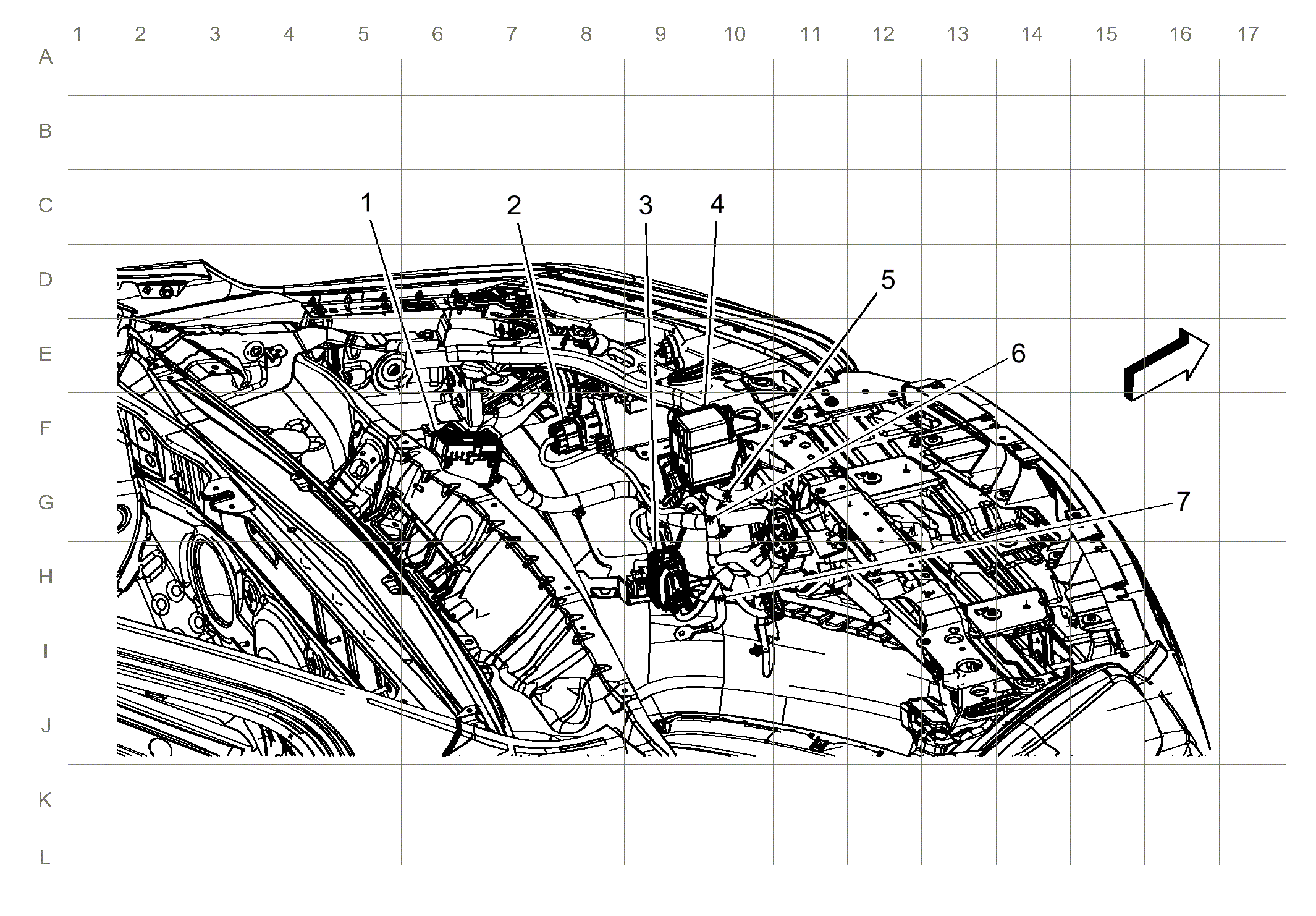

| Items |
|---|
| 1: X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X4 |
| 2:X110 X110 Forward Lamp Harness to Left Headlamp Harness (Trax) |
| 3:X105 X105 Forward Lamp Harness to Body Harness |
| 4: X70A Relay Block - Underhood X70A Relay Block - Underhood |
| 5:J130 |
| 6:J138 |
| 7:J125 |
