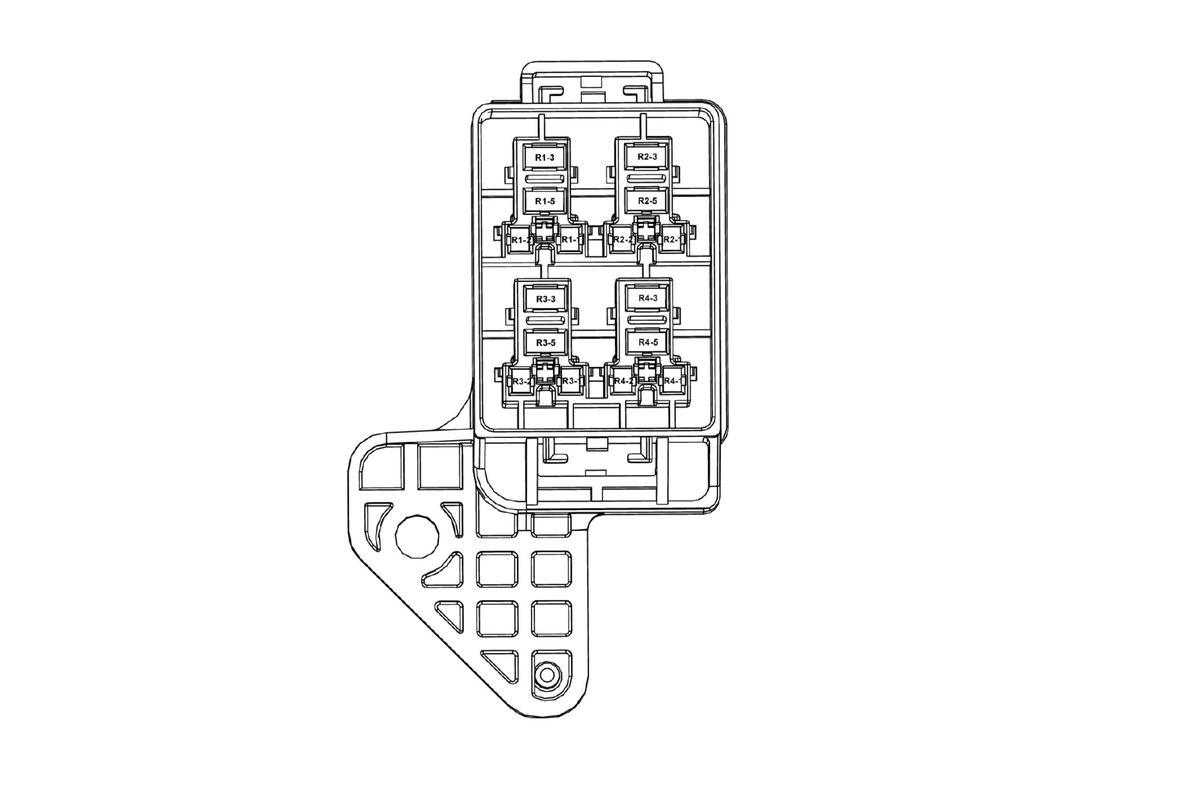

X70A Relay Block - Underhood
WARNING: This page is about a different car, the 2015 Chevrolet Trax. However, it is still accessible from the selected car via links, so may be relevant.
|
|
Connector Part Information
- Harness Type: Forward Lamp
- OEM Connector: 95183113
- Service Connector: Not Available
- Description: Not Available
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not Available |
Not Available |
Not Available |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| R1_1 |
0.5 |
BK |
1750 |
Ground |
I |
- |
| R1_2 |
0.5 |
BN |
6305 |
Brake Vacuum Switch Signal |
I |
- |
| R1_3 |
1.5 |
RD/VT |
2640 |
Battery Positive Voltage |
I |
- |
| R1_5 |
1.5 |
BN/VT |
1470 |
Brake Booster Pump Motor Supply Voltage |
I |
- |
| R2_1 |
0.5 |
BN/YE |
5128 |
Cooling Fan Relay Coil Control |
I |
- |
| R2_2 |
0.5 |
VT/BU |
5294 |
Powertrain Main Relay Fused Supply (5) |
I |
- |
| R2_3 |
0.5 |
VT/BU |
5294 |
Powertrain Main Relay Fused Supply (5) |
I |
- |
| R2_5 |
0.5 |
WH |
2368 |
Cooling Fan Control Signal |
I |
- |
| R3_1 |
0.5 |
GN/VT |
335 |
Low Speed Cooling Fan Relay Control |
I |
- |
| R3_2 |
0.5 |
VT/BU |
5294 |
Powertrain Main Relay Fused Supply (5) |
I |
- |
| R3_3 |
0.5 |
BN/YE |
5128 |
Cooling Fan Relay Coil Control |
I |
- |
| R3_5 |
0.5 |
BK |
1750 |
Ground |
I |
- |
| R4_1 |
- |
- |
- |
Not Used |
- |
- |
| R4_2 |
- |
- |
- |
Not Used |
- |
- |
| R4_3 |
- |
- |
- |
Not Used |
- |
- |
| R4_5 |
- |
- |
- |
Not Used |
- |
- |
