Luggage Shade Replacement (Encore)
WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

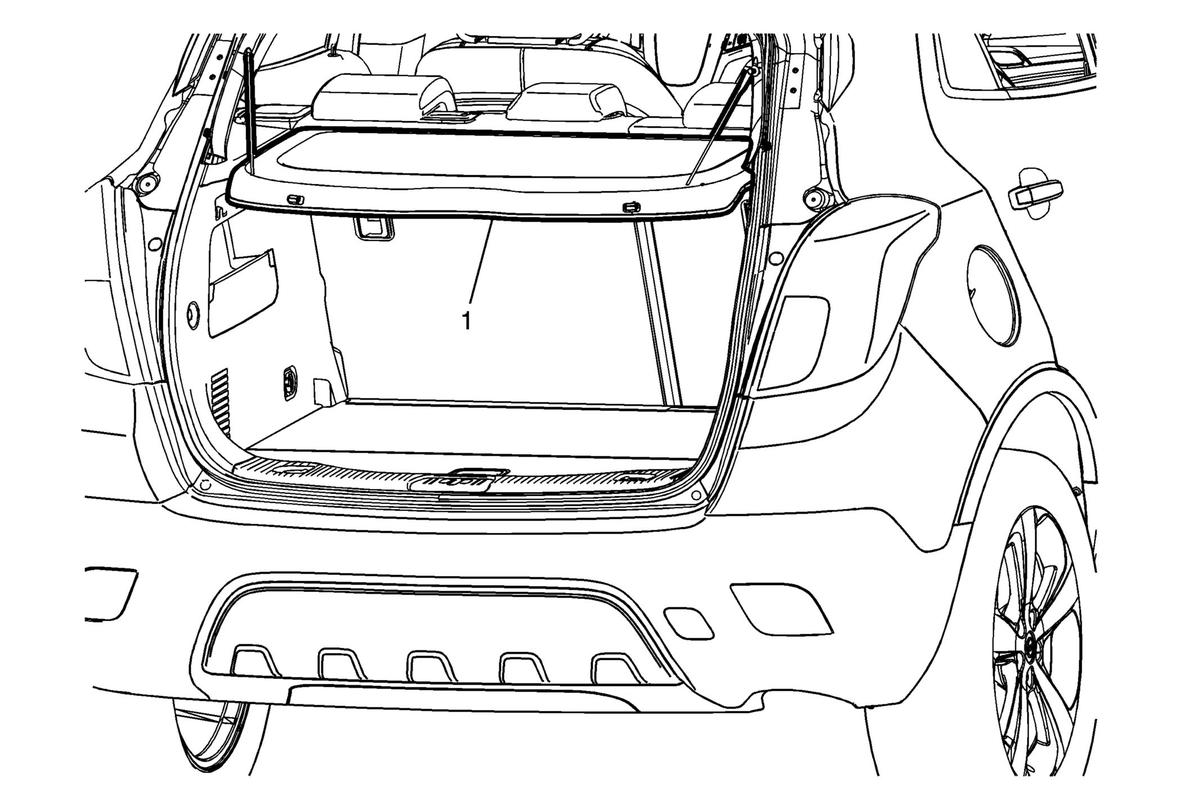

| Callout |
Component Name |
| 1 |
Luggage Shade Assembly Procedure
- Release the luggage shade straps from the liftgate.
- Pull gently upon the luggage shade to disengage from the body lock pillar upper trim panel. Release the luggage shade from the pivot supports.
|
