Rear Seat Back Cushion Panel Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

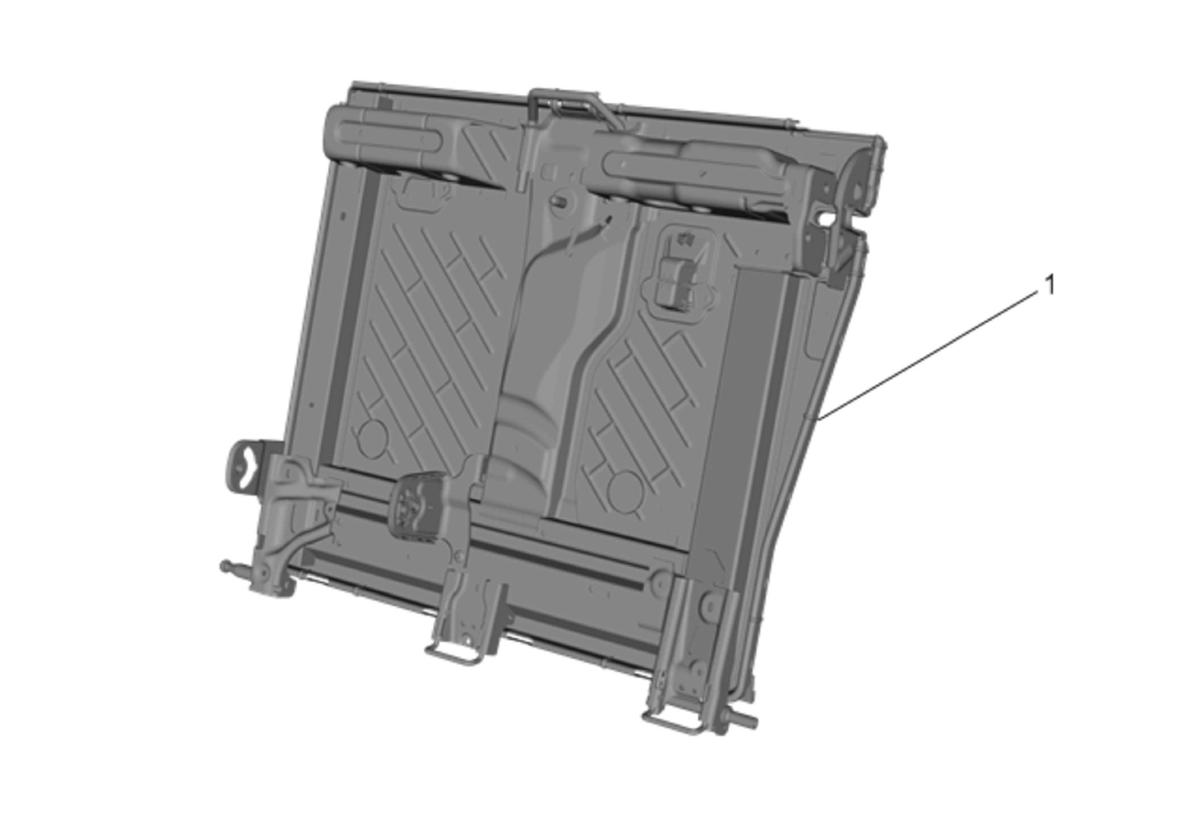

Fig 1: Rear Seat Back Cushion Panel
GM2789280Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the rear seat back cushion. Refer to Rear Seat Back Cushion Removal and Installation (40%) Rear Seat Back Cushion Removal and Installation (60%)
  2. Remove the rear seat head restraint guide. Refer to Rear Seat Head Restraint Guide Replacement
  3. Remove the rear seat back cushion latch release knob bezel. Refer to Rear Seat Back Cushion Latch Release Handle Bezel Replacement
  4. Remove the child seat bracket access hole cover. Refer to Child Seat Bracket Access Hole Cover Replacement
  5. Remove the rear seat back cushion pivot support. Refer to Rear Seat Back Cushion Pivot Support Replacement
  6. Remove the rear seat latch. Refer to Rear Seat Latch Replacement
  7. Remove the rear seat back carpet. Refer to Rear Seat Back Cushion Carpet Replacement (40%) Rear Seat Back Cushion Carpet Replacement (60%)
  8. Remove the rear seat center shoulder belt. Refer to Rear Seat Center Shoulder Belt Replacement .
1 Rear Seat Back Cushion Panel

Procedure

  1. If replacing the seat back panel, transfer components as necessary.
