Front Seat Adjuster Actuator Replacement

WARNING: This page is about a different car, the 2015 Chevrolet Trax and 2015 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

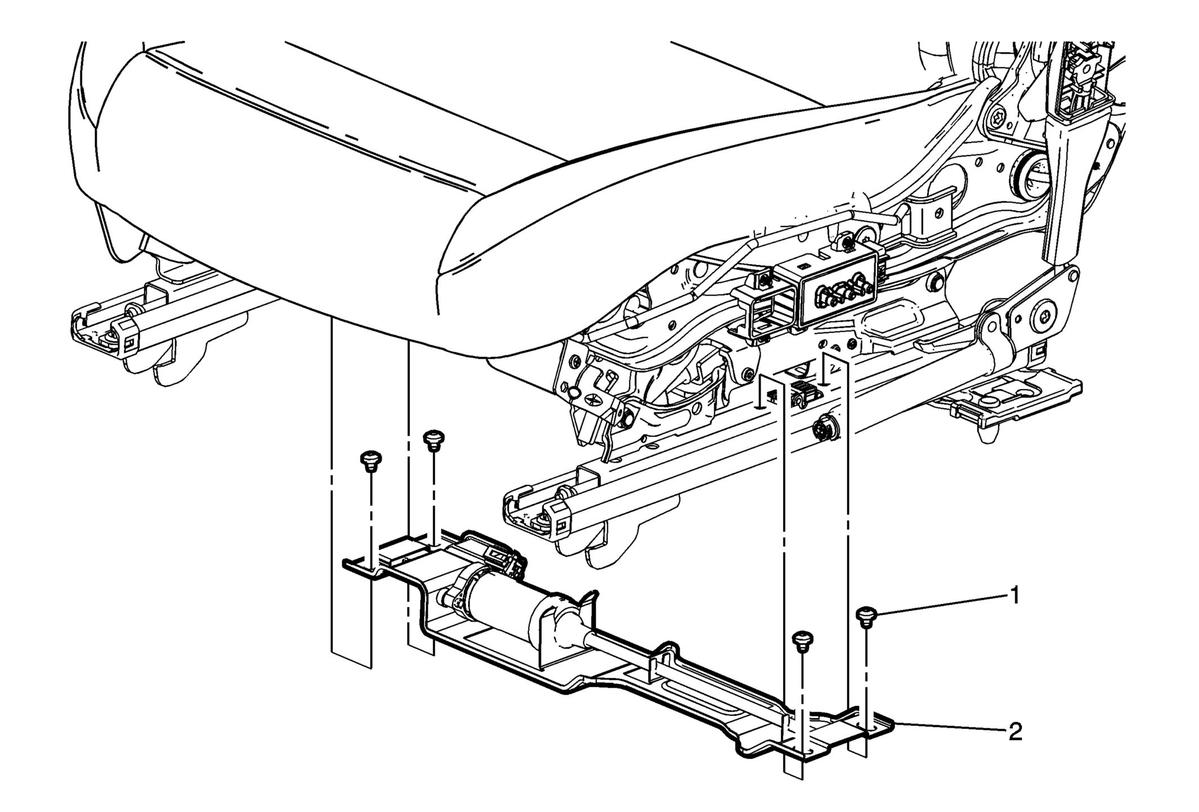

Fig 1: Front Seat Adjuster Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Adjust the seat to the full upward position. Remove the front seat anchor plate tensioner cover. Refer to Front Seat Belt Anchor Plate Tensioner Cover Replacement . Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
1	Front Seat Adjuster Actuator Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Front Seat Adjuster Actuator Procedure Disconnect the electric connector. Remove the seat adjuster motor shaft out of both seat frame side brackets. Remove the seat adjuster and mounting bracket by pulling downward from the cushion frame.

Callout

Component Name

Preliminary Procedures

Adjust the seat to the full upward position.
Remove the front seat anchor plate tensioner cover. Refer to Front Seat Belt Anchor Plate Tensioner Cover Replacement .
Remove the driver or passenger seat. Refer to Driver or Passenger Seat Removal and Installation .

Front Seat Adjuster Actuator Fasteners (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Front Seat Adjuster Actuator

Procedure

Disconnect the electric connector.
Remove the seat adjuster motor shaft out of both seat frame side brackets.
Remove the seat adjuster and mounting bracket by pulling downward from the cushion frame.
