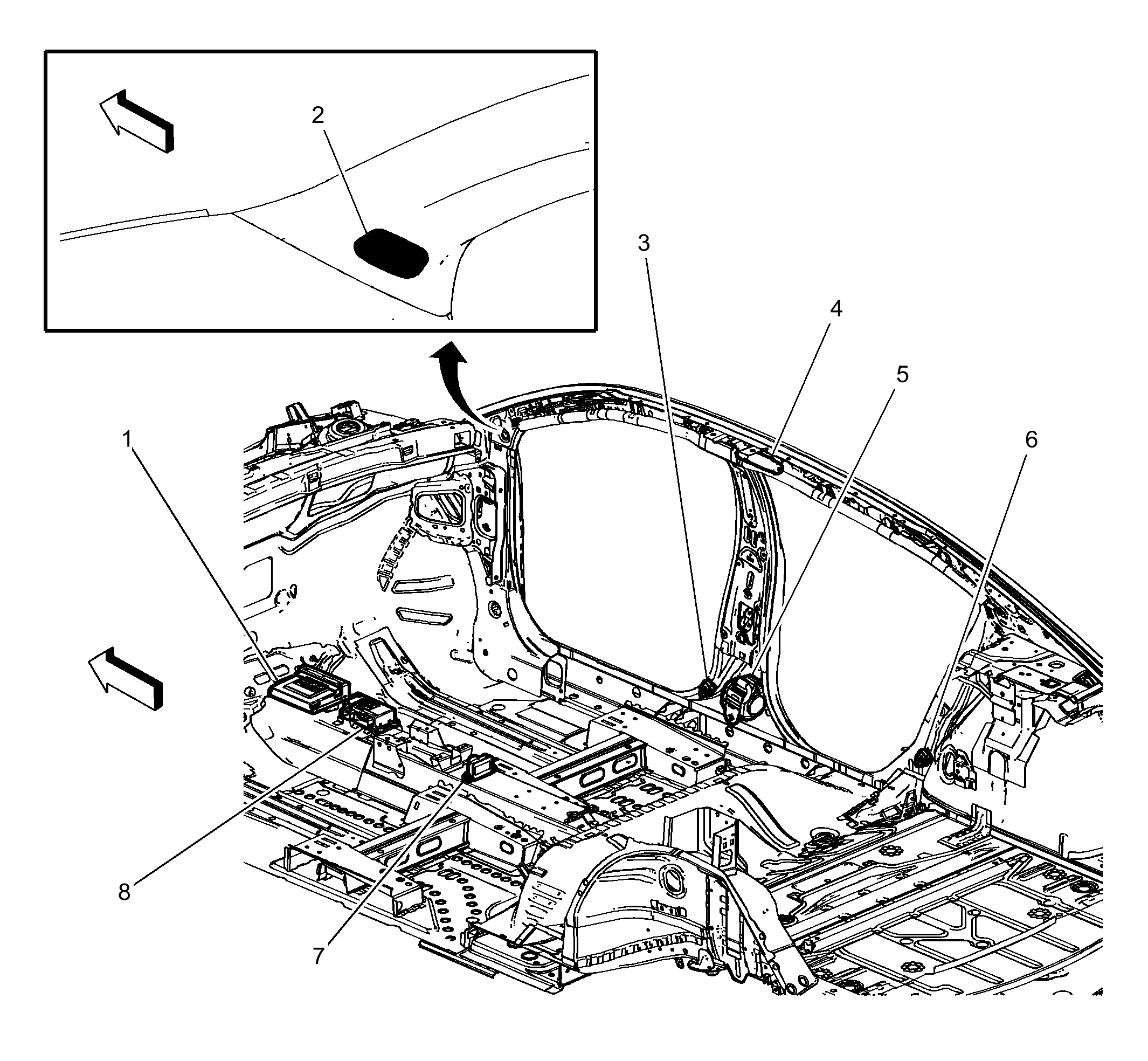

Right Side of Passenger Compartment Components
Right Side of Passenger Compartment Components
| Items |
|---|
| 1: K9 Body Control Module K9 Body Control Module X1 , K9 Body Control Module X2 , K9 Body Control Module X3 , K9 Body Control Module X4 , K9 Body Control Module X5 , K9 Body Control Module X6 and K9 Body Control Module X7 |
| 2: P19V Speaker - Right Front Tweeter P19V Speaker - Right Front Tweeter |
| 3: B63RF Side Impact Sensor - Right Front B63RF Side Impact Sensor - Right Front |
| 4: F105R Roof Rail Air Bag - Right F105R Roof Rail Air Bag - Right |
| 5: F112P Seat Belt Retractor Pretensioner - Passenger F112P Seat Belt Retractor Pretensioner - Passenger |
| 6: B63RR Side Impact Sensor - Right Rear B63RR Side Impact Sensor - Right Rear |
| 7: B119 Multi-axis Acceleration Sensor (FX3) B119 Multi-axis Acceleration Sensor |
| 8: K36 Inflatable Restraint Sensing and Diagnostic Module K36 Inflatable Restraint Sensing and Diagnostic Module X1 and K36 Inflatable Restraint Sensing and Diagnostic Module X2 |
