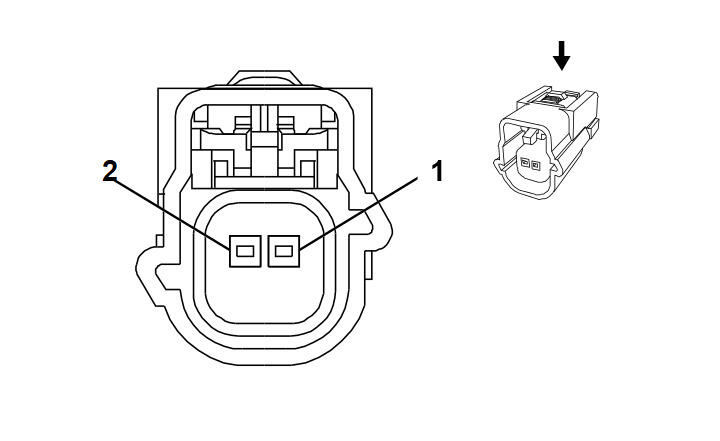

B63RF Side Impact Sensor - Right Front
|
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 13610095
- Service Connector: 13585852
- Description: 2-Way F 0.64 Series, Sealed (D-GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
Service Terminal |
Tray |
Core Crimp |
Insulation Crimp |
| I |
Not Required |
J-35616-64B (LT BU) |
Not Required |
Not Required |
Not Required |
Not Required |
Not Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BN/OG |
2134 |
Right Front Side Impact Sensing Module Signal |
I |
- |
| 2 |
0.5 |
BK/OG |
6629 |
Right Front Side Impact Sensing Module Low Reference |
I |
- |
