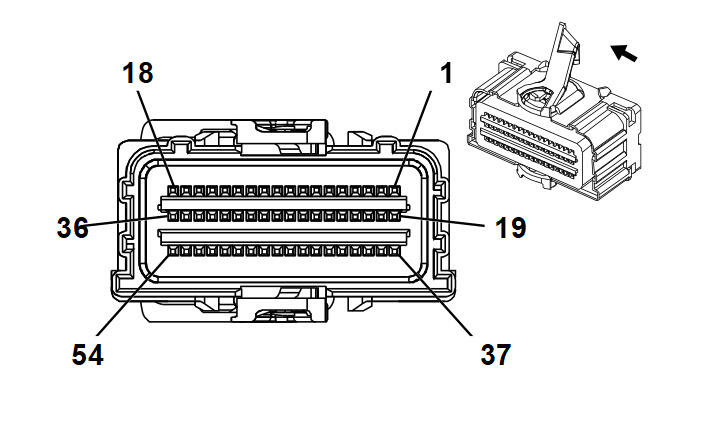

K36 Inflatable Restraint Sensing and Diagnostic Module X2

Connector Part Information

Harness Type: Body
OEM Connector: 33119249
Service Connector: 13589171
Description: 54-Way F 0.64 Series, Sealed (BK w/ YE cover)

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool	Service Terminal	Tray	Core Crimp	Insulation Crimp
I	19331735	J-35616-64B (LT BU)	J-38125-22	Not Available	Not Available	Not Available	Not Available
II	19328872	J-35616-64B (LT BU)	J-38125-11A	Not Available	Not Available	Not Available	Not Available
III	19331735	J-35616-64B (LT BU)	J-38125-22	Not Available	Not Available	Not Available	Not Available

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1 - 4	-	-	-	Not Occupied	-	-
5	0.5	VT/OG	5225	Right Rear Side Impact SIR Inflator Control	III	-
6	0.5	OG/GY	5226	Right Rear Side Impact SIR Inflator Control	III	-
7	0.5	BN/OG	5224	Left Rear Side Impact SIR Inflator Control	III	-
8	0.5	OG/GY	5223	Left Rear Side Impact SIR Inflator Control	III	-
9	0.5	OG/YE	3481	Driver Seat Belt Anchor Pretensioner High Control	II	-
10	0.5	YE/OG	3482	Driver Seat Belt Anchor Pretensioner Low Control	II	-
11	0.5	GY/OG	3480	Passenger Seat Belt Anchor Pretensioner Low Control	II	-
12	0.5	OG/BN	3479	Passenger Seat Belt Anchor Pretensioner High Control	II	-
13	0.5	OG/D-BU	2137	Left Front Side Impact Module High Control	II	-
14	0.5	YE/OG	2138	Left Front Side Impact Module Low Control	II	-
15	0.5	L-GN/OG	2136	Right Front Side Impact Module Low Control	II	-
16	0.5	OG/YE	2135	Right Front Side Impact Module High Control	II	-
17	0.5	OG/L-GN	5019	Left Front Head Curtain Module High Control	II	-
18	0.5	VT/OG	5020	Left Front Head Curtain Module Low Control	II	-
19	0.5	OG/L-GN	2132	Left Front Side Impact Sensing Module Signal	II	-
20	0.5	BK/OG	6628	Left Front Side Impact Sensing Module Low Reference	II	-
21	0.5	BK/OG	6629	Right Front Side Impact Sensing Module Low Reference	II	-
22	0.5	BN/OG	2134	Right Front Side Impact Sensing Module Signal	II	-
23	0.5	OG/YE	354	Left Front Discriminating Sensor Signal	II	-
24	0.5	BK/OG	5045	Left Front Discriminating Sensor Low Reference	II	-
25	0.5	BK/OG	5600	Right Front Discriminating Sensor Low Reference	II	-
26	0.5	OG/L-GN	1409	Right Front Discriminating Sensor Signal	II	-
27	0.5	OG/D-BU	6620	Left Middle Side Impact Sensing Module Signal	II	-
28	0.5	BK/OG	6621	Left Middle Side Impact Sensing Module Low Reference	II	-
29	0.5	BK/OG	6625	Right Middle Side Impact Sensing Module Low Reference	II	-
30	0.5	OG/VT	6624	Right Middle Side Impact Sensing Module Signal	II	-
31 - 36	-	-	-	Not Occupied	-	-
37	0.5	BN/D-BU	2118	Driver Seat Belt Pretensioner High Control	III	-
38	0.5 0.5	OG/RD OG/RD	2119 2119	Driver Seat Belt Pretensioner Low Control	III I	- -
39	0.5	D-BU/OG	2117	Passenger Seat Belt Pretensioner Low Control	III	-
40	0.5	OG/GY	2116	Passenger Seat Belt Pretensioner High Control	III	-
41	0.5	OG/BN	238	Driver Seat Belt Switch Signal	II	-
42	-	-	-	Not Occupied	-	-
43	0.5	BK/OG	1363	Driver Seat Belt Switch Low Reference	II	-
44	0.5	BK/OG	1361	Passenger Seat Belt Switch Low Reference	II	-
45	0.5	OG/VT	1362	Passenger Seat Belt Switch Signal	II	-
46	-	-	-	Not Occupied	-	-
47	0.5	OG/BN	7571	Passenger Seat Belt Reminder Signal	II	-
48 - 52	-	-	-	Not Occupied	-	-
53	0.5	OG/D-BU	5021	Right Front Head Curtain Module High Control	II	-
54	0.5	WH/BK	5022	Right Front Head Curtain Module Low Control	II	-
