Instrument Cluster Replacement

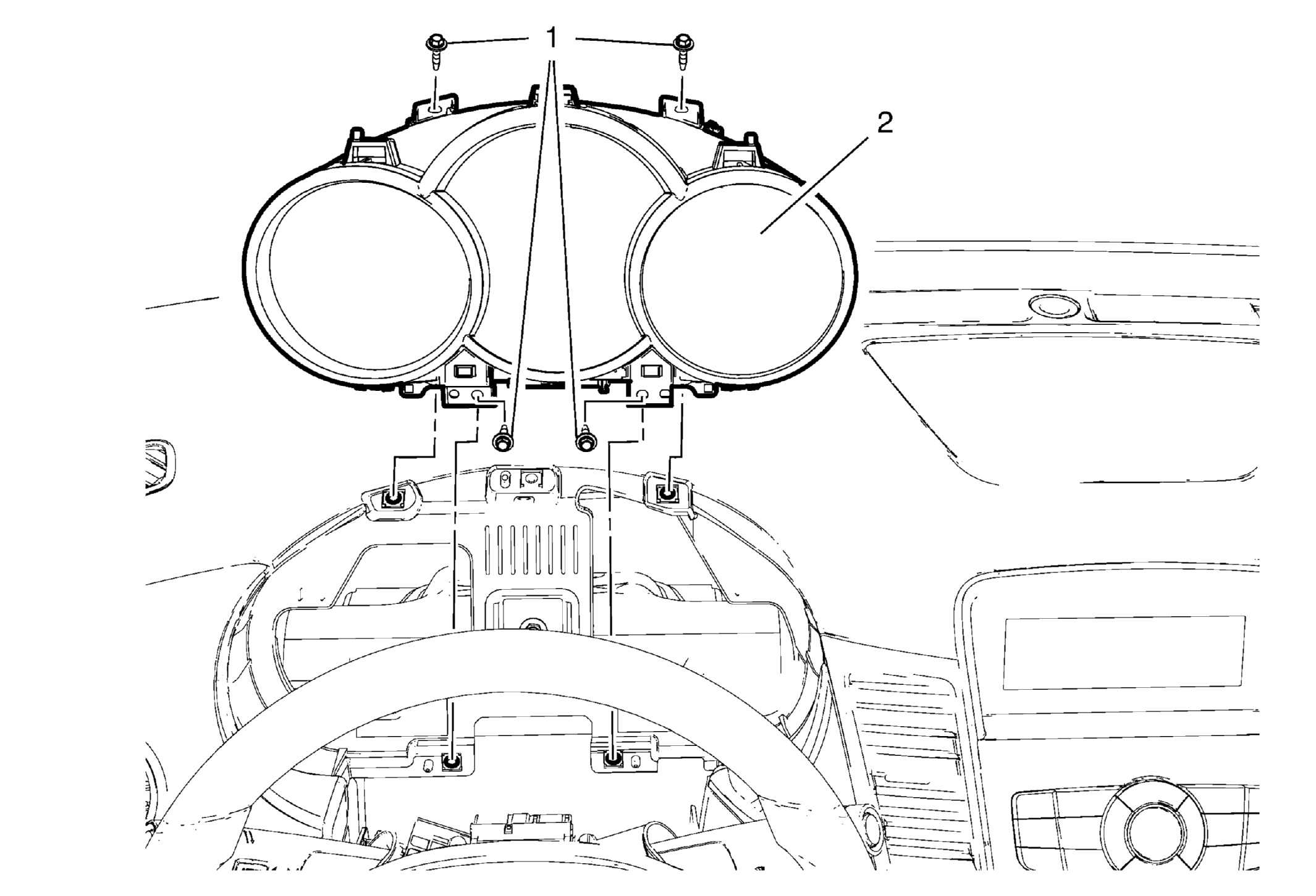

Fig 1: Instrument Cluster

GM2537965

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the lower instrument panel cluster trim plate. Refer to Instrument Panel Cluster Lower Trim Plate Replacement .
Remove the steering column upper trim cover. Refer to Steering Column Upper Trim Cover Replacement .

1

Instrument Cluster Screw (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

2

Instrument Cluster

Procedure

Disconnect electrical connector.
After replacement, refer to Control Module References , for programming and set up procedures.
