Instrument Panel Cluster Lower Trim Plate Replacement

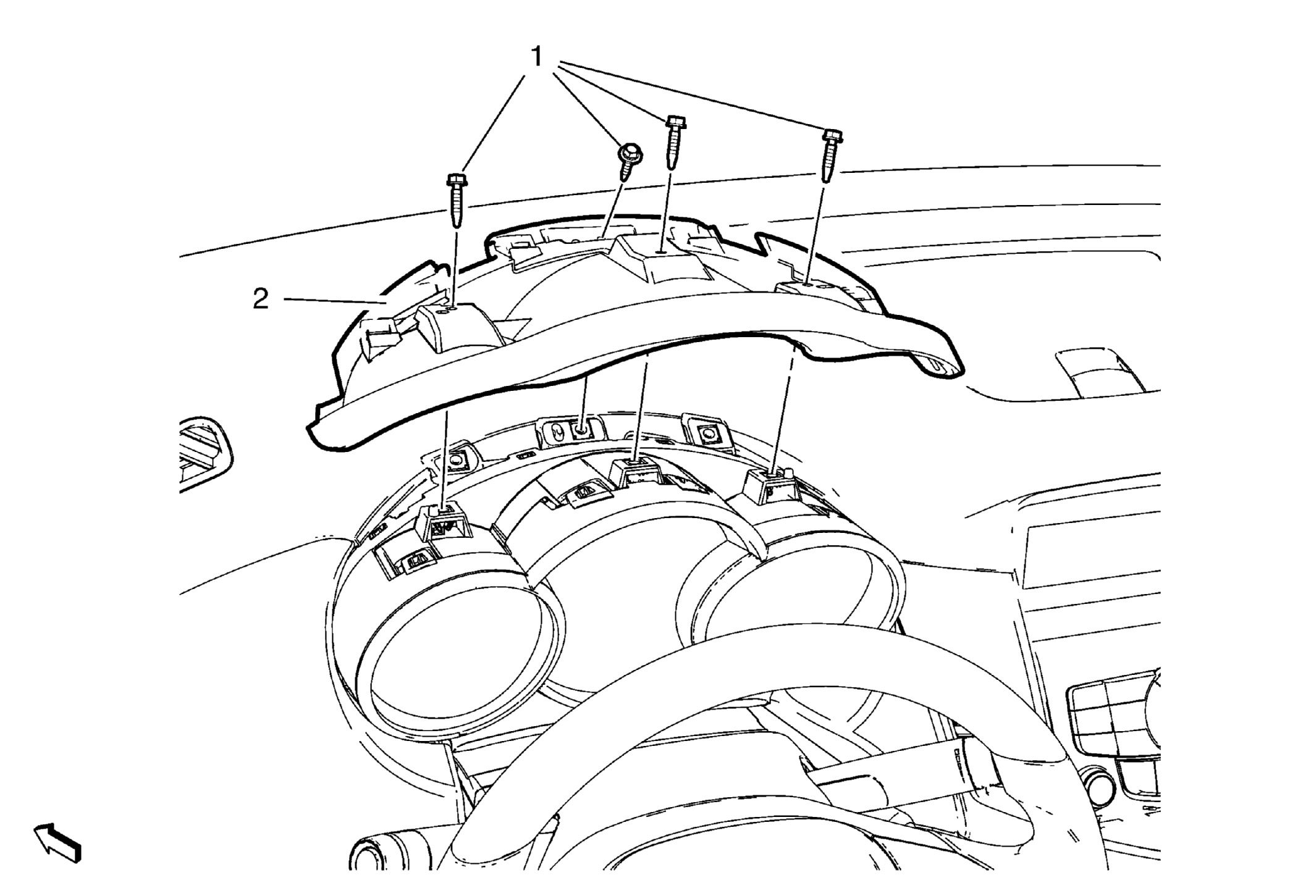

Fig 1: Instrument Panel Cluster Lower Trim Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove instrument panel cluster trim plate. Refer to Instrument Panel Cluster Trim Plate Replacement .
1	Instrument Panel Cluster Lower Trim Plate Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Instrument Panel Cluster Lower Trim Plate
