Removal Procedure

  1. Remove the front floor console. Refer to Front Floor Console Replacement .
  2. Unhook the parking brake cable (1) from the parking brake lever (2).

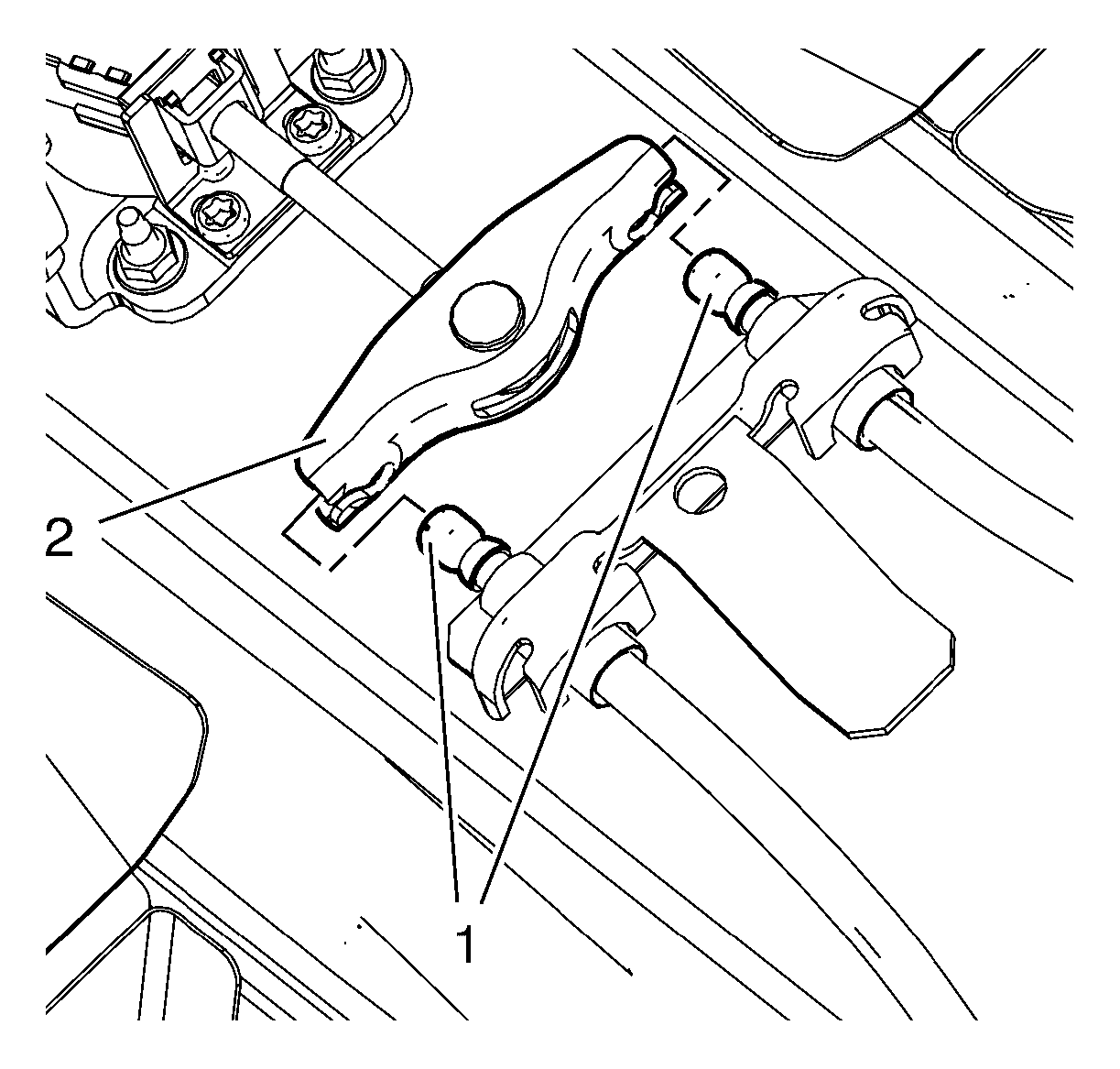

    Fig 1: Parking Brake Cable At Parking Brake Lever
    GM2027550Courtesy of GENERAL MOTORS COMPANY
  3. Remove the parking brake indicator switch. Refer to Parking Brake Indicator Switch Replacement .
  4. Remove the parking brake lever nut (1).

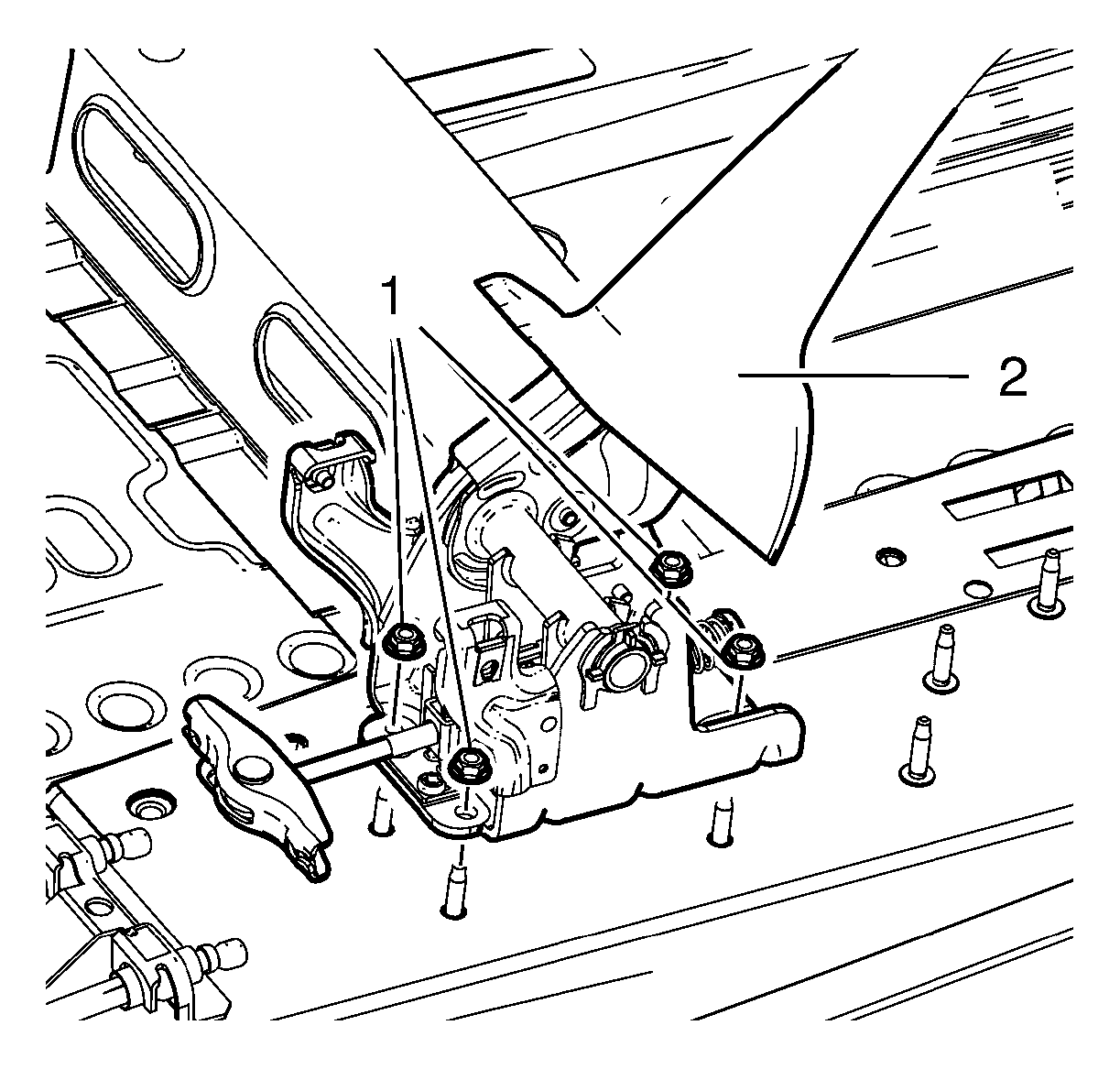

    Fig 2: Parking Brake Lever Nuts
    GM2027551Courtesy of GENERAL MOTORS COMPANY
  5. Remove the parking brake lever (2).
