Parking Brake Indicator Switch Replacement

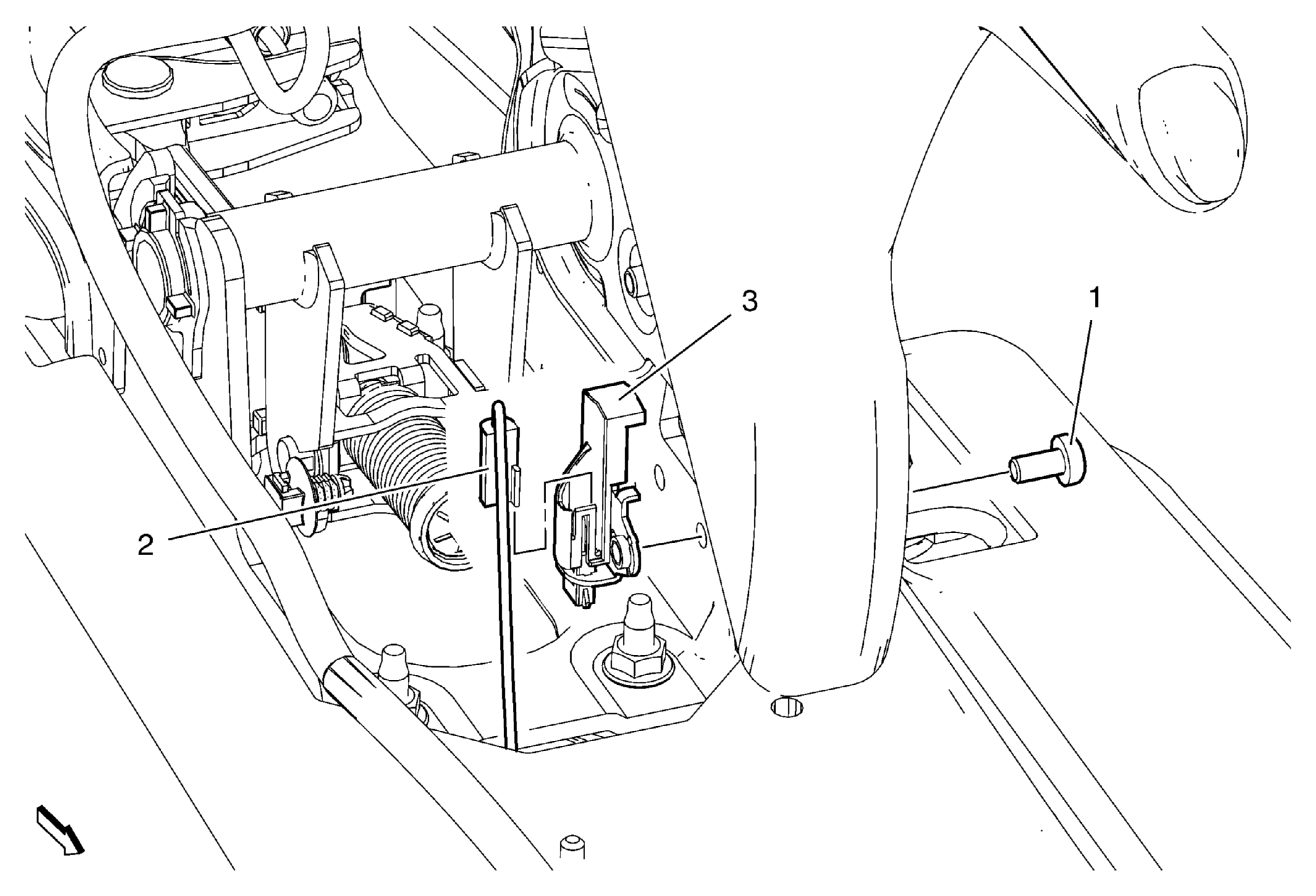

Fig 1: Parking Brake Indicator Switch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the front floor console. Refer to Front Floor Console Replacement .
1	Parking Brake Indicator Switch Bolt CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Wiring Harness Connector Parking Brake Indicator Switch
3	Parking Brake Indicator Switch
