Removal Procedure

  1. Remove the front floor console. Refer to Front Floor Console Replacement .
  2. Remove the rear seat cushion. Refer to Rear Seat Cushion Removal and Installation .
  3. Remove the center pillar lower garnish molding. Refer to Center Pillar Lower Garnish Molding Replacement .
  4. Partially remove the rear floor carpet (1).

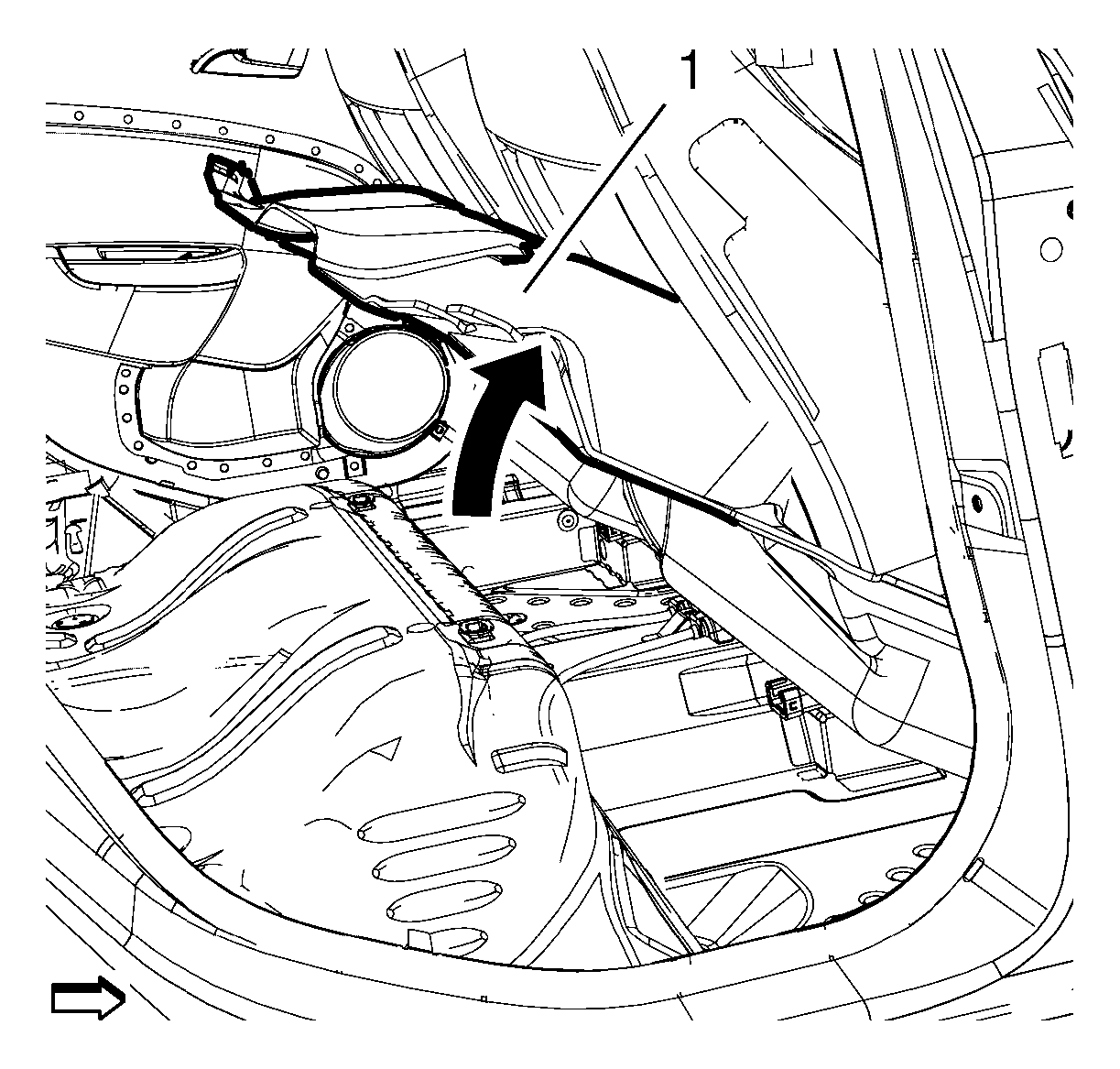

    Fig 1: Rear Floor Carpet
    GM2371680Courtesy of GENERAL MOTORS COMPANY
  5. Remove the parking brake cable (2) from the parking brake lever (1).

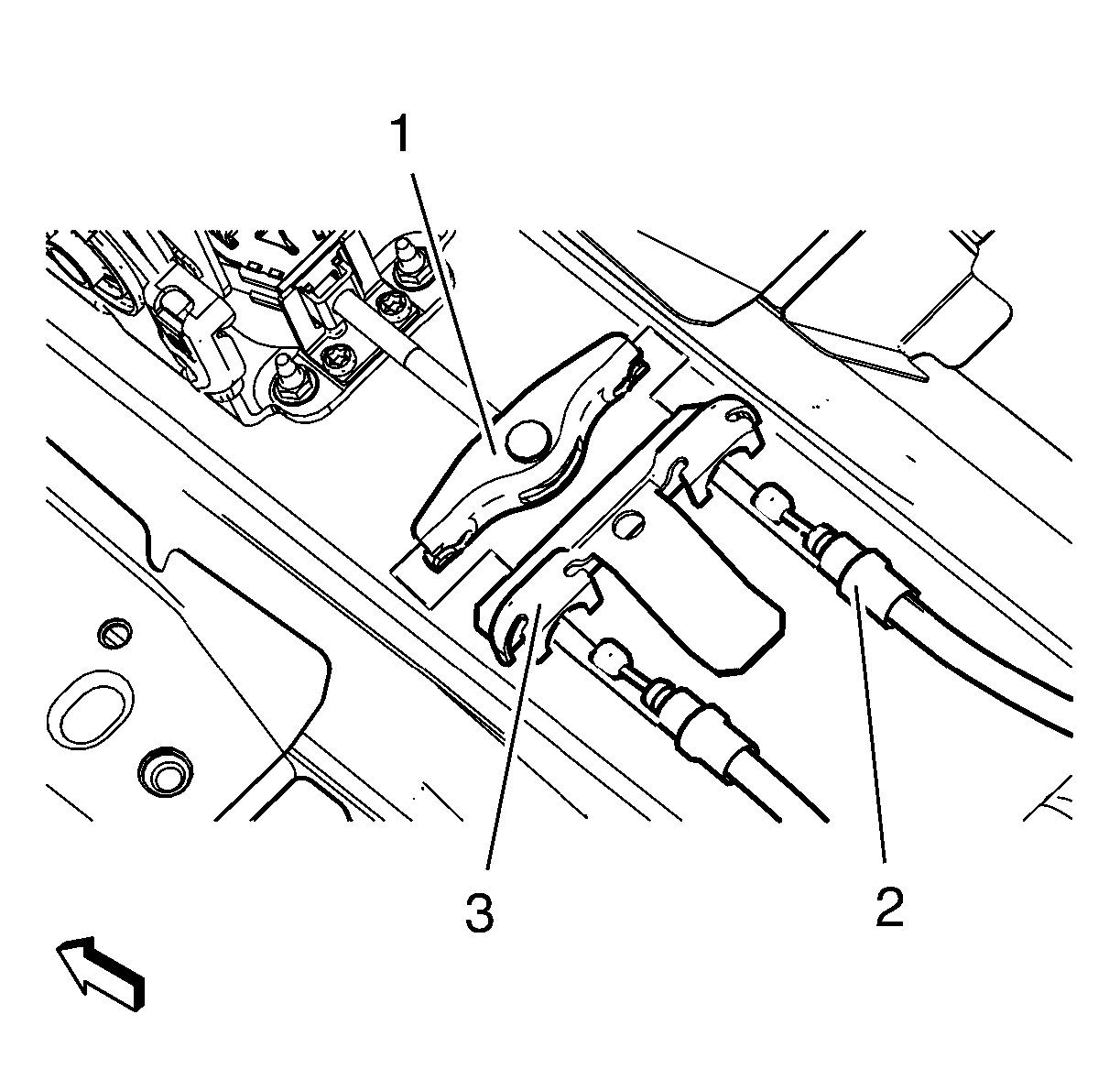

    Fig 2: Parking Brake Cable And Parking Brake Cable Bracket
    GM2027533Courtesy of GENERAL MOTORS COMPANY
  6. Remove the parking brake cable (2) from the parking brake cable bracket (3).
  7. Remove the parking brake cable clip (1).

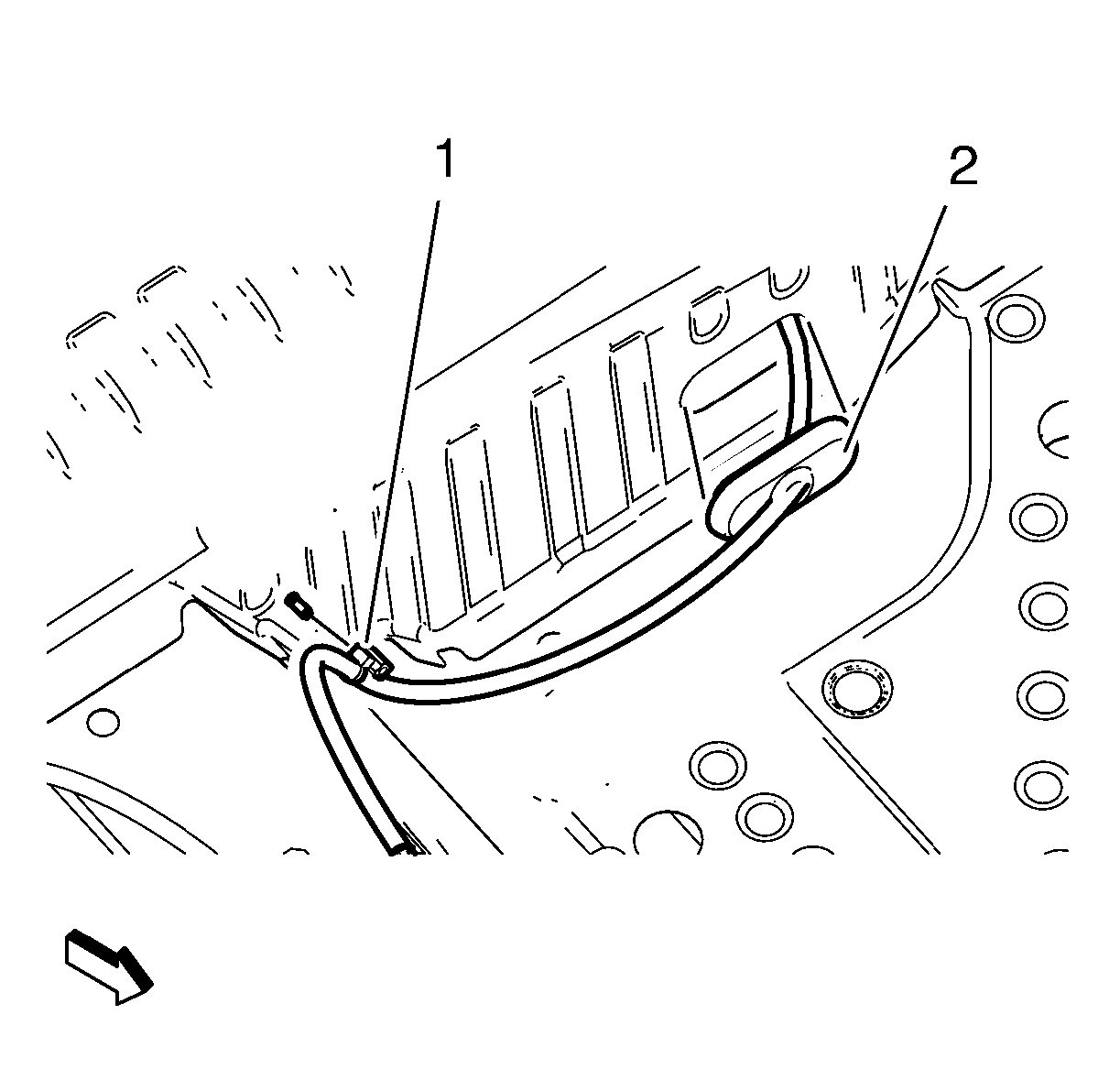

    Fig 3: Parking Brake Cable Clip
    GM2027535Courtesy of GENERAL MOTORS COMPANY
  8. Remove the parking brake cable grommet (2).
  9. Remove the parking brake cable casing retainer bolt (1).

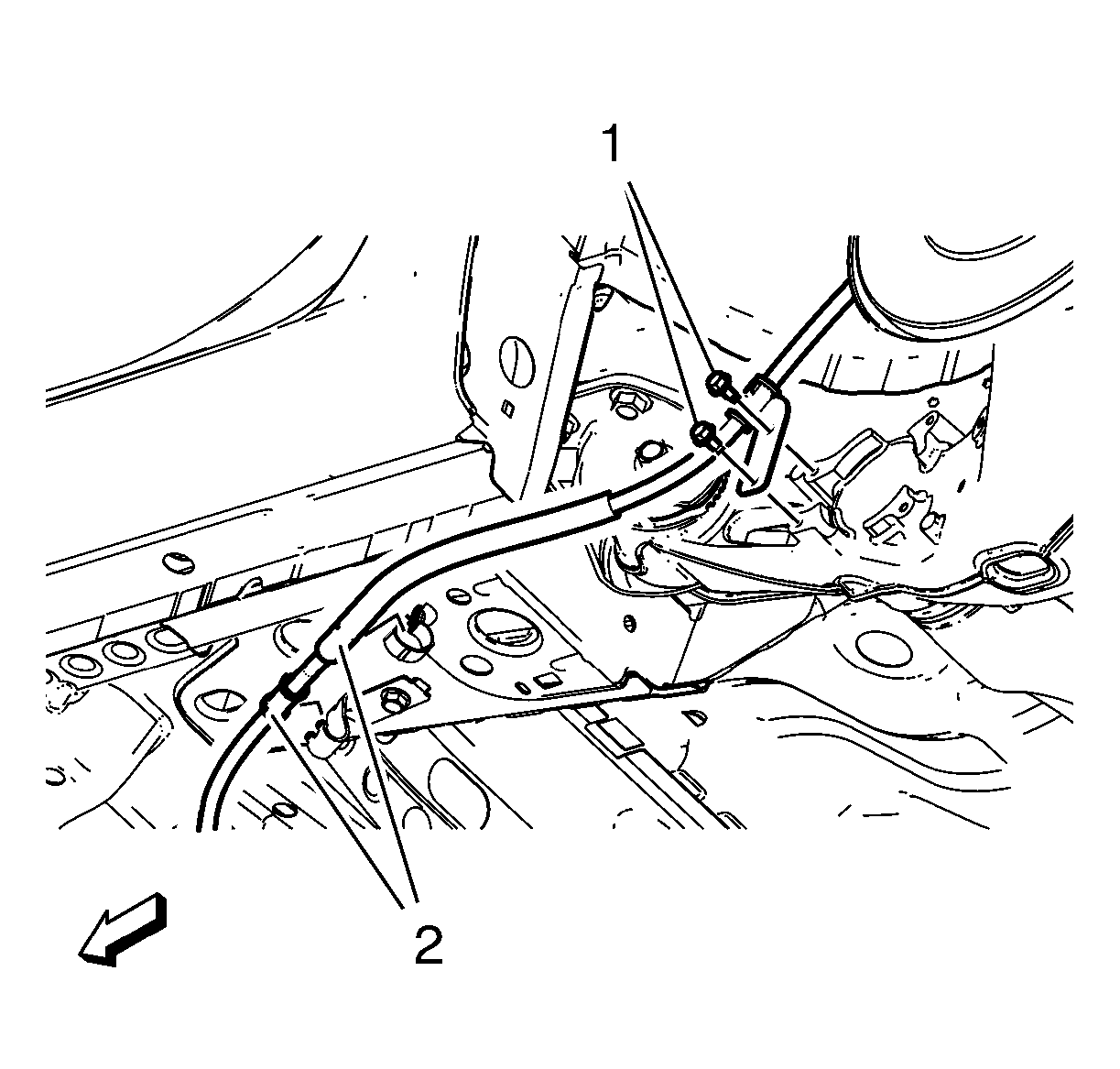

    Fig 4: Parking Brake Cable Casing Retainer Bolt
    GM2027536Courtesy of GENERAL MOTORS COMPANY
  10. Unclip the parking brake cable.
  11. Remove the parking brake cable (1) from the rear brake caliper.

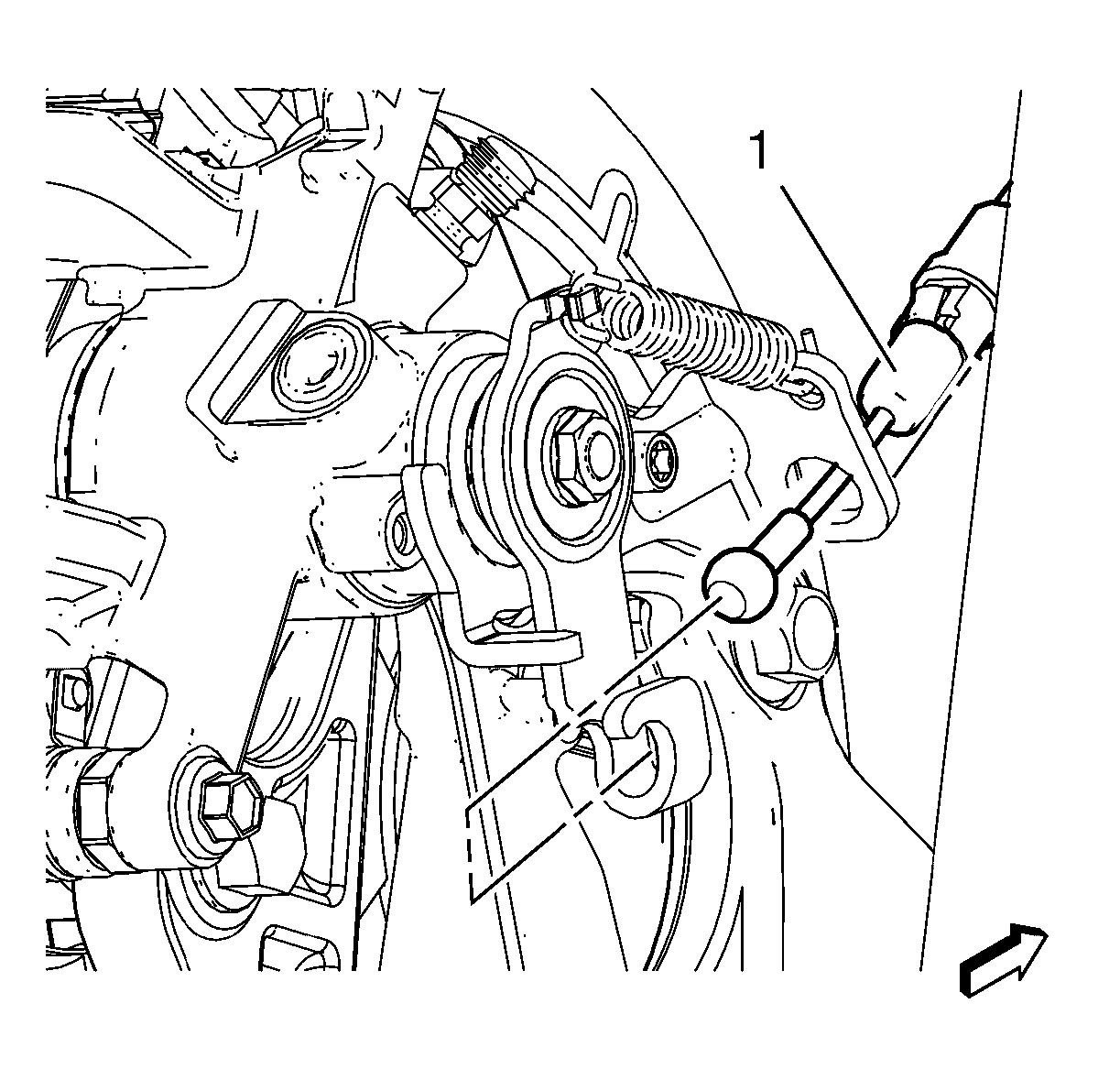

    Fig 5: Parking Brake Cable At Rear Brake Caliper
    GM2027539Courtesy of GENERAL MOTORS COMPANY
