Center Pillar Lower Garnish Molding Replacement

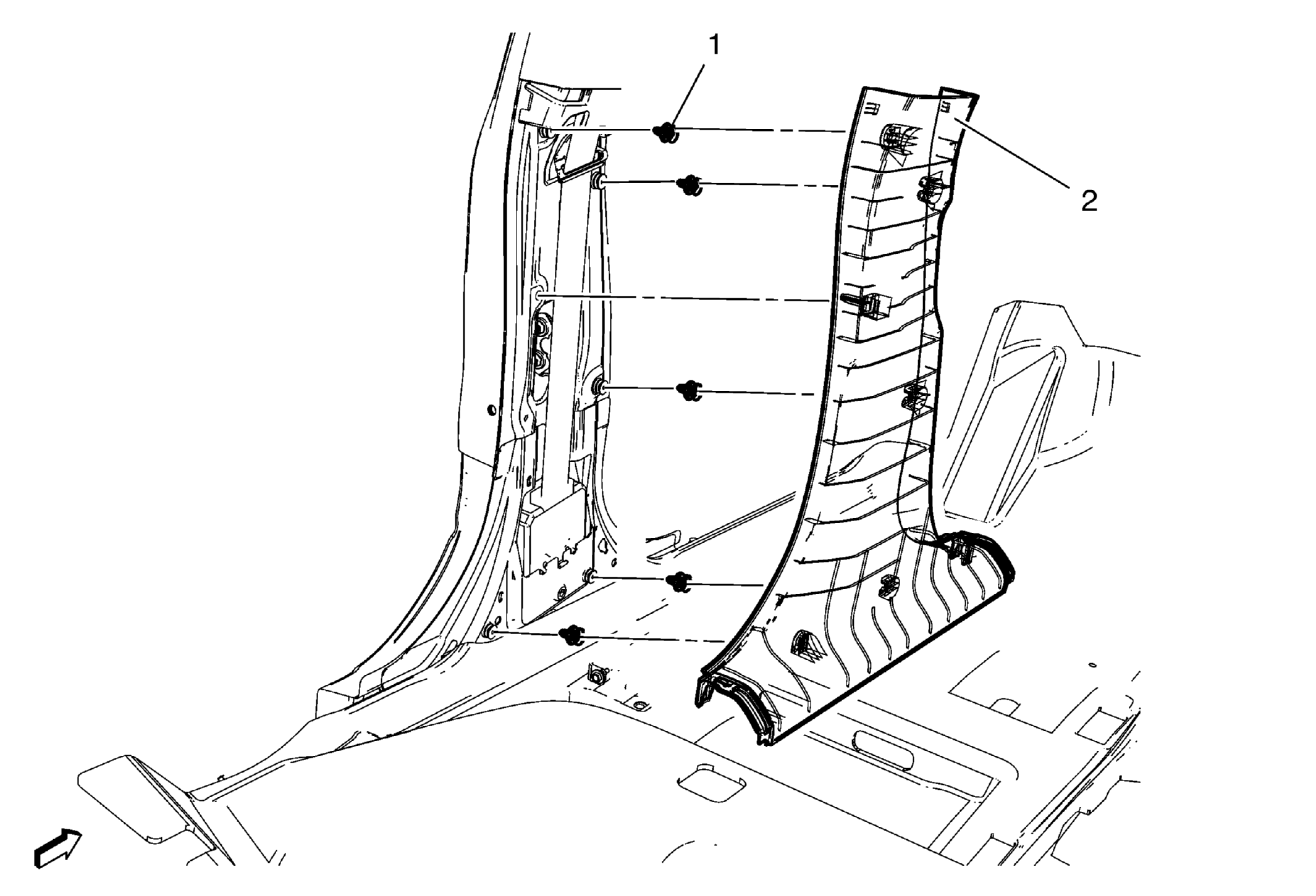

Fig 1: Identifying Center Pillar Lower Garnish Molding & Retainers

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the front side door sill trim plate. Refer to Front Side Door Sill Trim Plate Replacement . Remove the rear side door sill trim plate. Refer to Rear Side Door Sill Trim Plate Replacement .
1	Center Pillar Lower Garnish Molding Retainer (Qty: 5)
2	Center Pillar Lower Garnish Molding

Callout

Component Name

Preliminary Procedures

Remove the front side door sill trim plate. Refer to Front Side Door Sill Trim Plate Replacement .
Remove the rear side door sill trim plate. Refer to Rear Side Door Sill Trim Plate Replacement .

Center Pillar Lower Garnish Molding Retainer (Qty: 5)

Center Pillar Lower Garnish Molding
