Rear Seat Back Latch Replacement (40 Percent Seat)

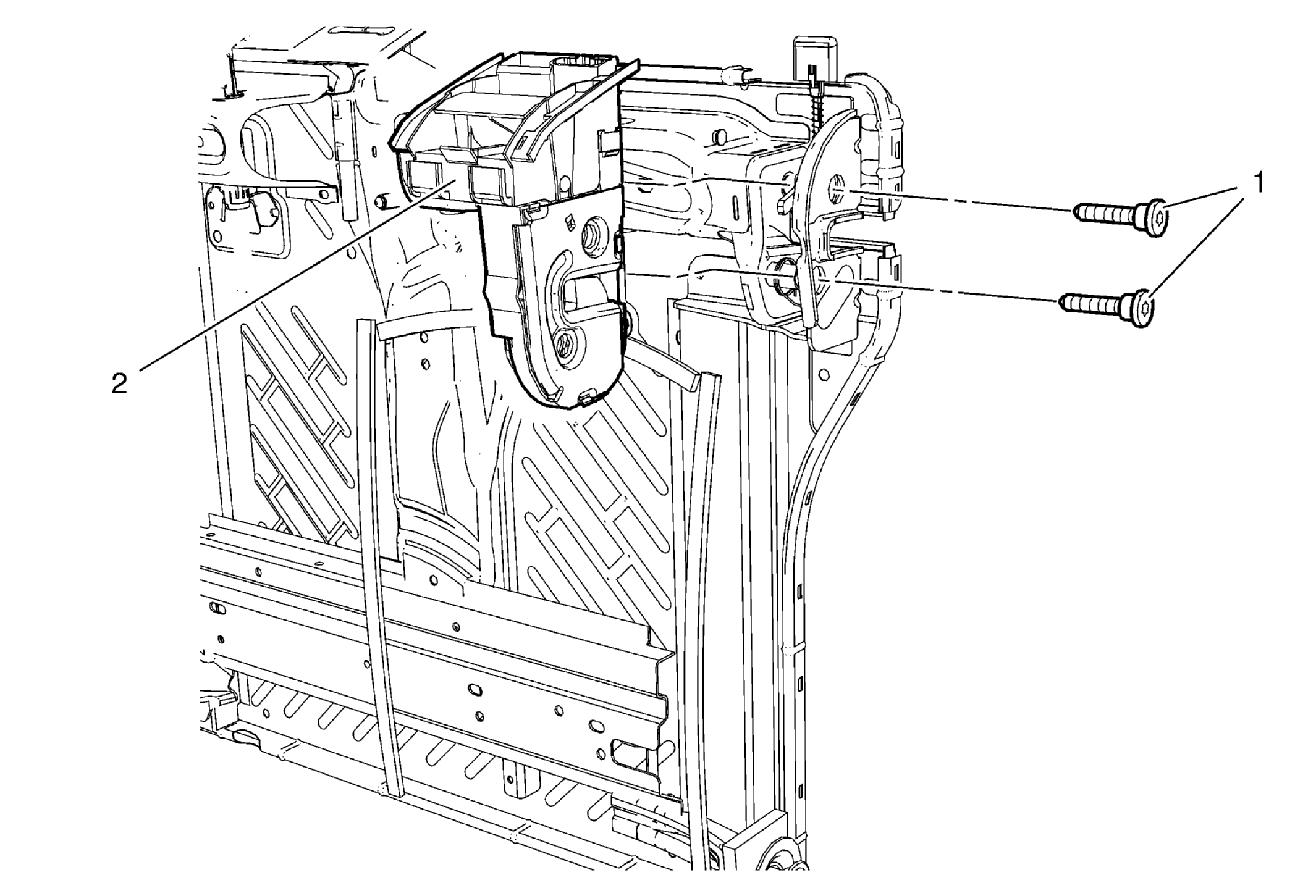

Fig 1: Rear Seat Back Latch (40 Percent Seat)
GM2189299Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat - left side. Refer to Rear Seat Removal and Installation (40 Percent Seat) .
  2. Remove the rear seat back cushion cover and pad - left side. Refer to Rear Seat Back Cushion Cover and Pad Replacement - Left Side .
1 Rear Seat Back Latch Bolt (Qty: 2)
CAUTION: Refer to Fastener Caution .

Tighten
45 N.m (33 lb ft)
2 Rear Seat Back Latch
