Rear Seat Back Cushion Cover and Pad Replacement - Left Side

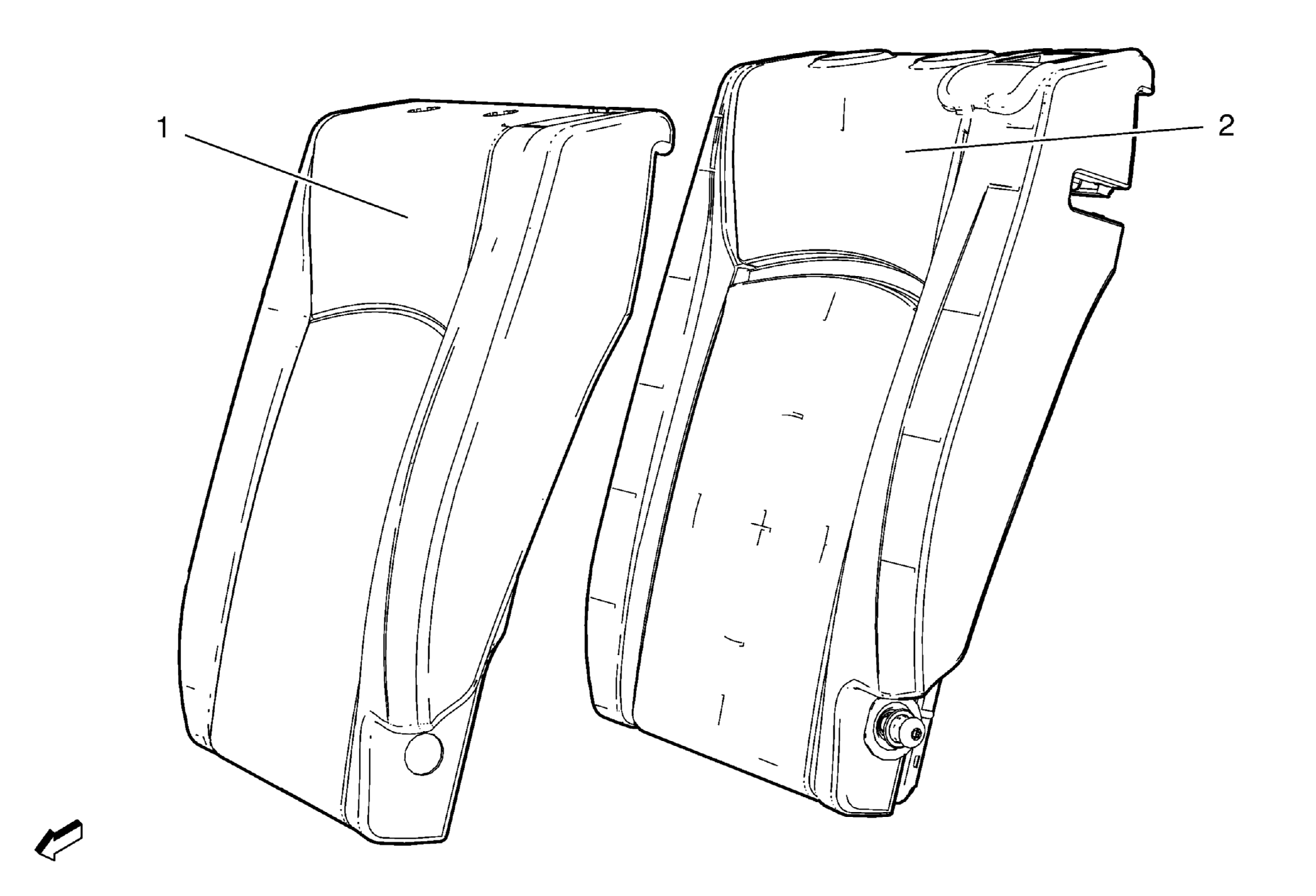

Fig 1: Rear Seat Back Cushion Cover And Pad - Left Side
GM2189052Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedures
Remove the rear seat - left side. Refer to Rear Seat Removal and Installation (40 Percent Seat)  and Rear Seat Removal and Installation (60 Percent Seat) .
1 Rear Seat Back Cushion Cover

Procedure

  1. Remove the staples from the seat back cover.
  2. Remove seat back cushion cover from Velcro.
2 Rear Seat Back Cushion Pad
