Rear Seat Back Cushion Panel Replacement (40 Percent Seat)

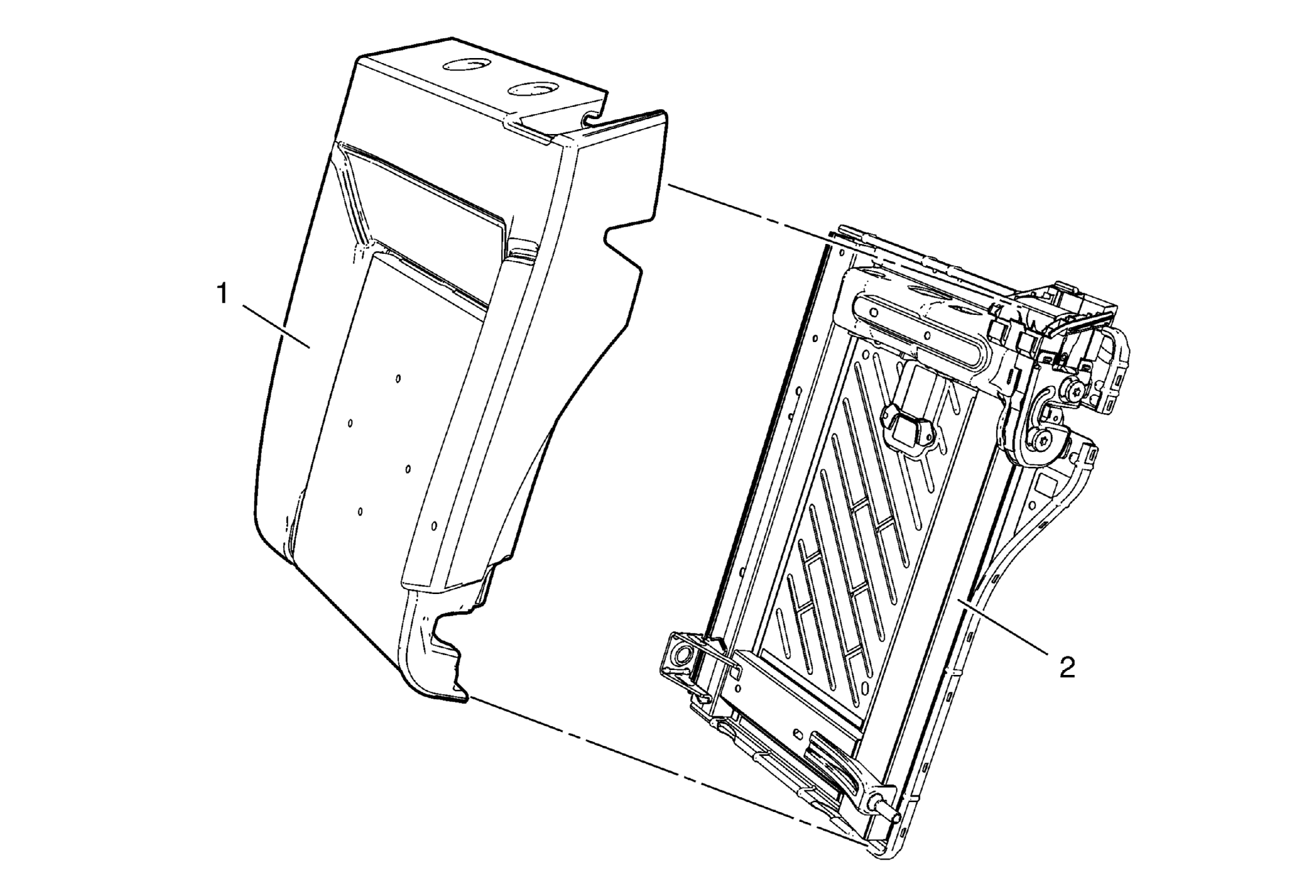

Fig 1: Rear Seat Back Cushion Panel, Cover And Pad (40 Percent Seat)
GM2191379Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the rear seat back. Refer to Rear Seat Removal and Installation (40 Percent Seat) .
  2. Remove the rear seat back cushion latch release knob bezel. Refer to Rear Seat Back Cushion Latch Release Knob Bezel Replacement (40 Percent Seat) .
  3. Remove the rear seat head restraint guide. Refer to Rear Seat Head Restraint Guide Replacement .
  4. Remove the rear seat back cushion pivot support. Refer to Rear Seat Back Cushion Pivot Support Replacement .
1 Rear Seat Back Cushion Cover and Pad
2 Rear Seat Back Cushion Panel
