Outside Rearview Mirror Bracket Replacement

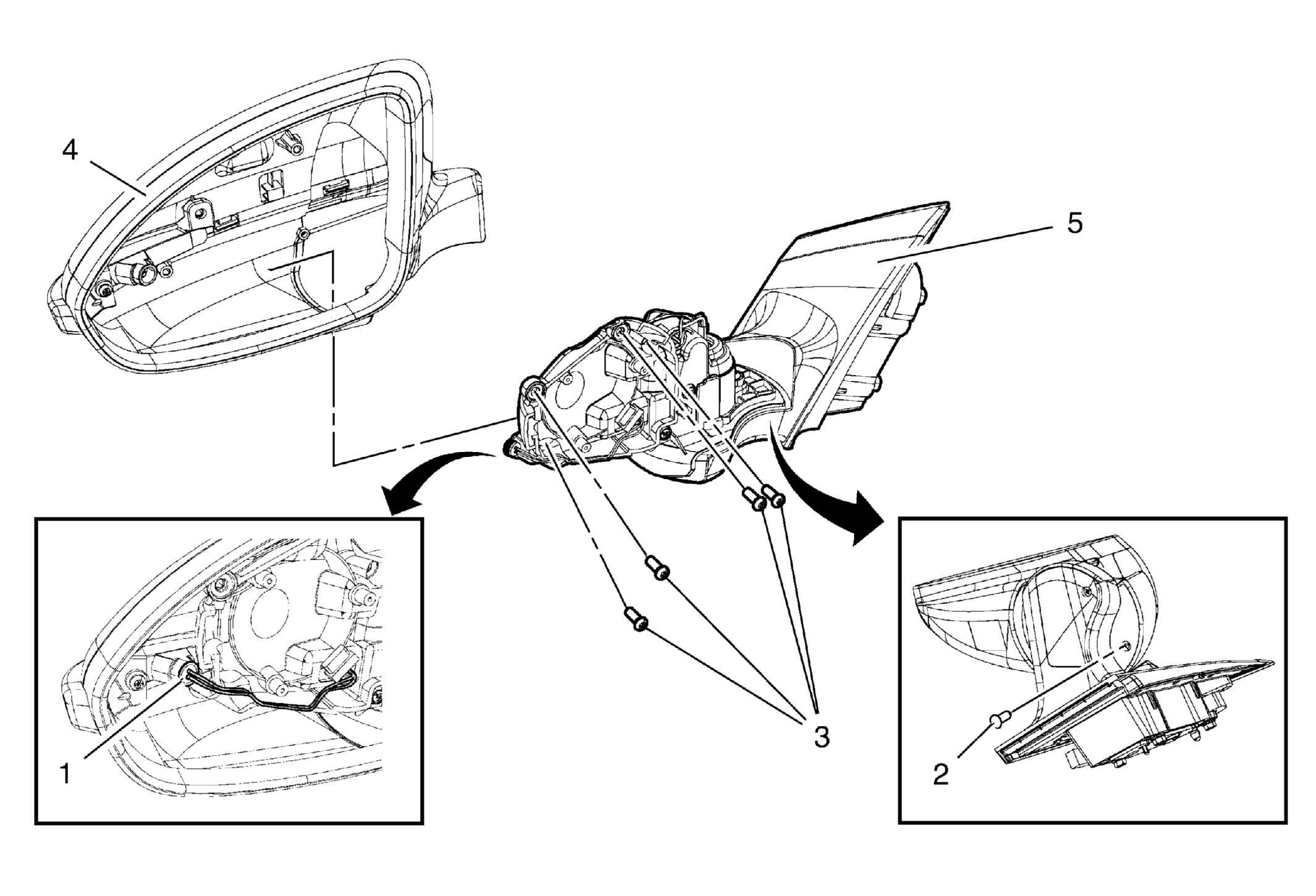

Fig 1: Outside Rearview Mirror Bracket

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Outside Rearview Mirror Replacement Outside Rearview Mirror Glass Replacement Outside Rearview Mirror Inner Actuator Replacement
1	Outside Rearview Mirror Turn Signal Lamp Connector Procedure Disconnect the mirror turn signal lamp connector.
2	Lower Outside Rearview Mirror Housing Screw CAUTION: Refer to:Fastener Caution Tighten 2.5 N.m (22 lb in)
3	Outside Rearview Mirror Housing Screw [4x]
4	Outside Rearview Mirror Housing NOTE: DO NOT remove the mirror housing cover from the mirror housing.
5	Outside Rearview Mirror Bracket Assembly
