Outside Rearview Mirror Inner Actuator Replacement

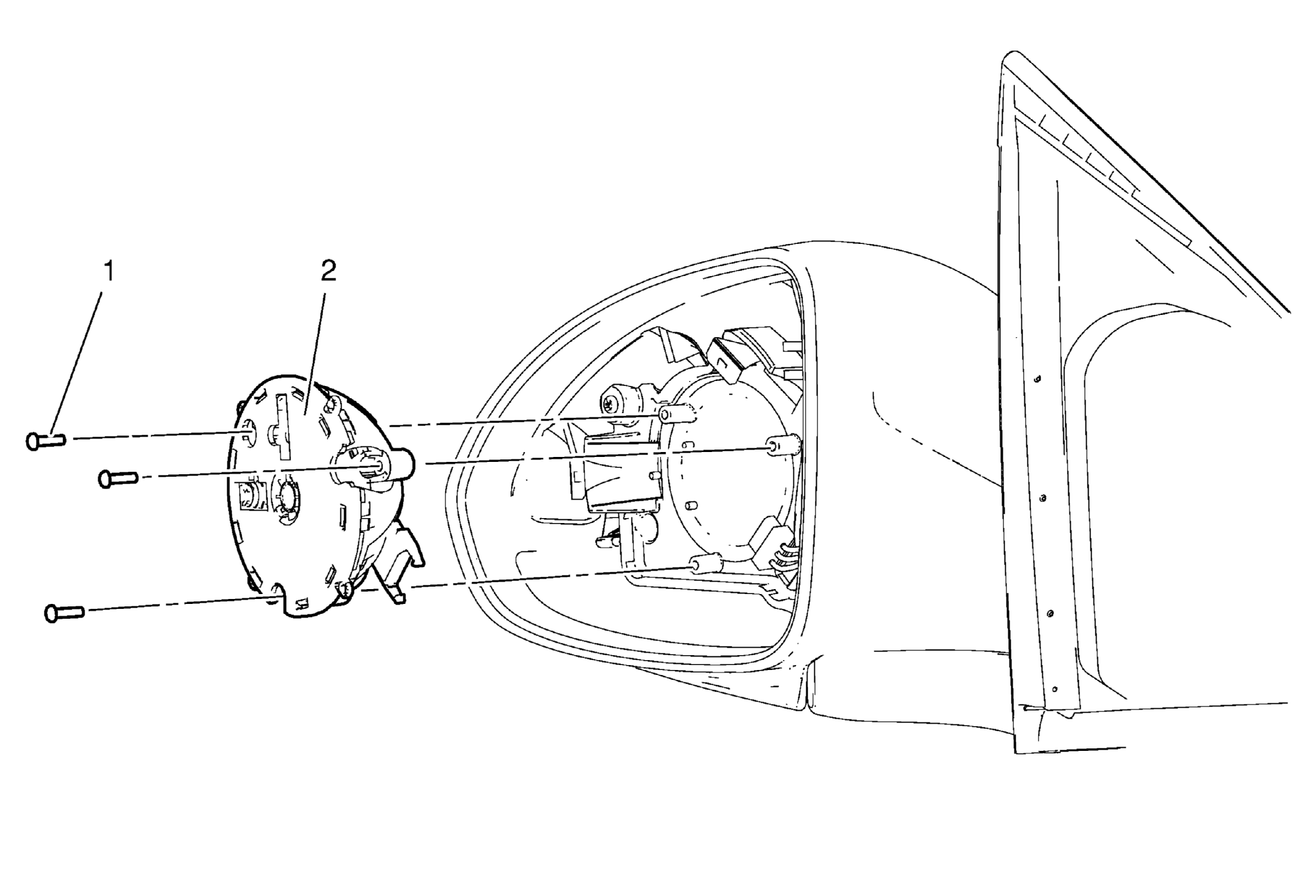

Fig 1: Outside Rearview Mirror Inner Actuator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the outside rearview mirror glass. Refer to Outside Rearview Mirror Glass Replacement .
1	Outside Rearview Mirror Inner Actuator Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Outside Rearview Mirror Inner Actuator Procedure  Disconnect the electrical connector.
