Outside Rearview Mirror Glass Replacement

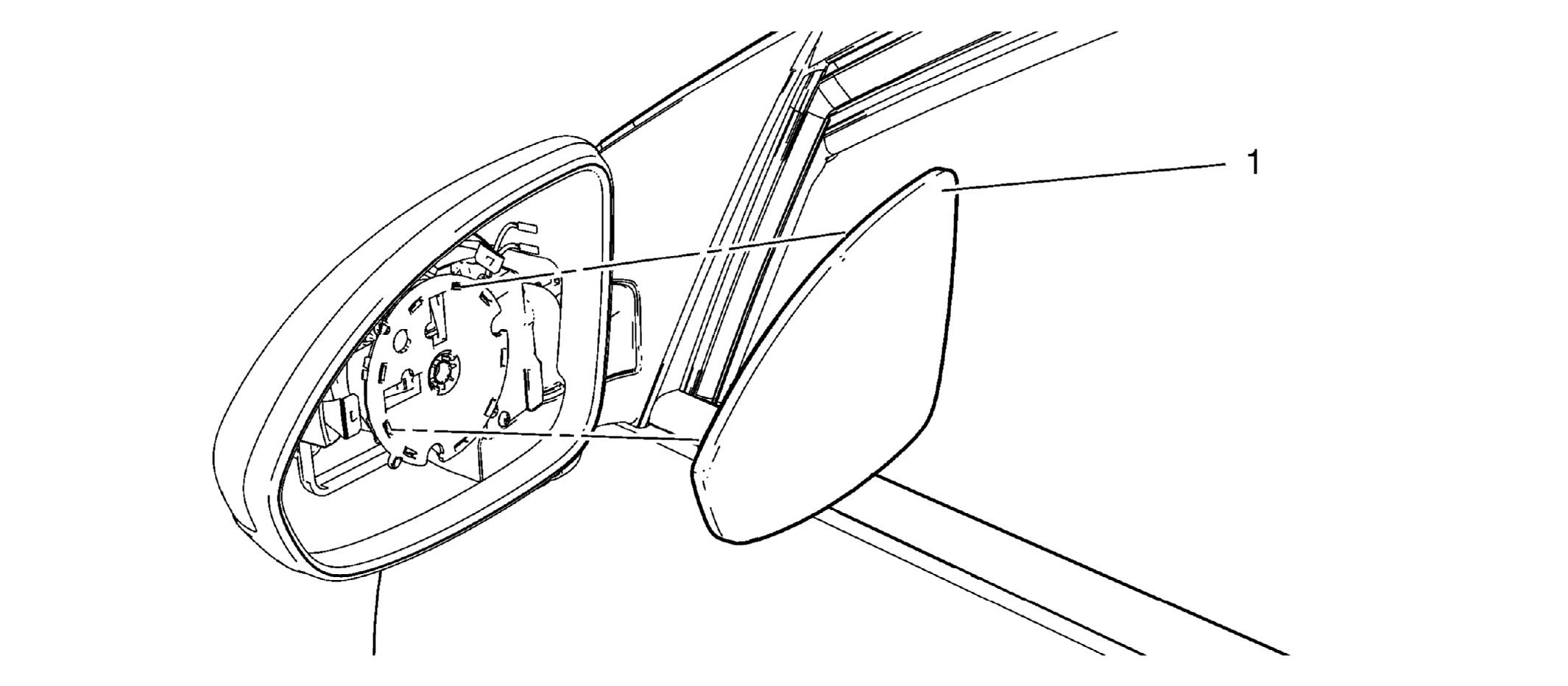

Fig 1: View Of Outside Rearview Mirror Glass
GM2027131Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Outside Rearview Mirror Glass
WARNING: Refer to Glass and Sheet Metal Handling Warning .

Procedure

  1. Release the mirror glass backing from the mirror housing by pulling outward.
  2. Disconnect electrical connector if equipped.
