Instrument Panel Center Upper Molding Replacement

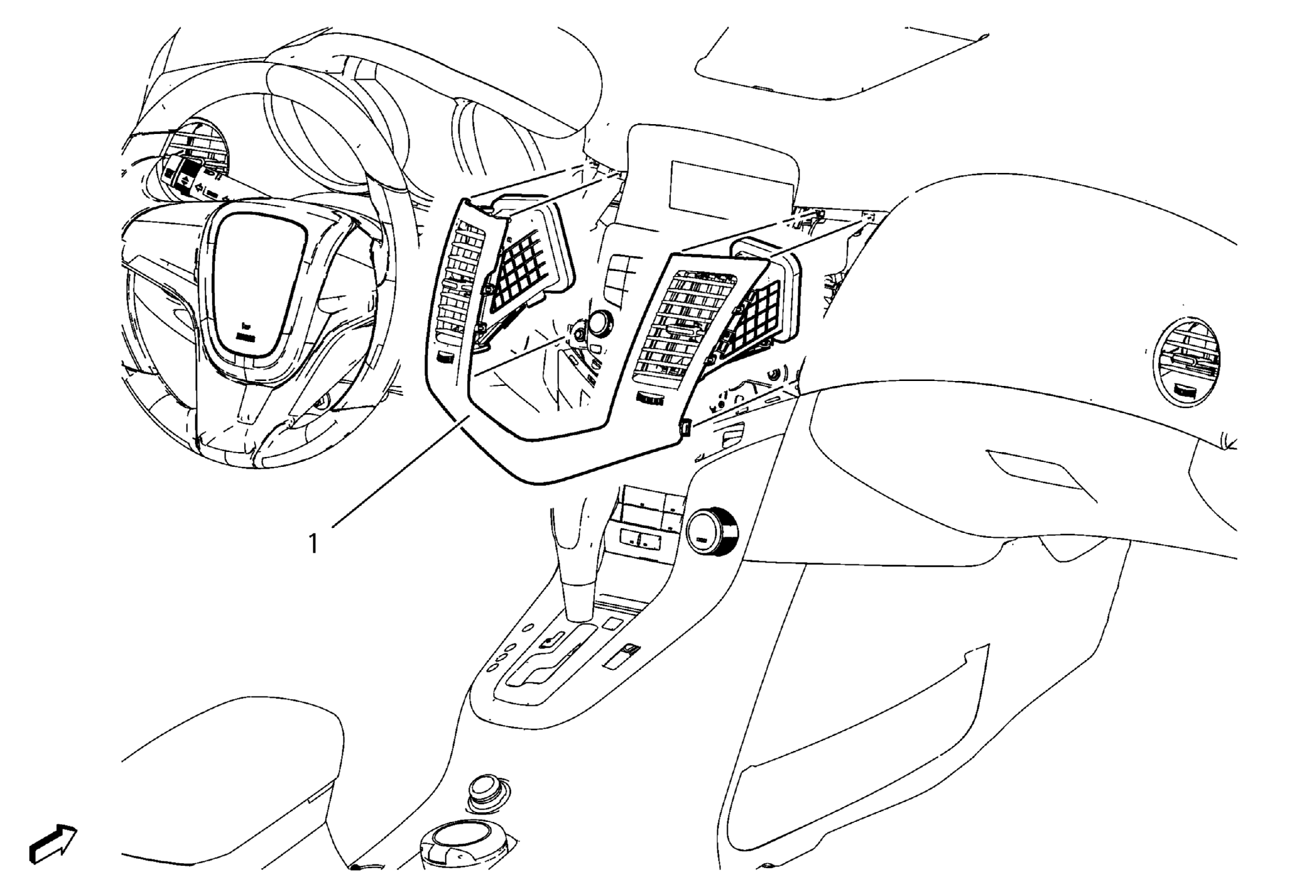

Fig 1: View Of Instrument Panel Center Upper Molding Assembly
GM2027289Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Instrument Panel Center Upper Molding Assembly

Procedure

  1. Use a flat-bladed plastic trim tool to remove the instrument panel center upper molding.
  2. When replacing the instrument panel center upper molding, remove both instrument panel center air outlet. Refer to Instrument Panel Center Air Outlet Replacement .
