Front Floor Console Stowage Tray Replacement

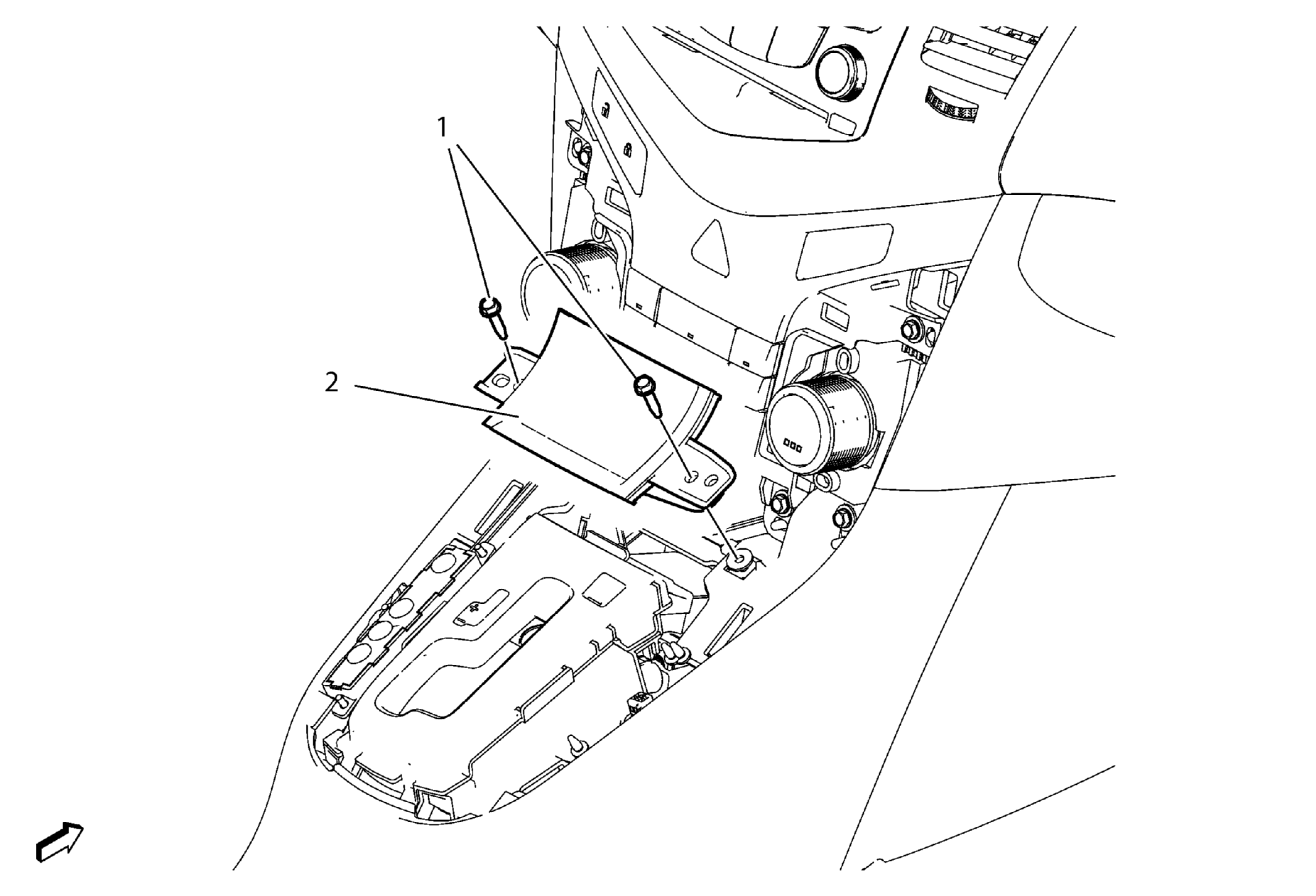

Fig 1: View Of Front Floor Console Storage Tray And Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Remove the automatic or manual transmission control lever trim cover. Refer to Automatic or Manual Transmission Control Lever Trim Cover Replacement .
1	Front Floor Console Storage Tray Screw (Qty: 2) CAUTION: Refer to Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Front Floor Console Storage Tray
