Hood Primary Latch Release Cable Replacement

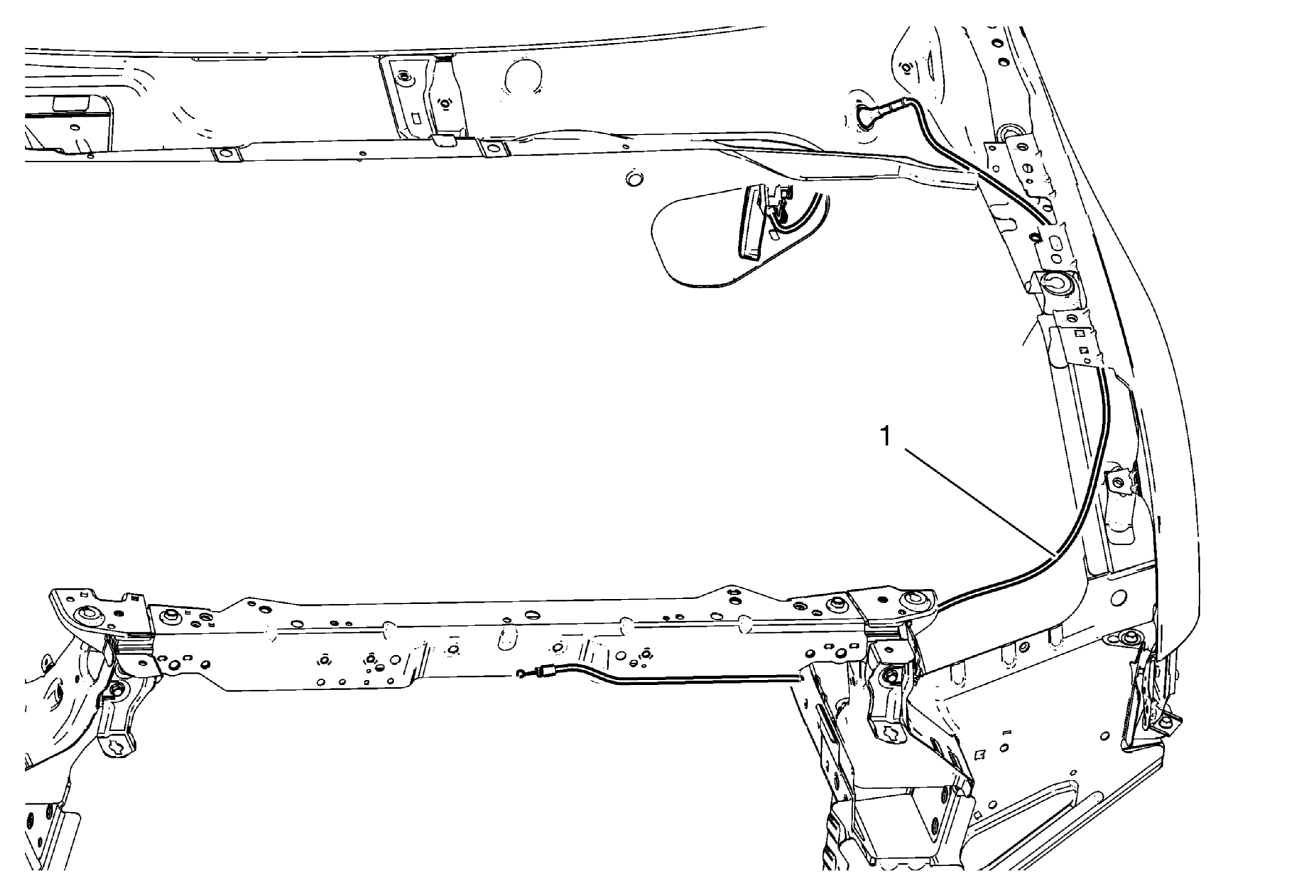

Fig 1: Hood Primary Latch Release Cable
GM2027133Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove hood primary latch release cable handle. Refer to Hood Primary Latch Release Cable Handle Replacement .
  2. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement .
  3. Remove the radiator grille support. Refer to Front Grille Support Replacement .
  4. Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
1 Hood Primary Latch Release Cable
Procedure
To release the hood primary latch release cable, unhook from hood primary and secondary latch.
