Rear Side Door Outside Handle Bracket Replacement

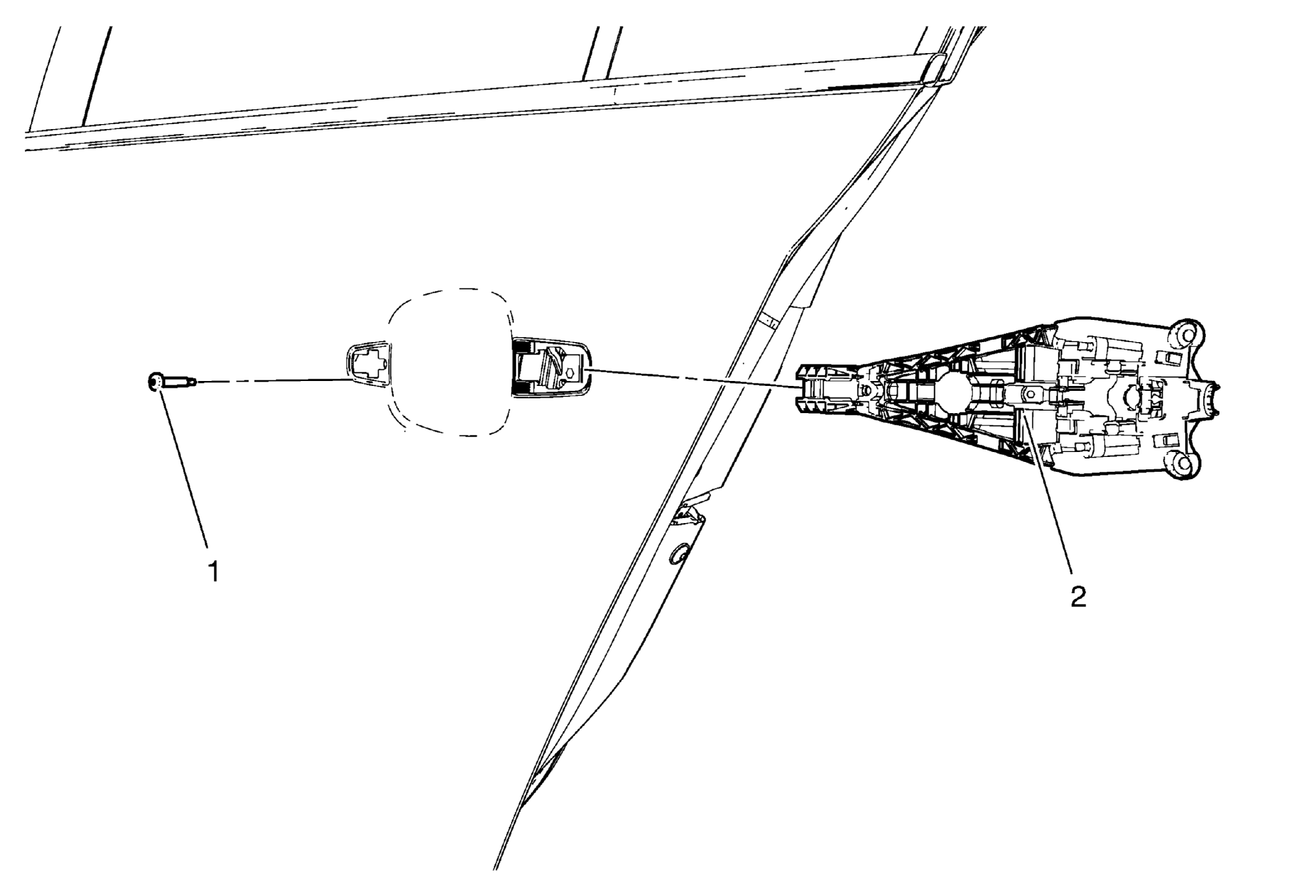

Fig 1: Rear Side Door Outside Handle Bracket And Bolt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door trim. Refer to Rear Side Door Trim Replacement . Remove the rear side door water deflector. Refer to Rear Side Door Water Deflector Replacement . Remove the rear side door outside handle. Refer to Rear Side Door Outside Handle Replacement (without Keyless Entry) and Rear Side Door Outside Handle Replacement (with Keyless Entry) .
1	Rear Side Door Handle Bracket Bolt CAUTION: Refer to Fastener Caution . Tighten 3.5 N.m (31 lb in)
2	Rear Side Door Outside Handle Bracket Procedure Transfer the handle and lock rods to the new outside door handle housing. Unclip the passive entry passive start wiring harness. Inspect the lock, lock cylinder and handle adjustments. Refer to Rear Side Door Outside Handle Rod Adjustment .

Callout

Component Name

Preliminary Procedures

Rear Side Door Handle Bracket Bolt

CAUTION: Refer to Fastener Caution .

Tighten
3.5 N.m (31 lb in)

Rear Side Door Outside Handle Bracket

Procedure

Transfer the handle and lock rods to the new outside door handle housing.
Unclip the passive entry passive start wiring harness.
Inspect the lock, lock cylinder and handle adjustments. Refer to Rear Side Door Outside Handle Rod Adjustment .
