Rear Side Door Trim Replacement

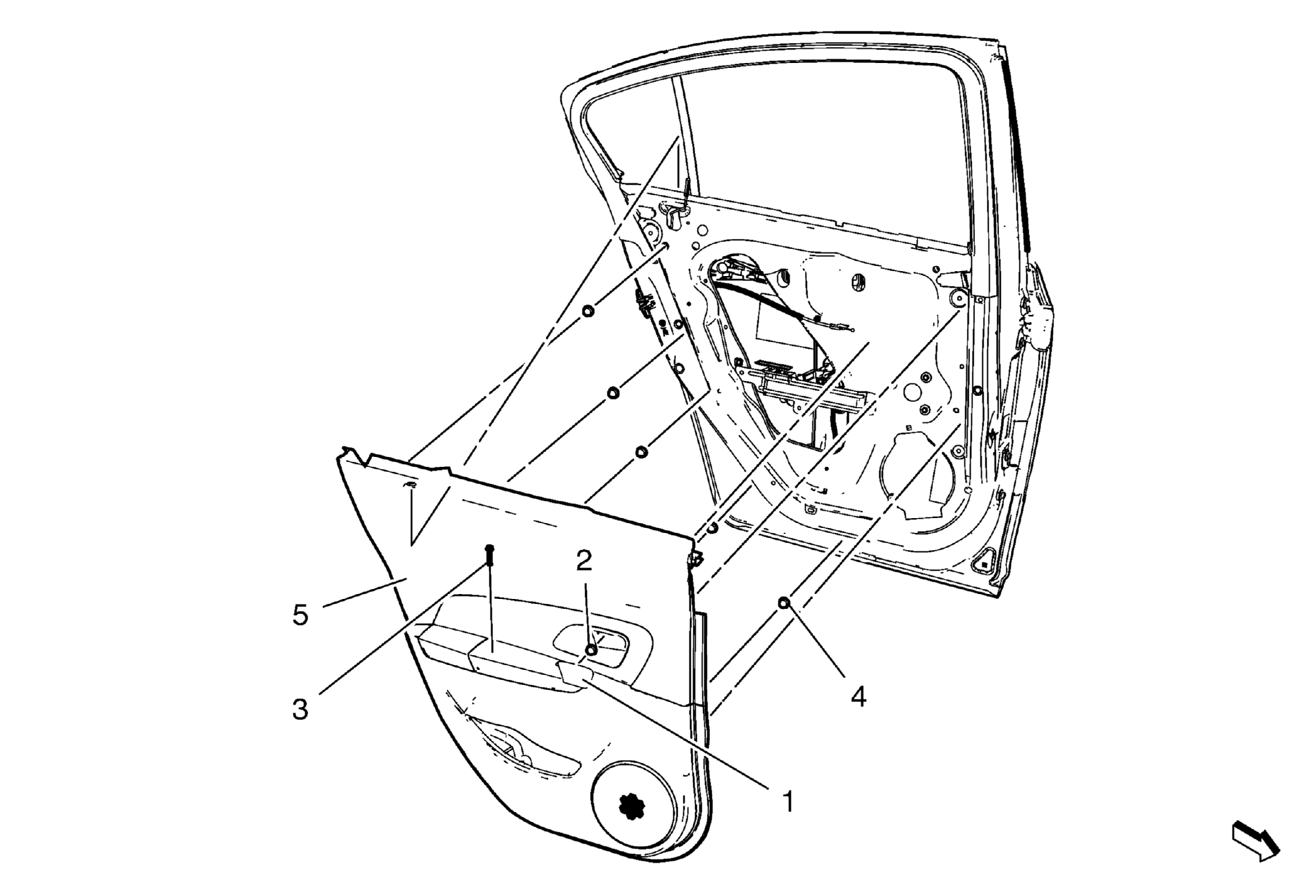

| Callout | Component Name |
|---|---|
| 1 | Rear Side Door Inside Handle Bolt Finish Cap Procedure Pull handle back to remove cap. Use suitable tool to unsnap. |
| 2 | Rear Side Door Inside Handle Screw
CAUTION:
Refer to Fastener Caution
. Tighten 2.5 N.m (22 lb in) |
| 3 | Rear Side Door Pull Handle Screw Tighten 2.5 N.m (22 lb in) |
| 4 | Rear Side Door Trim Clip (Qty: 8)
WARNING:
These retainers/clips MUST be replaced with new retainers/clips anytime they become loose or are removed. Failure to replace these retainers/clips after they become loose or are removed may cause a severe loss of safety in cases of a crash and lead to personal injury. Special Tools BO-38778 Door Trim Panel Clip Remover For equivalent regional tools, refer to Special Tools . |
| 5 | Rear Side Door Trim Assembly Procedure
TIP: Only use BO-38778 remover to disengage the door trim clips from the door. Do not disengage the clips by pulling from the map pocket area, since this can distort the trim panel. |
