Rear Side Door Outside Handle Replacement (without Keyless Entry)

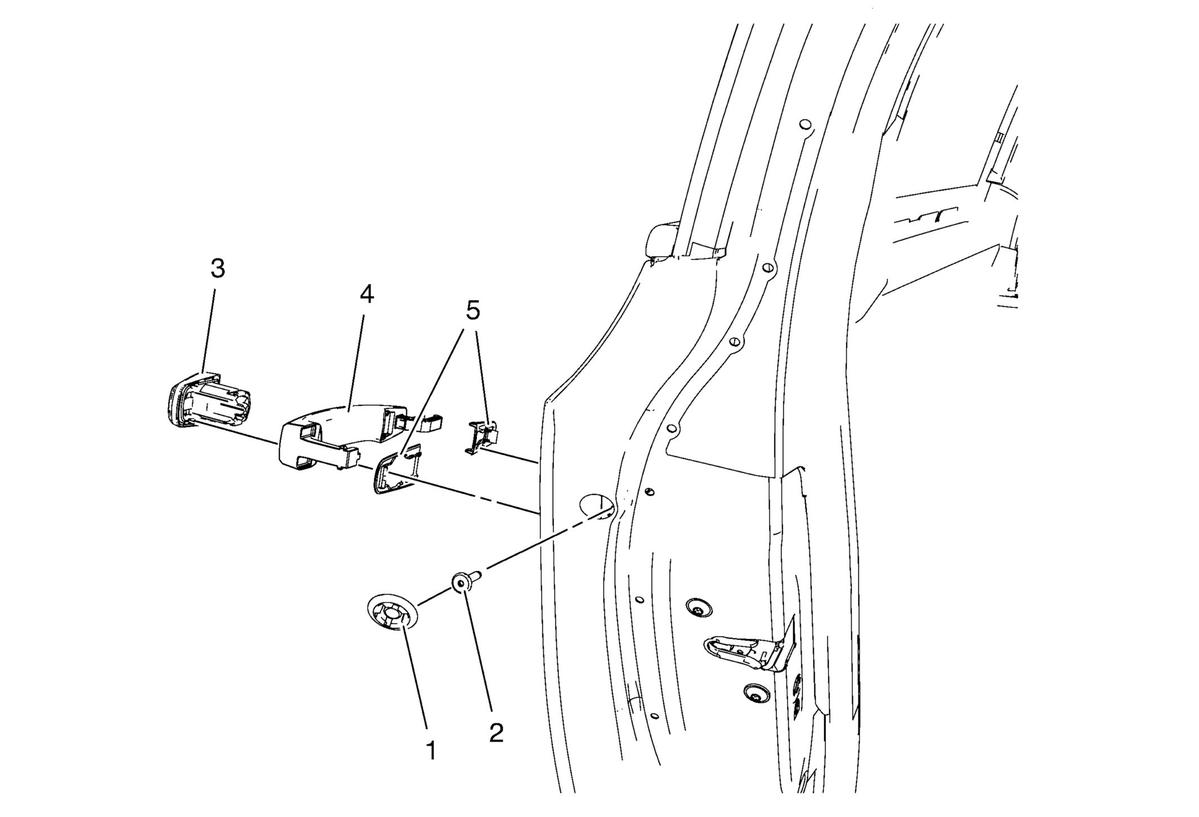

Fig 1: Rear Side Door Outside Handle Components (Without Keyless Entry)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Bolt Access Plug Procedure Use a plastic flat-bladed tool to remove.
2	Rear Side Door Outside Handle Cap Bolt CAUTION: Refer to Fastener Caution . Procedure Pull the outside handle rearward to release it from the handle housing. Tighten 9 N.m (80 lb in)
3	Rear Door Outside Handle Cap
4	Rear Door Outside Handle
5	Rear Door Outside Handle Gasket Procedure Use a plastic flat-bladed tool to remove. Inspect the lock and handle adjustments. Refer to Rear Side Door Outside Handle Rod Adjustment .
