Front Fender Replacement

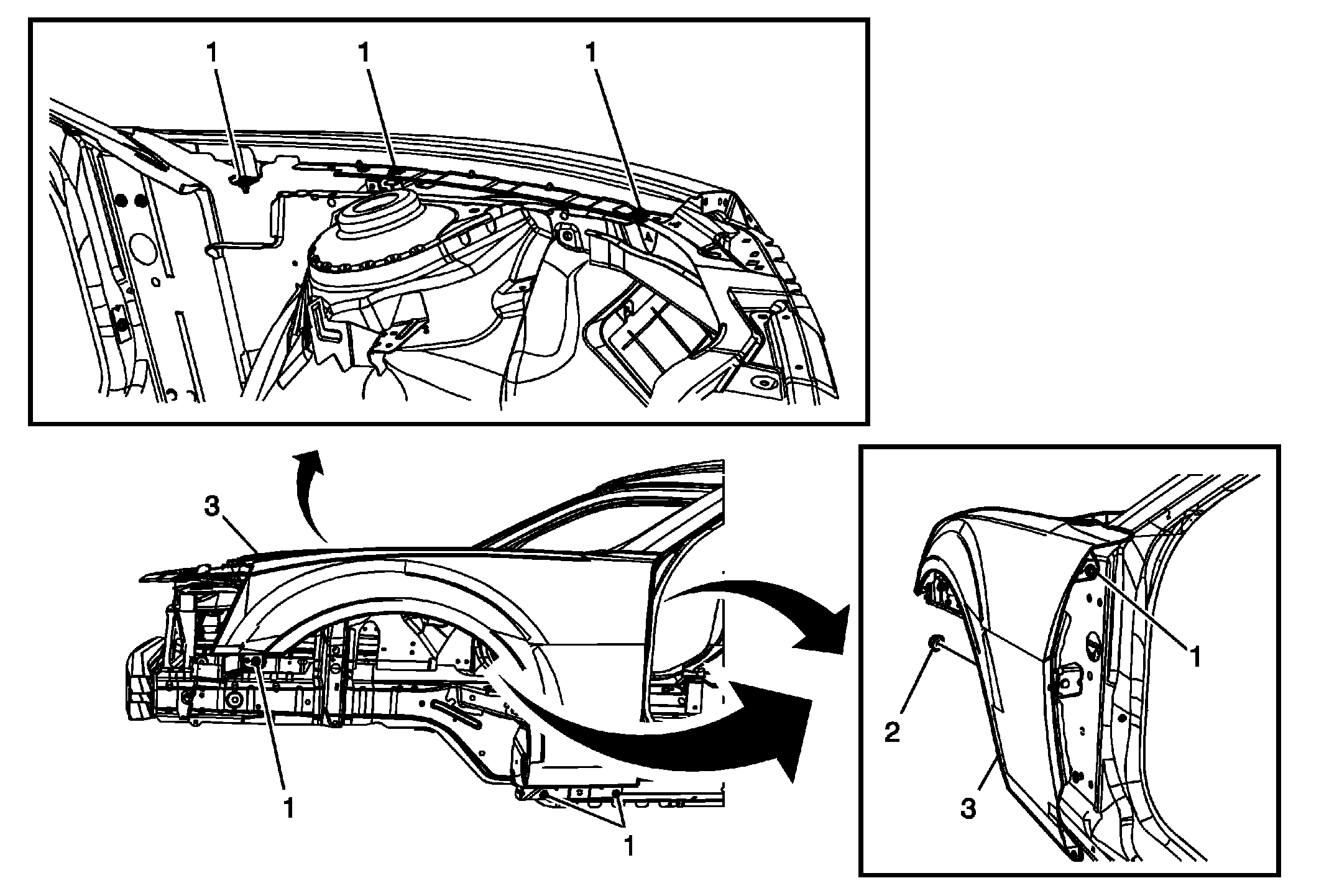

Fig 1: Front Fender, Nut And Bolts
GM2141292Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Base,RS,SS)Front Bumper Fascia Replacement (ZL1)Front Bumper Fascia Replacement (Z28) .
  2. Remove the headlamp. Refer to Headlamp Replacement (without HID)Headlamp Replacement (with HID) .
  3. Remove the front fender flair if equiped. Refer to Front Fender Flare ReplacementFront Fender Flare Replacement (Z28)
  4. Remove the rocker panel molding. Refer to Rocker Panel Molding Replacement (Coupe)Rocker Panel Molding Replacement (Convertible) .
1 Front Fender Bolt (Qty: 7)
CAUTION:

Refer to Fastener Caution .


Tighten
10 N.m (89 lb in)
2 Front Fender Nut
Tighten
10 N.m (89 lb in)
3 Front Fender
