Headlamp Replacement (with HID)

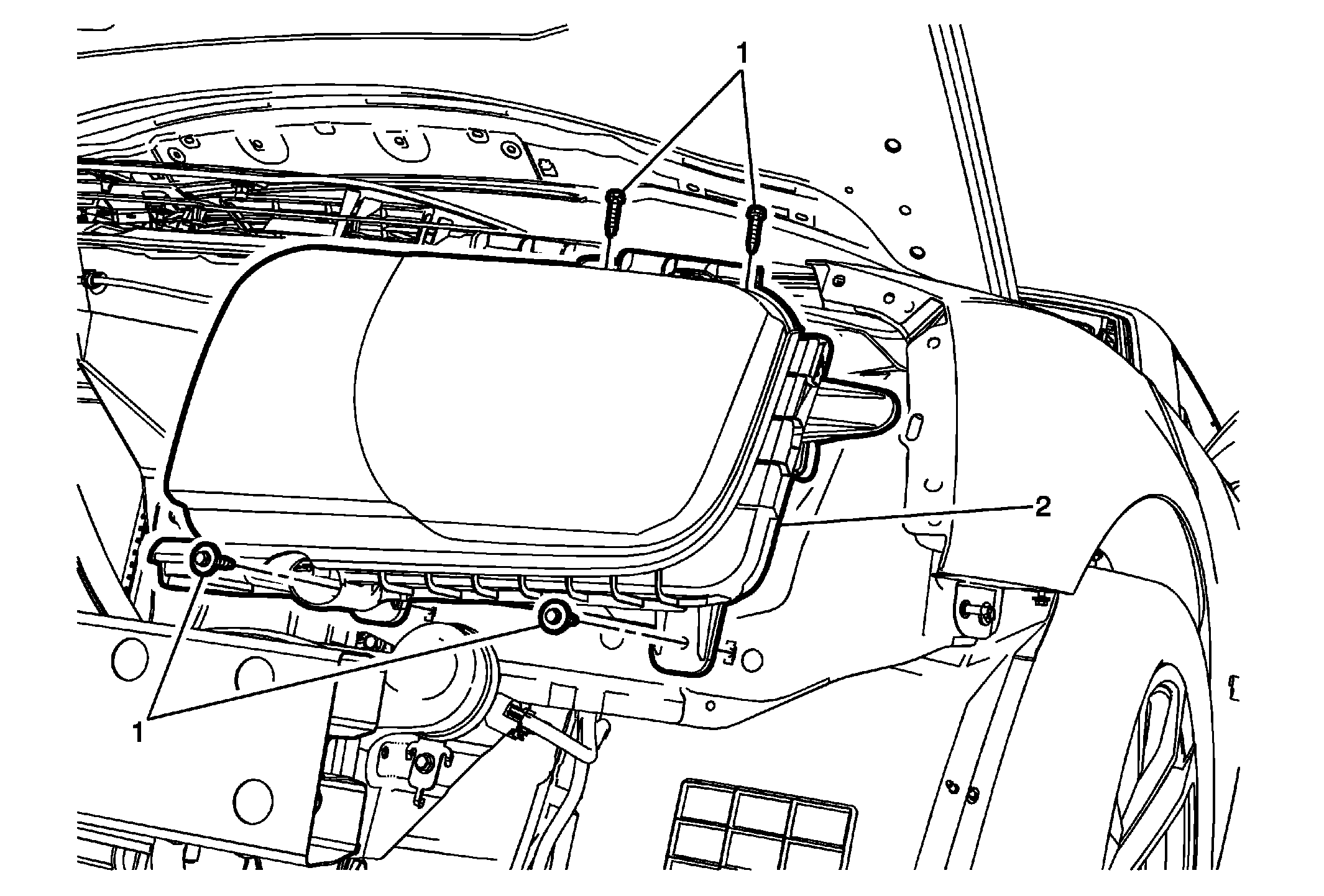

Fig 1: Headlamp (with HID)
GM3288470Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING:

The high intensity discharge system produces high voltage and current. To reduce the risk of severe shocks and burns:

  • Never open the high intensity discharge system ballast or the arc tube assembly starter.
  • Never probe between the high intensity discharge system ballast output connector and the arc tube assembly.
WARNING:

The high intensity discharge system produces high voltage and current. In order to reduce the risk of severe shocks and burns, the battery negative cable must be disconnected any time service work is being performed on or around the high intensity discharge system.

Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Base, RS, SS)Front Bumper Fascia Replacement (ZL1)Front Bumper Fascia Replacement (Z28) .
1 Headlamp Screw (Qty: 4)
CAUTION:

Refer to Fastener Caution .

NOTE:

Tighten the headlamp screws in the mandatory sequence as shown.


Tighten
2.5 N.m (22 lb in)
2 Headlamp

Procedure

  1. Pull the lamp assembly forward and disconnect the forward lamp electrical harness connector from the headlamp.
  2. Transfer all necessary components.
  3. Upon assembly, aim both the headlamps. Refer to Headlamp Aiming .
