Headlamp Replacement (without HID)

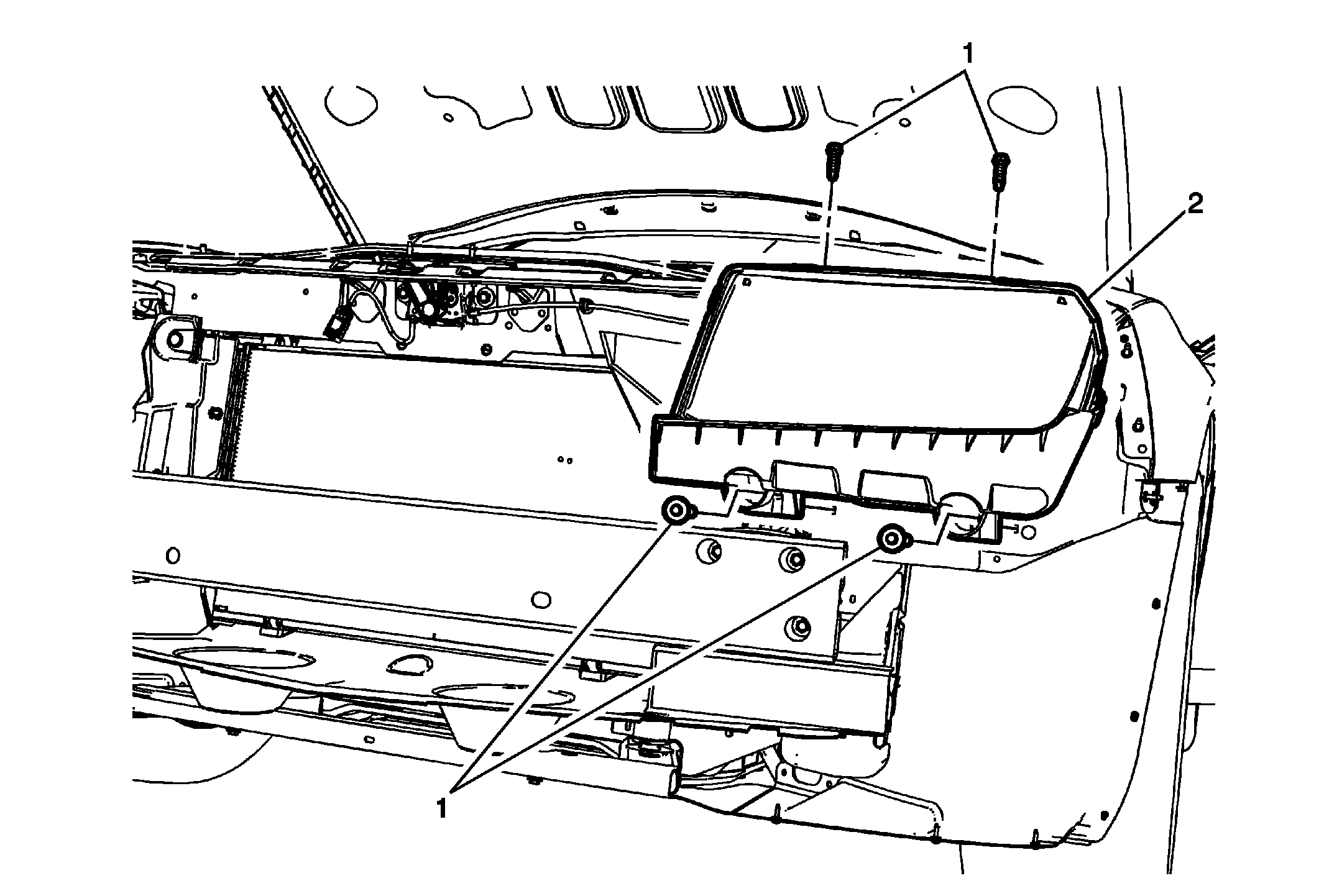

Fig 1: Headlamp (without HID)

GM3286408

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

WARNING:

Refer to Halogen Bulb Warning .

Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Base, RS, SS)Front Bumper Fascia Replacement (ZL1)Front Bumper Fascia Replacement (Z28) .

1

Headlamp Screw (Qty: 4)

CAUTION:

Refer to Fastener Caution .

NOTE:

Tighten the headlamp screws in the mandatory sequence as shown.

Tighten
2.5 N.m (22 lb in)

2

Headlamp

Procedure

Pull the lamp assembly forward and disconnect the forward lamp electrical harness connector from the headlamp.
Transfer all necessary components.
Upon assembly, aim both the headlamps. Refer to Headlamp Aiming .
