Installation Procedure

WARNING: This page is about a different variant/trim than selected.
  1. For supercharger assembly, refer to Supercharger Assemble .
    2. Fig 1: Identifying Supercharger Gaskets & Rivets
    GM2054458Courtesy of GENERAL MOTORS COMPANY
  2. Install the NEW gaskets (2).
  3. Install NEW gasket rivets (1).
    4. Fig 2: Identifying Inlet Area Of Supercharger
    GM2156983Courtesy of GENERAL MOTORS COMPANY
    NOTE:
    • The supercharger, throttle body and sensors may be removed as an assembly. If not servicing the individual components, remove the supercharger as an assembly.
    • Cover the inlet area of the supercharger to prevent dirt or debris contamination onto the rotors.
  4. Cover the supercharger rotors area (1) to prevent dirt or debris contamination onto the rotors.
    5. Fig 3: View Of Supercharger Lift Fixture
    GM2156758Courtesy of GENERAL MOTORS COMPANY
  5. Install the EN-48898  fixture to the supercharger.
  6. Tighten the EN-48898  fixture bolts and nuts until snug.
  7. Using a lifting device, install the supercharger onto the engine. Align the dowel pin at the right front of the supercharger to the cylinder head.
    8. Fig 4: Identifying Supercharger Bolts
    GM2156748Courtesy of GENERAL MOTORS COMPANY
  8. Apply a 5 mm (0.2 in) band of threadlocker to the threads of the bolts. Refer to Adhesives, Fluids, Lubricants, and Sealers .
  9. Install the supercharger bolts (1).
    10. Fig 5: Identifying Supercharger Bolt Tightening Sequence
    GM2156871Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  10. Tighten the bolts.
    1. Tighten the bolts a first pass in sequence to 5 N.m (44 lb in).
    2. Tighten the bolts a final pass in sequence to 10 N.m (89 lb in).
    11. Fig 6: Identifying Positive Crankcase Ventilation Dirty Air Hose
    GM2156737Courtesy of GENERAL MOTORS COMPANY
  11. Install the PCV dirty air hose (1) to the valley cover and supercharger.

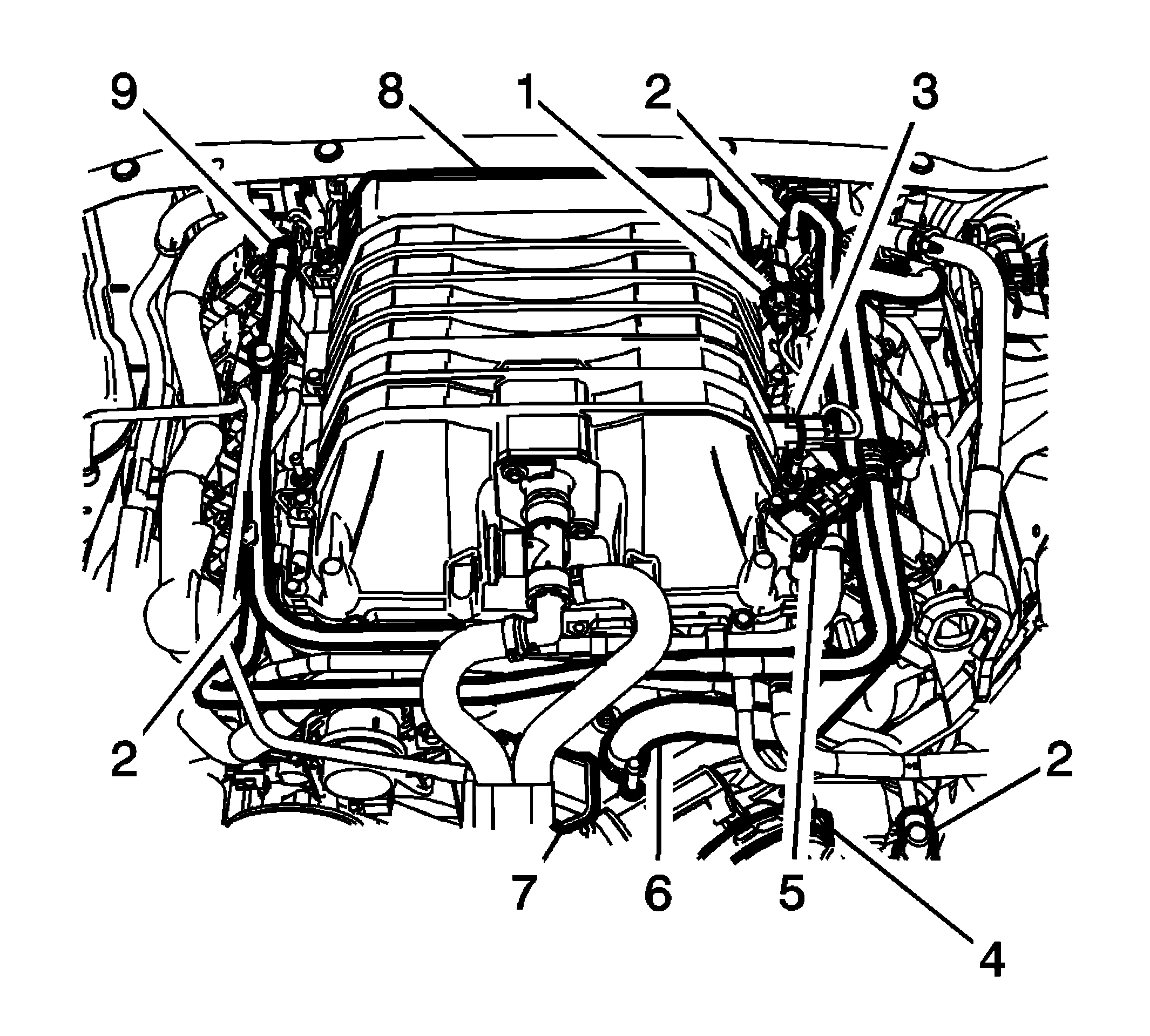

    12. Fig 7: Supercharger & Fuel System Components
    GM2734294Courtesy of GENERAL MOTORS COMPANY
  12. Install the charge air cooler cover. Refer to Charge Air Cooler Cover Replacement .
  13. Install the fuel injection fuel rail assembly (9). Refer to Fuel Injection Fuel Rail Assembly Replacement (L99, LS3, LS7)Fuel Injection Fuel Rail Assembly Replacement (LSA)Fuel Injection Fuel Rail Assembly Replacement (LS7) .
  14. Connect the brake booster vacuum hose (6).
  15. Connect the connector and the EVAP line to the canister purge solenoid (7).
  16. Connect the air cleaner outlet duct and tighten the clamp (4).
  17. Connect the supercharger pressure (1), intake air temperature (3) and barometric pressure (5) sensors.
  18. Install and connect the PCV fresh air tube (2).
  19. Install the intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
  20. Install the supercharger belt. Refer to Supercharger Belt Replacement .
