Supercharger Belt Replacement

WARNING: This page is about a different variant/trim than selected.

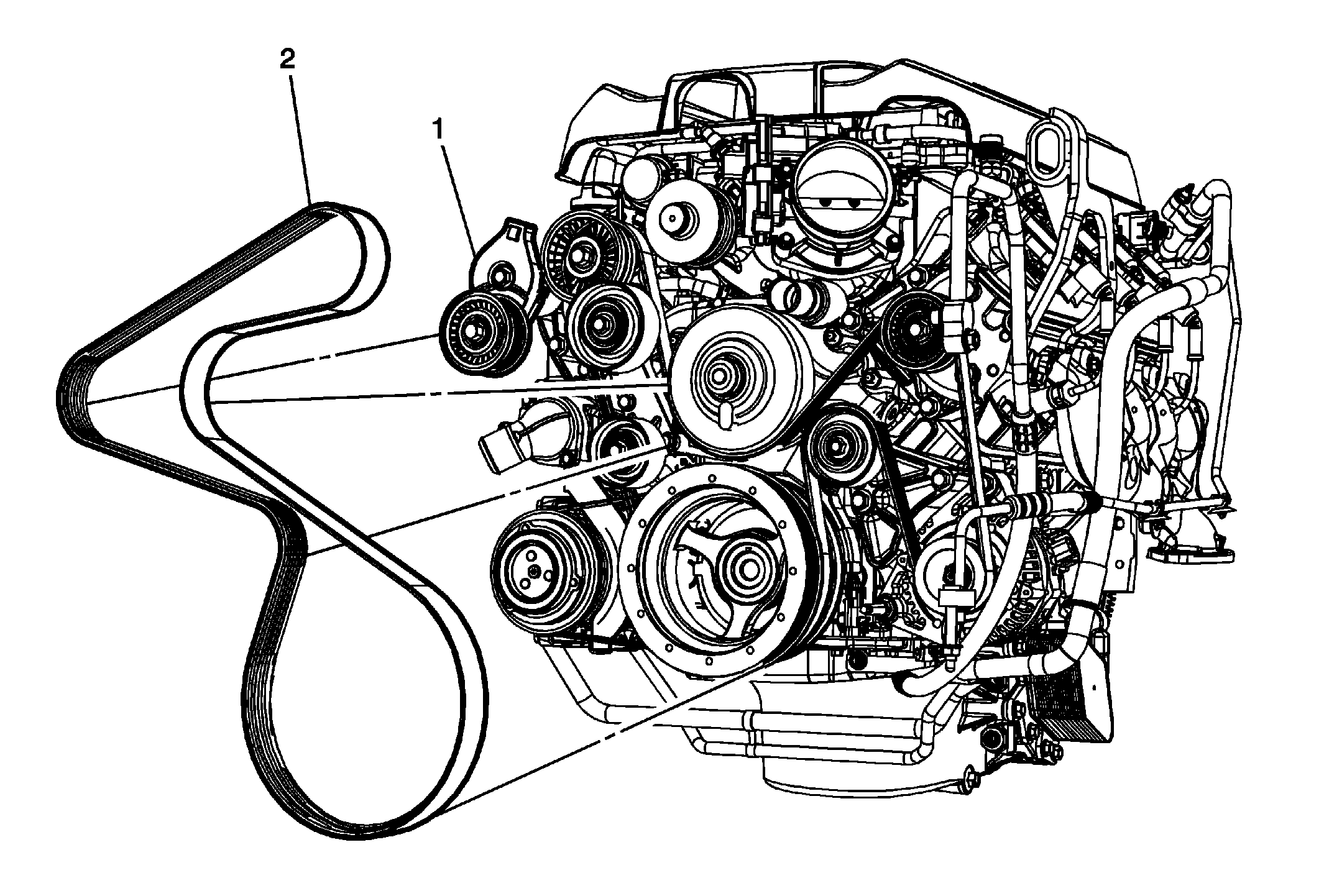

Fig 1: Supercharger Drive Belt Routing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Supercharger Tensioner Procedure Use a 1/2 inch breaker bar to rotate the supercharger belt tensioner counter clockwise. Slide the belt off the upper supercharger idler pulley.
2	Supercharger Belt Procedure Clean and inspect the supercharger belt surfaces of all the pulleys. Inspect the supercharger belt for correct alignment.

Callout

Component Name

Supercharger Tensioner

Procedure

Use a 1/2 inch breaker bar to rotate the supercharger belt tensioner counter clockwise.
Slide the belt off the upper supercharger idler pulley.

Supercharger Belt

Procedure
