Charge Air Cooler Cover Replacement

WARNING: This page is about a different variant/trim than selected.

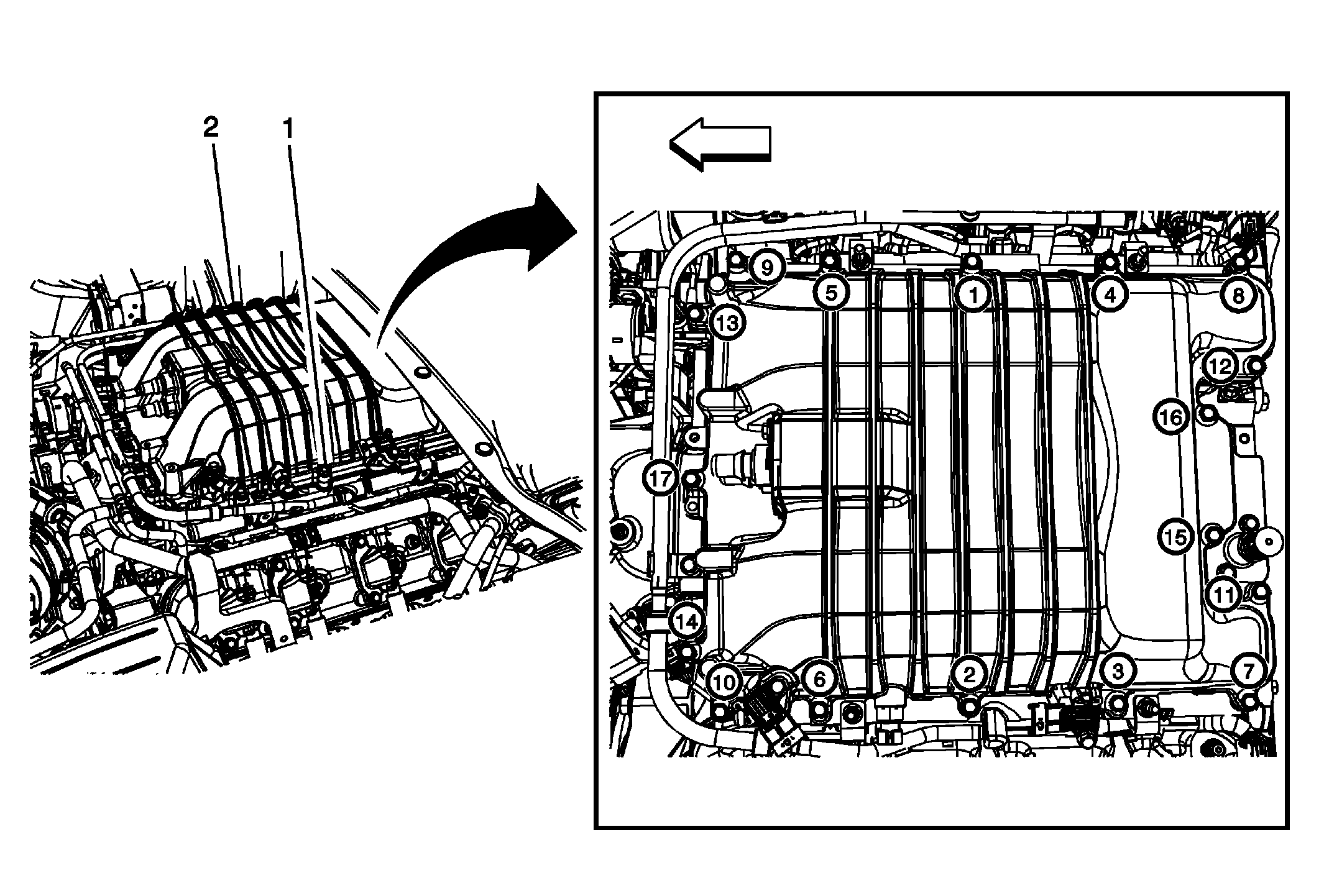

Fig 1: Charge Air Cooler Cover & Fasteners
GM2718369Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the front intake manifold cover. Refer to Intake Manifold Cover Replacement - Front .
  2. Remove the positive crankcase ventilation hose/pipe/tube. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Dirty Air - L99, LS3, LSA) Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Clean Air - L99, LS3, LSA) Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Clean Air - LS7) Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Dirty Air - LS7) .
  3. Remove the charge air cooler coolant hoses from the cooler. Refer to Charge Air Cooler Coolant Hose Replacement (LSA) .
1 Charge Air Cooler Cover Fastener (Qty: 16)
CAUTION:

Refer to Fastener Caution .


Procedure
To access the rear charge air cooler cover bolts the engine will need to be lowered. The front suspension crossmember fasteners will need to be loosened 3/4 of the way to allow the assembly to be lower approximately 25 mm (1 in). Refer to Drivetrain and Front Suspension Frame Removal and Installation .
NOTE:

Only Step 1 and 17 need to be completed to lower the engine and front suspension crossmember using a suitable jack.


Tighten
  1. First pass to 5 N.m (44 lb in).
  2. Final pass to 10 N.m (89 lb in).
2 Charge Air Cooler Cover

Procedure

  1. Do not reuse old gasket a NEW gasket must be used.
  2. Disconnect any electrical connectors.
