Supercharger Belt Tensioner Bracket Replacement

WARNING: This page is about a different variant/trim than selected.

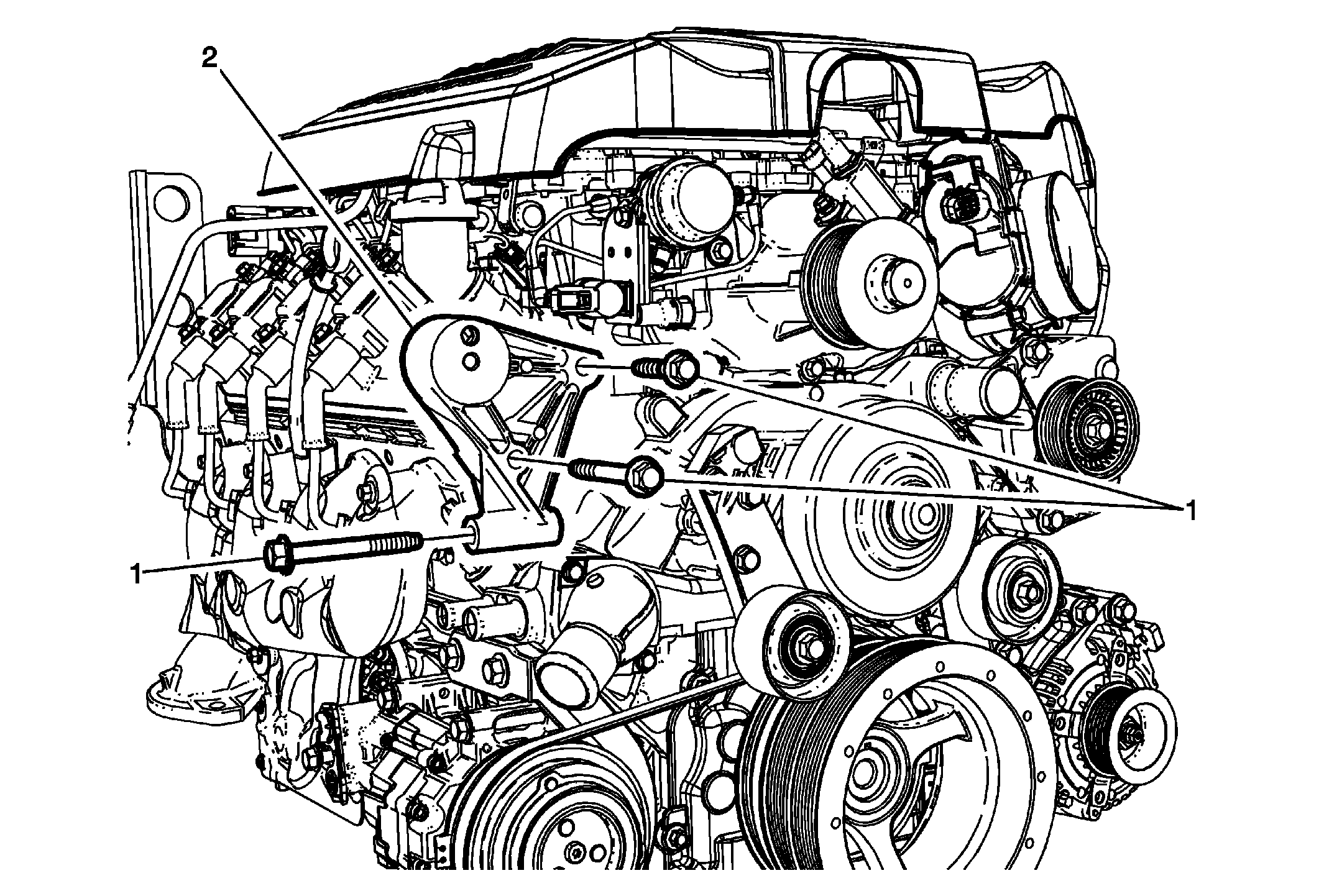

Fig 1: Supercharger Belt Tensioner Bracket & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the supercharger belt tensioner. Refer to Supercharger Belt Tensioner Replacement . Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement - Accessory (LSA) .
1	Supercharger Belt Tensioner Bracket Fastener (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
2	Supercharger Belt Tensioner Bracket

Callout

Component Name

Preliminary Procedures

Remove the supercharger belt tensioner. Refer to Supercharger Belt Tensioner Replacement .
Remove the drive belt tensioner. Refer to Drive Belt Tensioner Replacement - Accessory (LSA) .

Supercharger Belt Tensioner Bracket Fastener (Qty: 3)

CAUTION:

Tighten
58 N.m (43 lb ft)

Supercharger Belt Tensioner Bracket
