Drive Belt Tensioner Replacement - Accessory (LSA)

WARNING: This page is about a different variant/trim than selected.

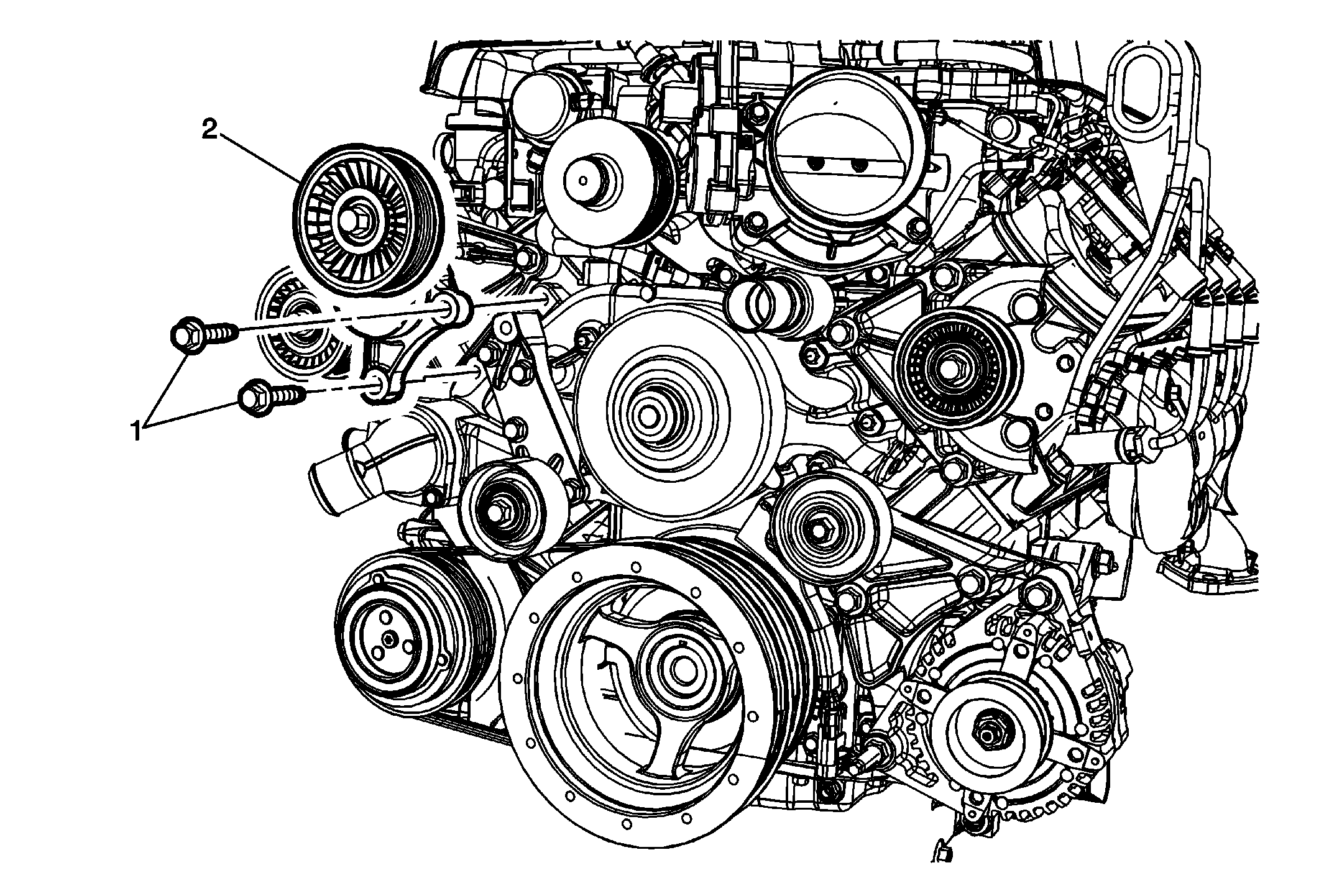

Fig 1: Drive Belt Tensioner & Fasteners - Accessory (LSA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the supercharger belt. Refer to Supercharger Belt Replacement . Remove the accessory drive belt. Refer to Drive Belt Replacement - Accessory (LSA) . Remove the upper supercharger belt idler pulley. Refer to Supercharger Belt Idler Pulley Replacement .
1	Drive Belt Tensioner Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 58 N.m (43 lb ft)
2	Drive Belt Tensioner

Callout

Component Name

Preliminary Procedures

Remove the supercharger belt. Refer to Supercharger Belt Replacement .
Remove the accessory drive belt. Refer to Drive Belt Replacement - Accessory (LSA) .
Remove the upper supercharger belt idler pulley. Refer to Supercharger Belt Idler Pulley Replacement .

Drive Belt Tensioner Fastener (Qty: 2)

CAUTION:

Tighten
58 N.m (43 lb ft)

Drive Belt Tensioner
