Supercharger Belt Tensioner Replacement

WARNING: This page is about a different variant/trim than selected.

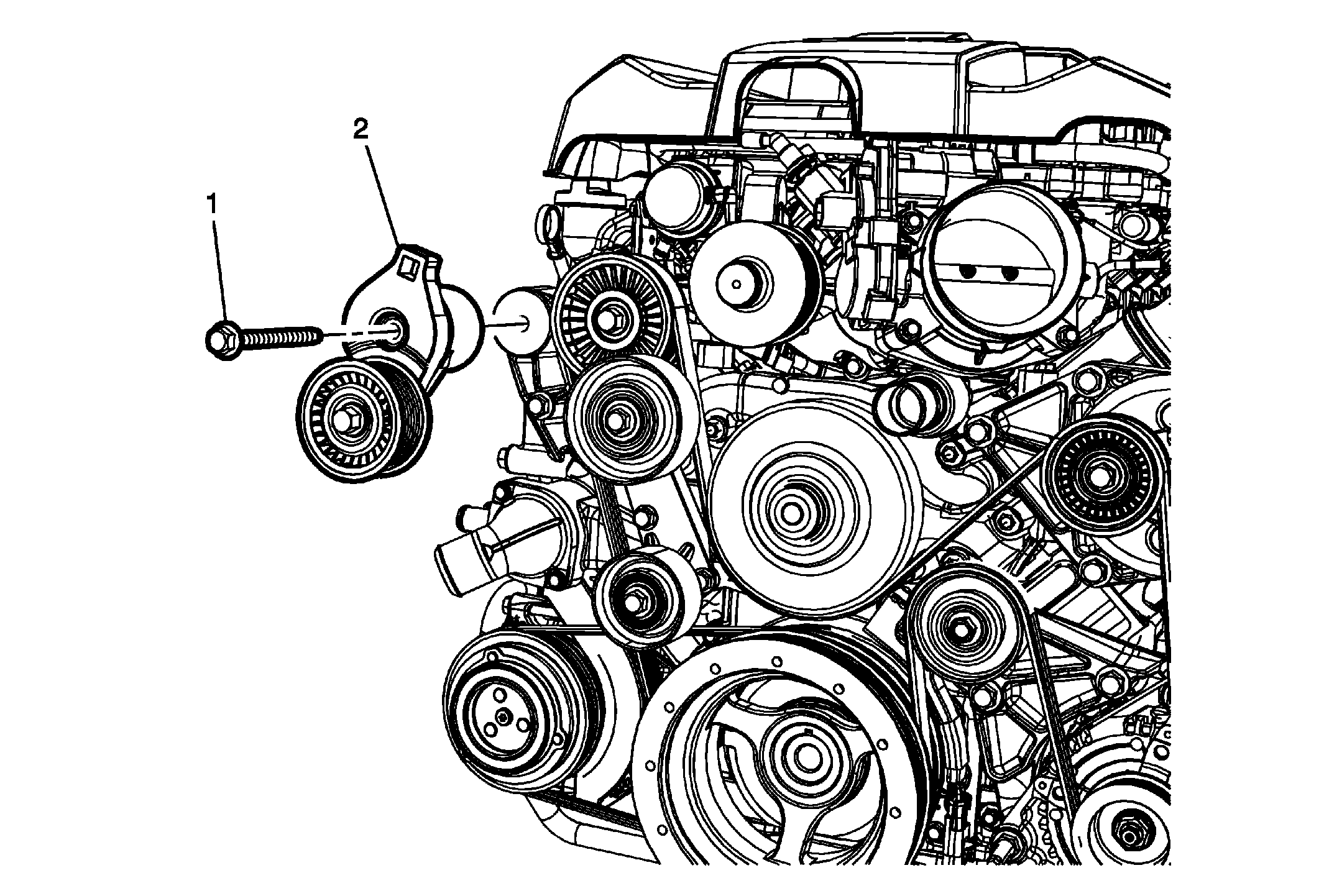

Fig 1: Supercharger Belt Tensioner & Fastener
GM2718381Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the supercharger belt. Refer to Supercharger Belt Replacement .
1 Supercharger Belt Tensioner Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
58 N.m (43 lb ft)
2 Supercharger Belt Tensioner
