Installation Procedure

WARNING: This page is about a different variant/trim than selected.

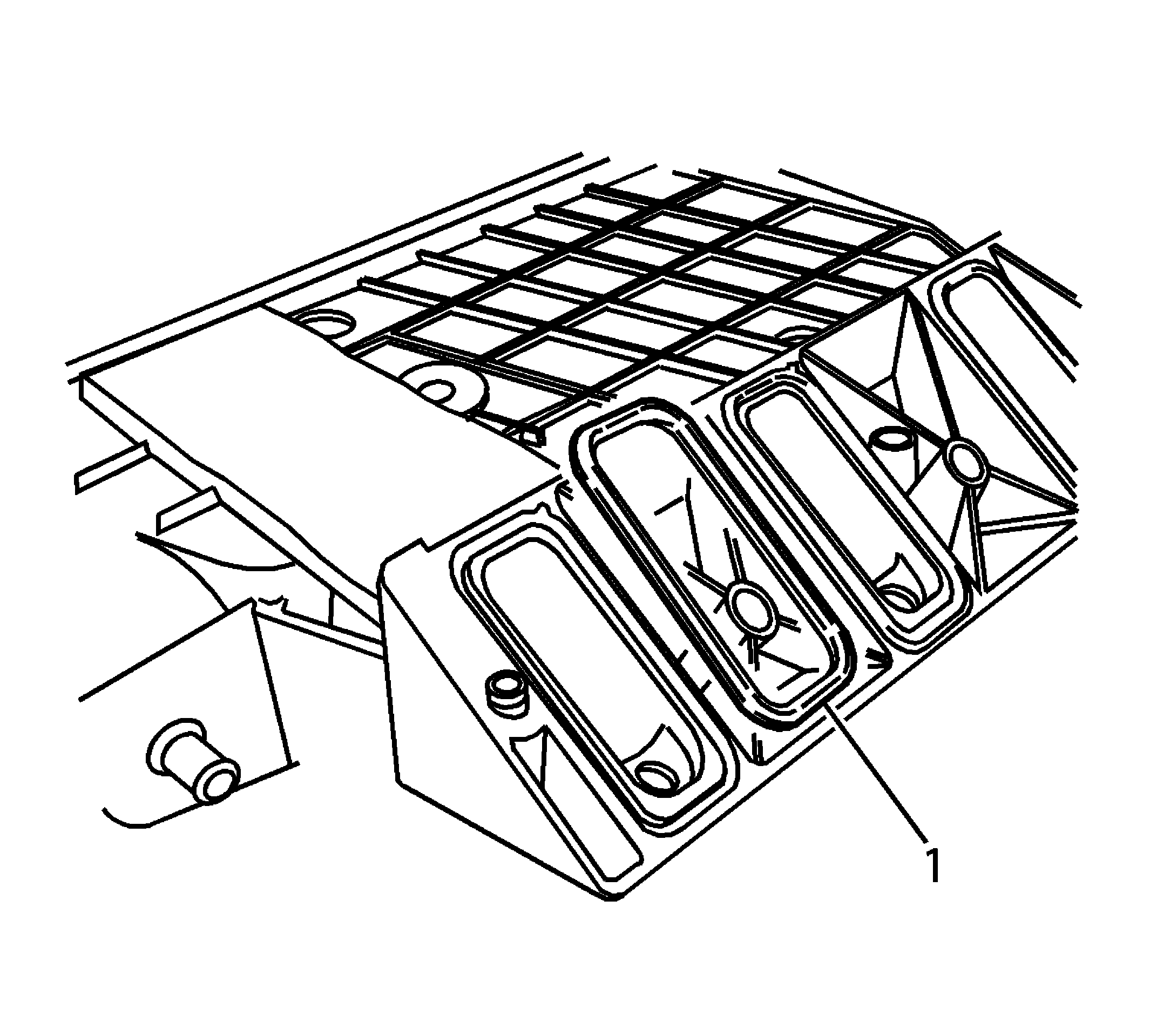

    Fig 1: Manifold Gaskets
    GM3681717Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    DO NOT reuse the intake manifold gaskets. Install NEW intake manifold gaskets.

    NOTE:
    • The intake manifold, throttle body, fuel injection rail and injectors may be removed as an assembly. If not servicing the individual components, install the intake manifold as a complete assembly.
    • DO NOT use the intake manifold gaskets again. Install NEW intake manifold-to-cylinder head gaskets.
  1. Install NEW intake manifold-to-cylinder head gaskets (1).

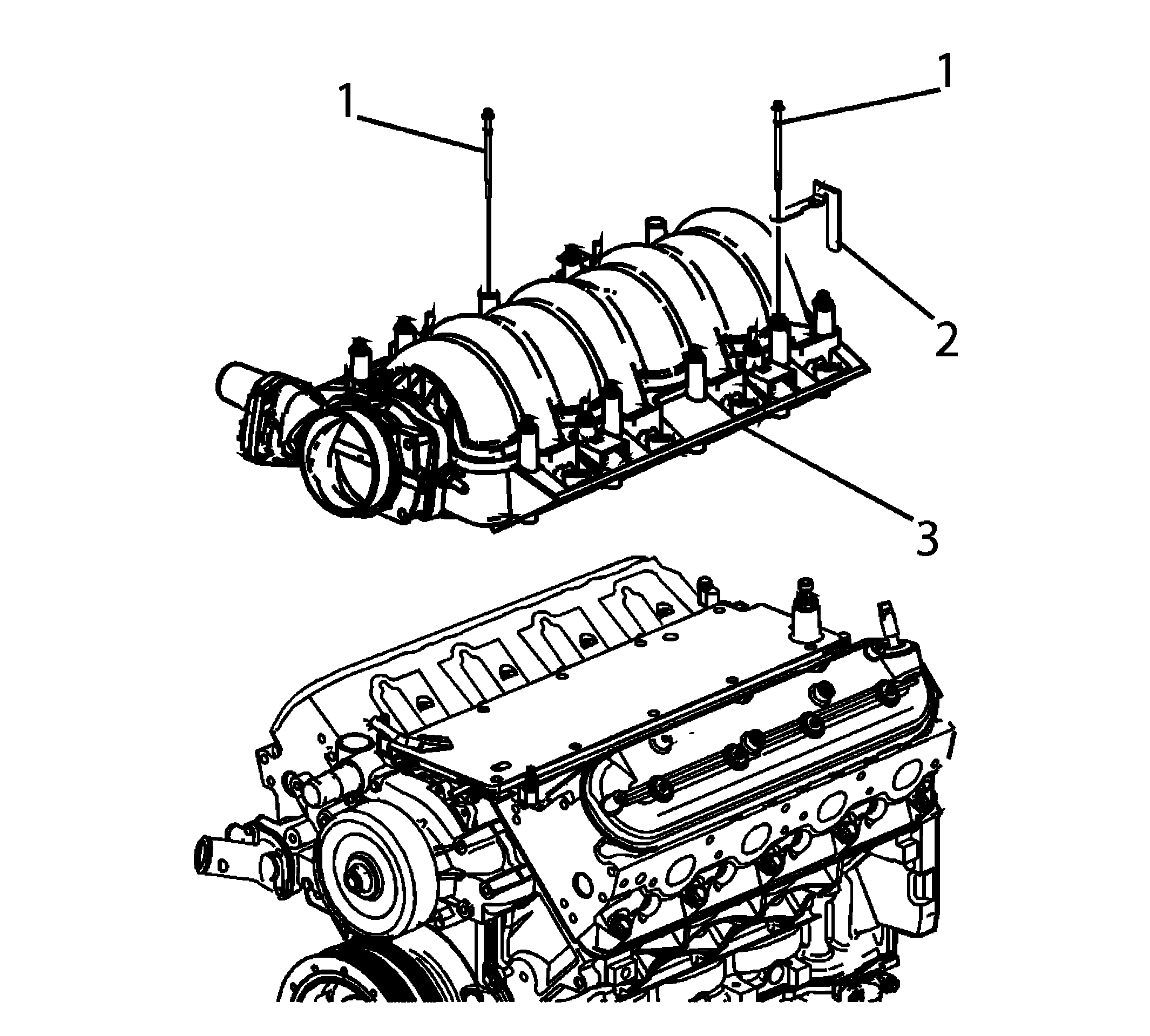

    2. Fig 2: Intake Manifold
    GM3681713Courtesy of GENERAL MOTORS COMPANY
  2. Install the intake manifold (3).
  3. Apply a 5 mm (0.20 in) band of threadlocker to the threads of the intake manifold bolts (1). Refer to Adhesives, Fluids, Lubricants, and Sealers .
  4. Install the fuel rail stop bracket (2).
  5. Install the intake manifold bolts (1).
    6. Fig 3: Identifying Intake Manifold Bolt Tightening Sequence
    GM63222Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  6. Tighten the intake manifold bolts to the sequence shown:
    • First Pass: Tighten the intake manifold bolts in sequence to 5 N.m (44 lb in).
    • Second Pass: Tighten the intake manifold bolts in sequence to 10 N.m (89 lb in).
  7. Connect the exhaust tail pipe flow control vacuum check valve and hose from the intake manifold. Refer to Exhaust Tail Pipe Flow Control Vacuum Check Valve and Hose Replacement (LS7) .
    8. Fig 4: Evaporative Emission Canister Purge Solenoid Valve (LS7)
    GM2197358Courtesy of GENERAL MOTORS COMPANY
  8. Install the EVAP canister purge solenoid valve. Refer to Evaporative Emission Canister Purge Solenoid Valve Replacement (LS7) .

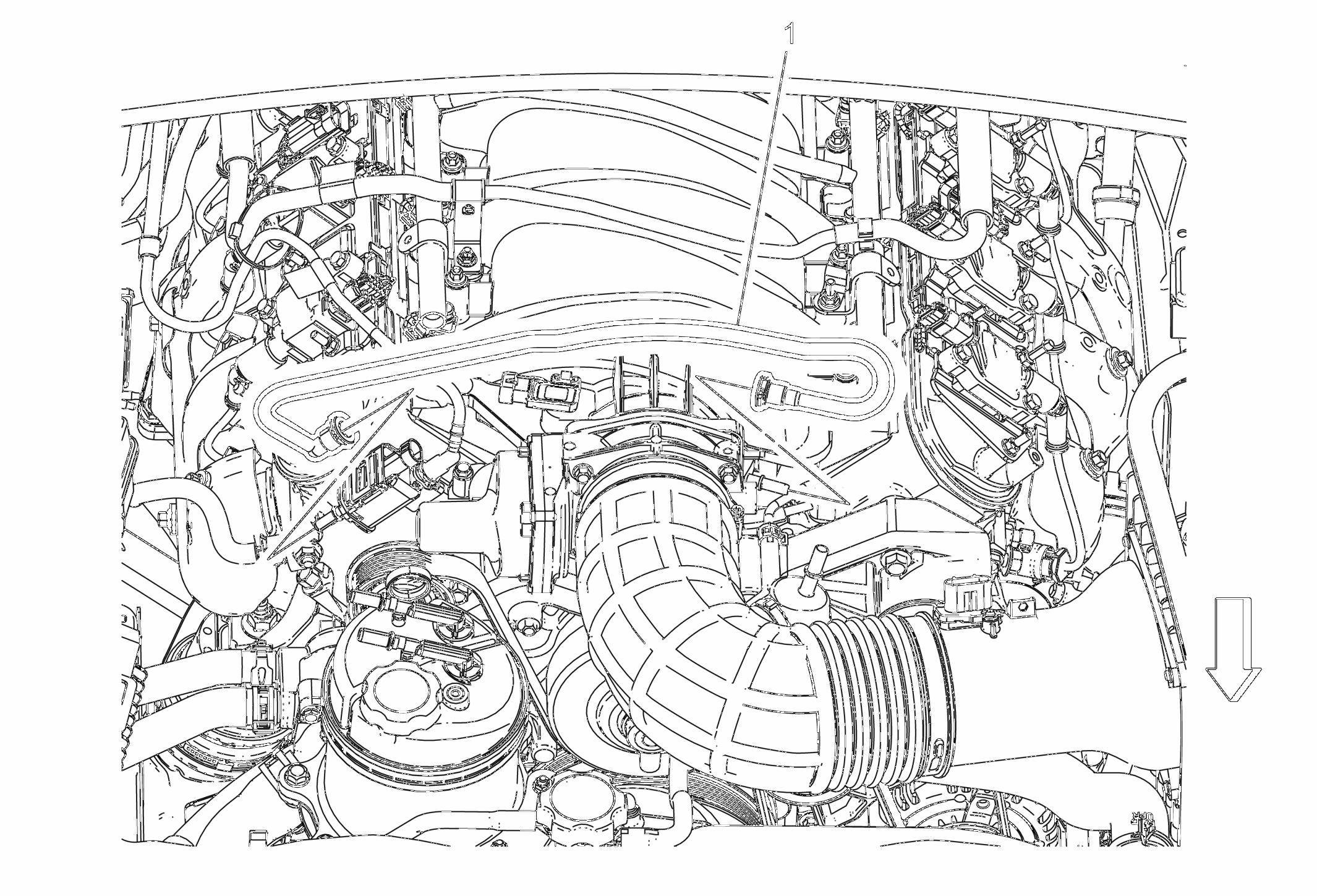

    9. Fig 5: Evaporative Emission Canister Purge Tube (LS7)
    GM3654720Courtesy of GENERAL MOTORS COMPANY
  9. Install the evaporative emission (EVAP) canister purge tube. Refer to Evaporative Emission Canister Purge Tube Replacement (LS7) .
    10. Fig 6: Manifold Absolute Pressure Sensor (LS7)
    GM3652565Courtesy of GENERAL MOTORS COMPANY
  10. Install the MAP sensor. Refer to Manifold Absolute Pressure Sensor Replacement (LS7) .
    11. Fig 7: Power Vacuum Brake Booster Check Valve & Hose Assembly
    GM2208162Courtesy of GENERAL MOTORS COMPANY
  11. Connect the vacuum hose (1) to the brake booster. Refer to Power Brake Booster Vacuum Check Valve and Hose Replacement (L99, LS3, LS7) .
  12. Install the fuel rail. Refer to Fuel Rail and Injectors Installation (LS7) .
  13. Connect the electrical connector for the MAP sensor.
    14. Fig 8: Identifying Vacuum Booster Hose
    GM63936Courtesy of GENERAL MOTORS COMPANY
  14. Install the vacuum hose for the brake booster.
  15. Connect positive crankcase ventilation hoses/pipes/tubes to the oil tank. Refer to Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Clean Air - LS7) Positive Crankcase Ventilation Hose/Pipe/Tube Replacement (Dirty Air - LS7) .
  16. Connect the fuel feed for the fuel injectors. Refer to Fuel Injection Fuel Feed Hose Replacement (LS7) .
  17. Connect the electrical connectors to the throttle body.
  18. Connect the electrical connectors for the fuel injectors.
  19. Install the air cleaner resonator and outlet duct. Refer to Air Cleaner Resonator and Outlet Duct Replacement (LS7) .
  20. Install the intake manifold covers. Refer to Intake Manifold Cover Replacement (Left Side) Intake Manifold Cover Replacement (Right Side) .
  21. Install the front end sheet metal cross brace. Refer to Front End Sheet Metal Cross Brace Replacement .
  22. Refill the cooling system. Refer to Cooling System Draining and Filling (LSA, LS3, LS7, L99 Static Fill)Cooling System Draining and Filling (GE 47716) .
