Exhaust Tail Pipe Flow Control Vacuum Check Valve and Hose Replacement (LS7)

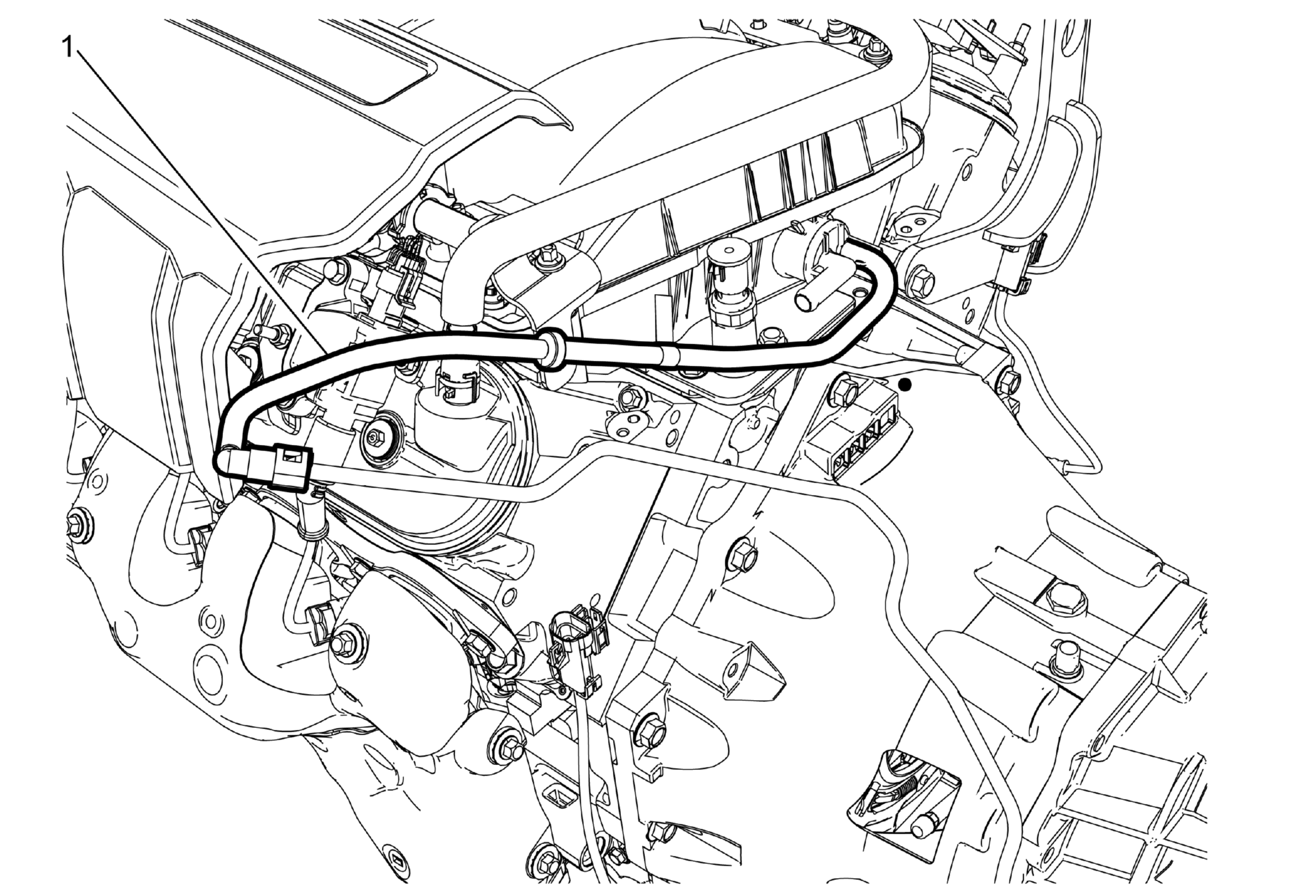

Fig 1: Exhaust Tail Pipe Flow Control Vacuum Check Valve and Hose (LS7)
GM3651734Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (Left Side)Intake Manifold Cover Replacement (Right Side) .
1 Exhaust Tail Pipe Flow Control Vacuum Check Valve and Hose

Procedure

  1. Disconnect the hose from the intake manifold.
  2. Disconnect the hose from the exhaust tail pipe flow valve vacuum pipe. Refer to Plastic Collar Quick Connect Fitting Service .
  3. Disconnect the hose from the brake booster hose clip.
