Engine Mount Replacement - Left Side

WARNING: This page is about a different variant/trim than selected.

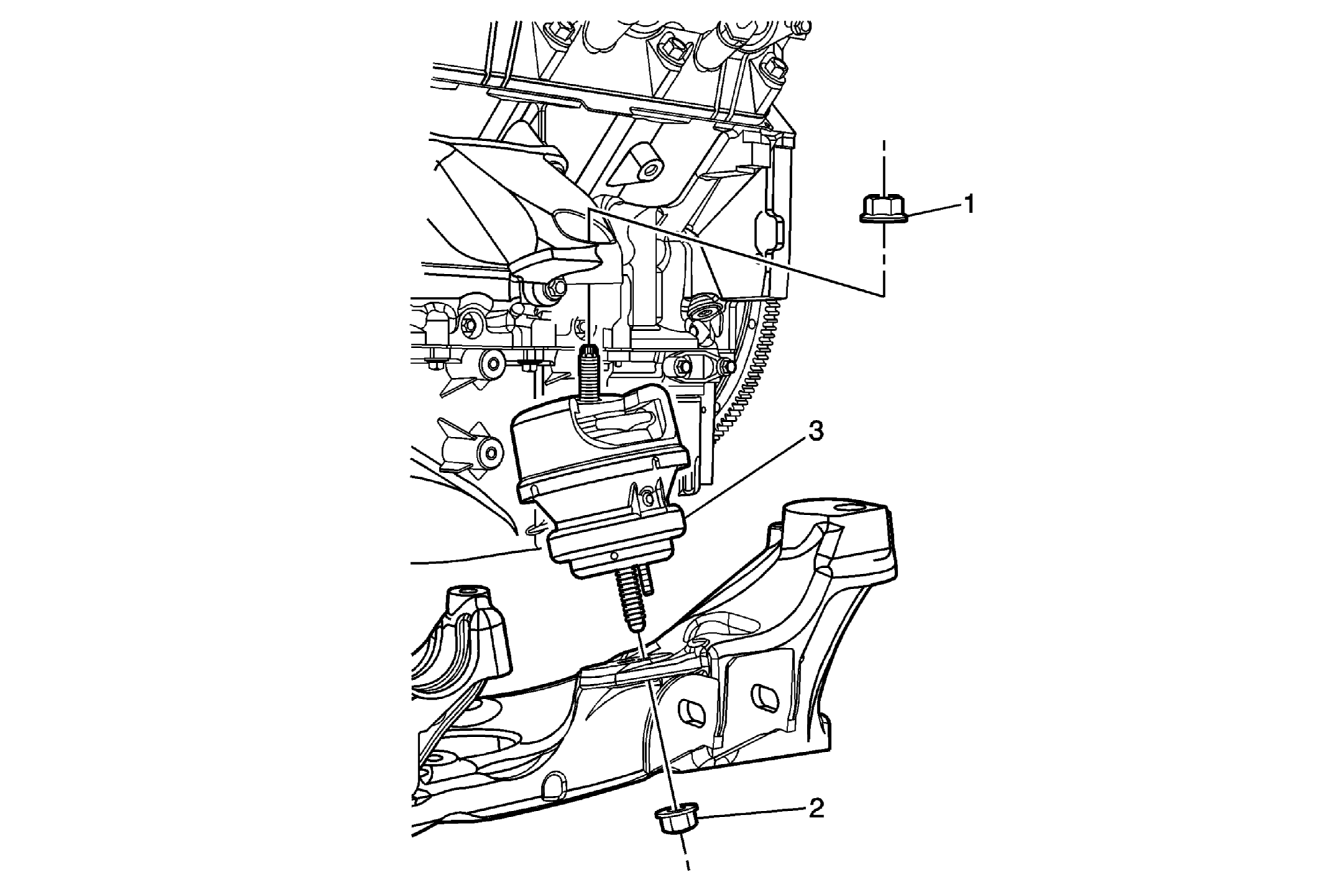

Fig 1: Identifying Engine Mount - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front compartment air deflector. Refer to Front Compartment Air Deflector Replacement .
1	Engine Mount Fastener CAUTION: Refer to Component Fastener Tightening Caution . Procedure Raise the vehicle. Refer to Lifting and Jacking the Vehicle . Position a screw jack and a block of wood under the engine oil pan. Tighten 80 N.m (59 lb ft)
2	Engine Mount Fastener Tighten 80 N.m (59 lb ft)
3	Engine Mount Procedure The drivetrain and front suspension frame fasteners will need to be loosened 3/4 of the way to allow the assembly to be lowered approximately 25 mm (1 in). Refer to Drivetrain and Front Suspension Frame Replacement . Separate the left side engine mount bracket from the engine block. Refer to Engine Mount Bracket Replacement - Left Side Engine Mount Bracket Replacement - Left Side (LS7) . Using the screw jack, raise the engine enough to remove the engine mount. Install the lower engine mount nut first.
