Engine Mount Bracket Replacement - Left Side (L99, LS3, LSA)

WARNING: This page is about a different variant/trim than selected.

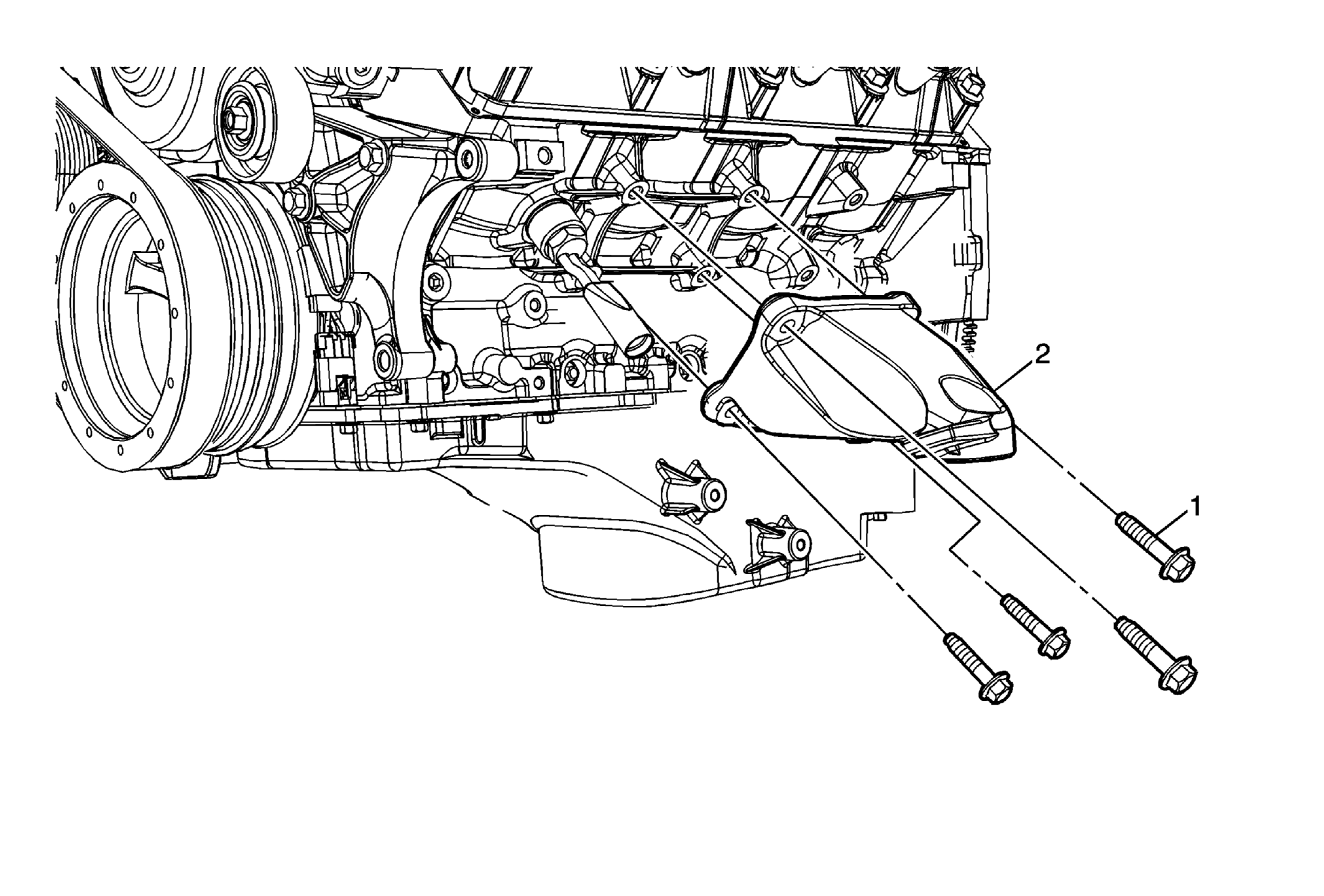

Fig 1: Identifying Engine Mount Bracket - Left Side (L99, LS3, LSA)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the engine mount. Refer to Engine Mount Replacement - Left Side .
1	Engine Mount Bracket Fastener (Qty: 4) CAUTION: Refer to Component Fastener Tightening Caution . Tighten 60 N.m (44 lb ft)
2	Engine Mount Bracket Procedure Transfer components as necessary.
