Engine Mount Bracket Replacement - Left Side (LS7)
WARNING: This page is about a different variant/trim than selected.

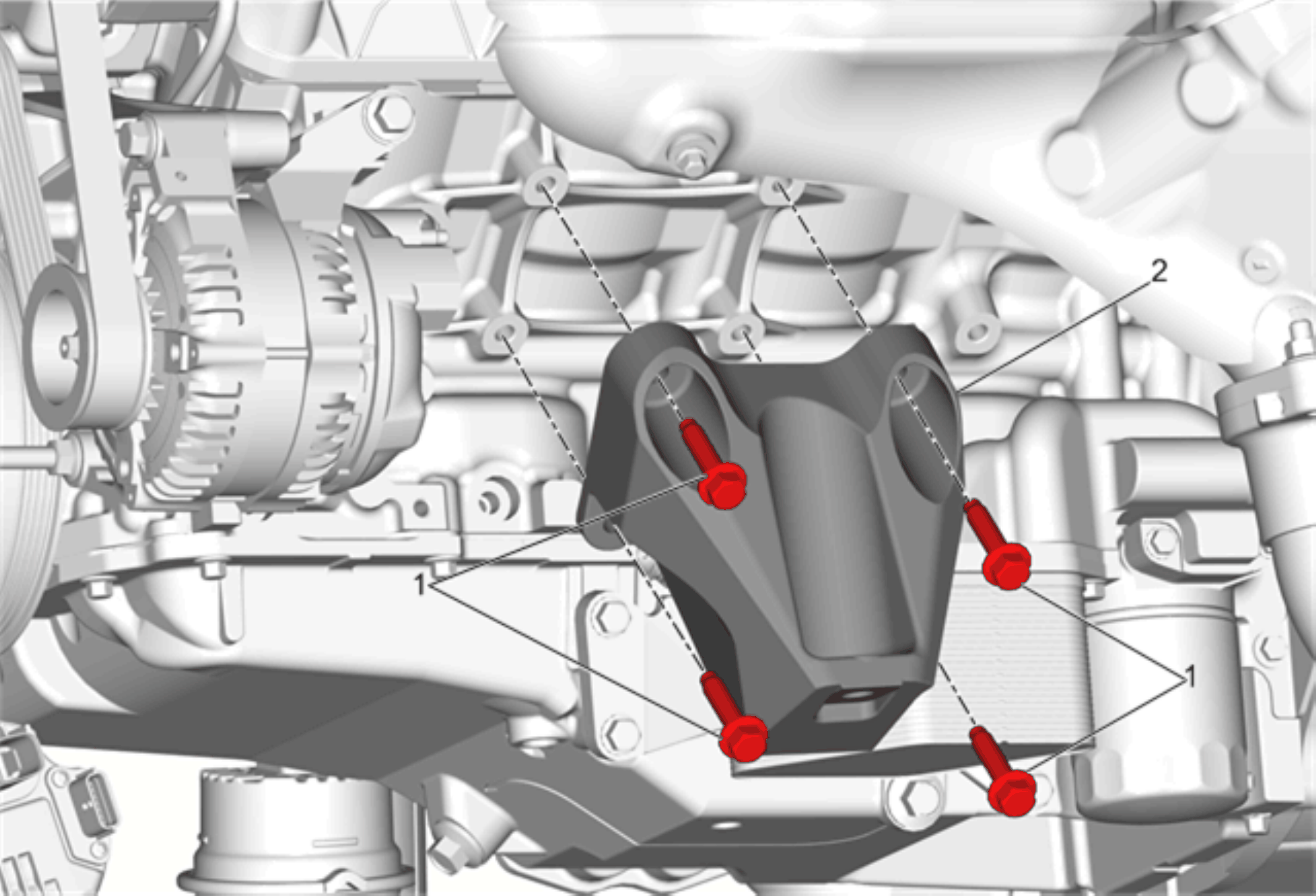

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the engine mount. Refer to Engine Mount Replacement - Left Side . |
|
| 1 | Engine Mount Bracket Fastener (Qty: 4)
CAUTION:
Refer to Fastener Caution . Tighten 50 N.m (37 lb ft) |
| 2 | Engine Mount Bracket |
