Drive Belt Replacement - Accessory (LSA)

WARNING: This page is about a different variant/trim than selected.

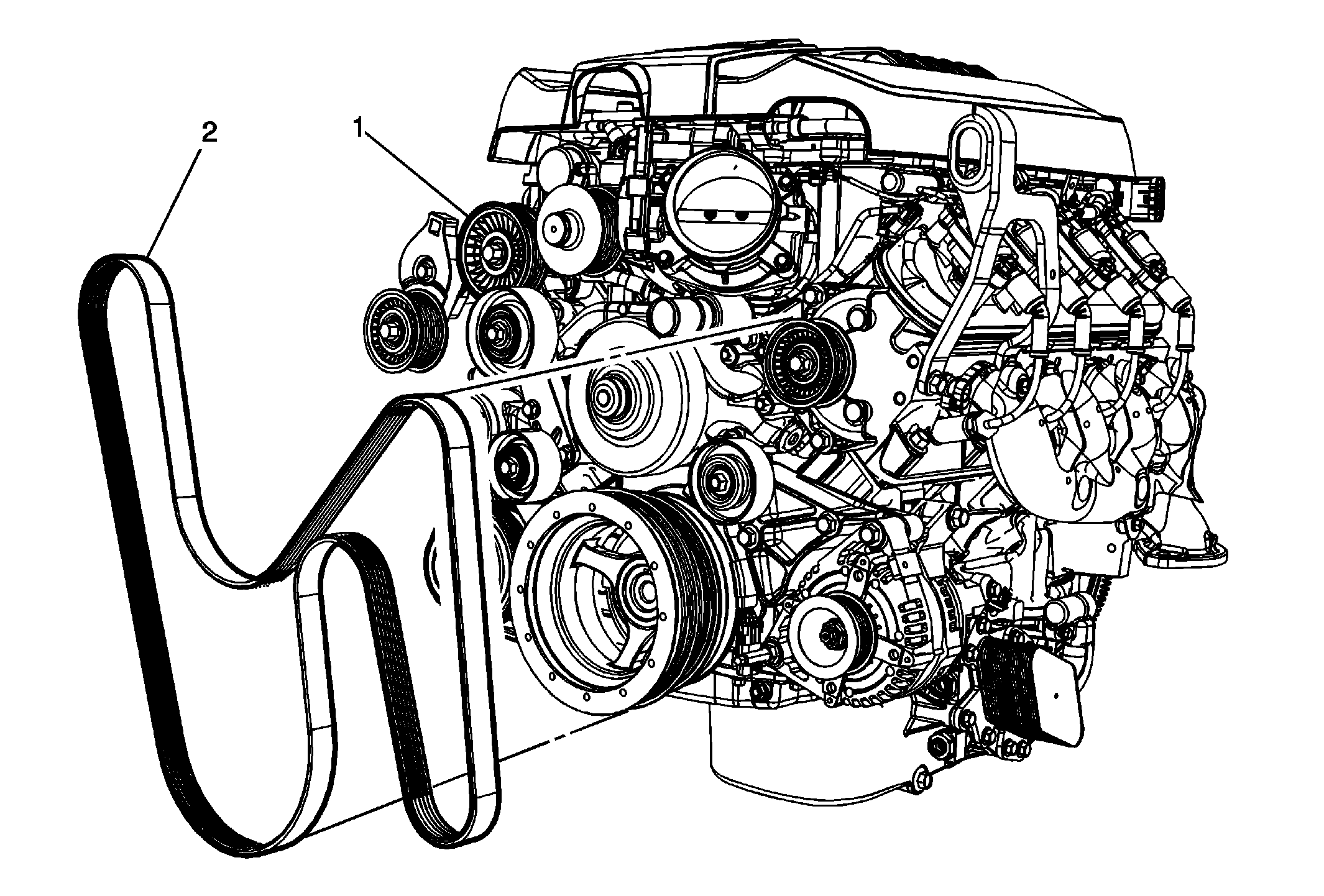

Fig 1: Drive Belt Routing - Accessory (LSA)
GM2718414Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the supercharger belt. Refer to Supercharger Belt Replacement .
1 Drive Belt Tensioner

Procedure

  1. Use the proper tool to rotate the drive belt tensioner.
  2. Remove the drive belt from the pulleys and tensioner.
2 Drive Belt

Procedure

  1. Clean and inspect the drive belt surfaces of all the pulleys.
  2. Inspect the drive belt for correct alignment.
