Charge Air Cooler Replacement

WARNING: This page is about a different variant/trim than selected.

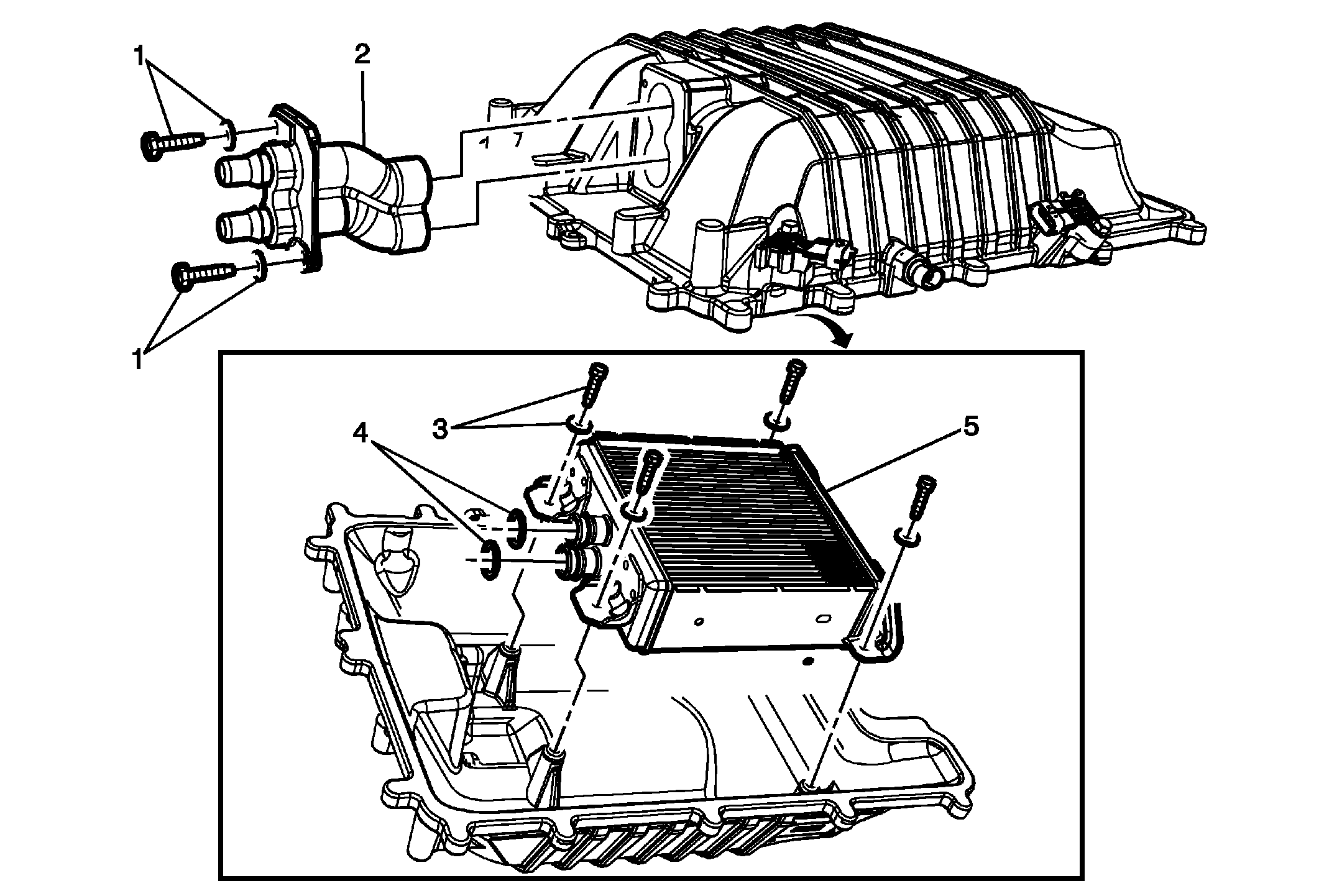

Fig 1: Charge Air Cooler & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the charge air cooler coolant hoses from the cooler. Refer to Charge Air Cooler Coolant Hose Replacement (LSA) . Remove the charge air cooler cover. Refer to Charge Air Cooler Cover Replacement .
1	Charge Air Cooler Outlet Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Charge Air Cooler Outlet
3	Charge Air Cooler Fastener (Qty: 4) NOTE: Apply threadlocker before installing the fastener. Tighten 10 N.m (89 lb in)
4	Charge Air Cooler Outlet Seals NOTE: Do not reuse seals.
5	Charge Air Cooler
