Driver or Passenger Seat Retractor Side Belt Replacement

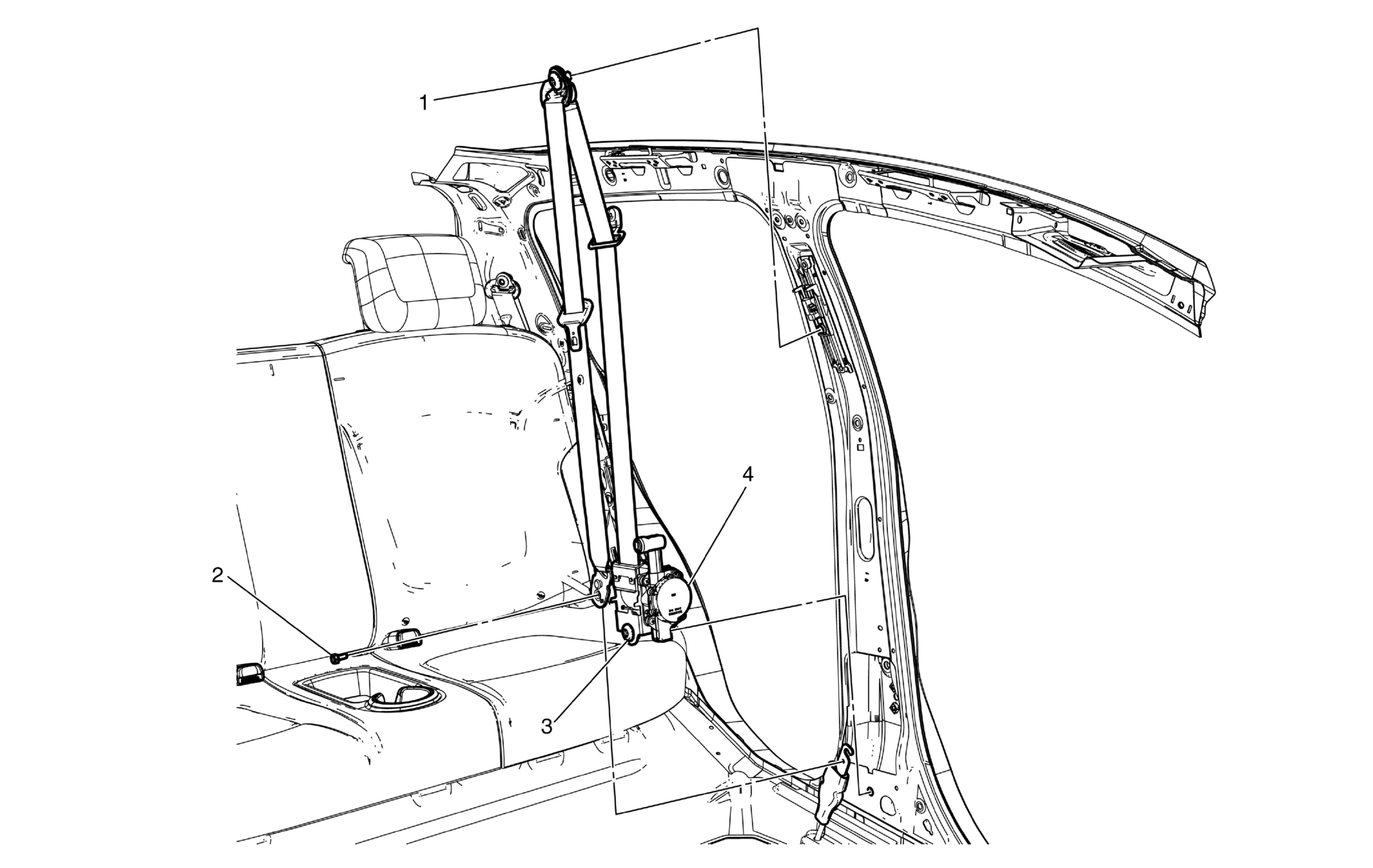

Fig 1: Driver or Passenger Seat Retractor Side Belt

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the center pillar upper trim panel. Refer to Center Pillar Upper Trim Panel Replacement . Remove the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement .
1	Front Seat Belt Upper Anchor Bolt CAUTION: Refer to Fastener Caution . Tighten 40 (30 lb ft)
2	Front Seat Belt Lower Anchor Bolt Procedure Lower the seat belt tensioner cover for bolt removal. Remove the anchor bolt. Tighten 40 (30 lb ft)
3	Front Seat Belt Retractor Bolt Tighten 40 (30 lb ft)
4	Front Seat Belt Assembly Procedure Disconnect the pretensioner connector from the retractor. Remove the retractor from the body panel.
