Center Pillar Lower Trim Panel Replacement

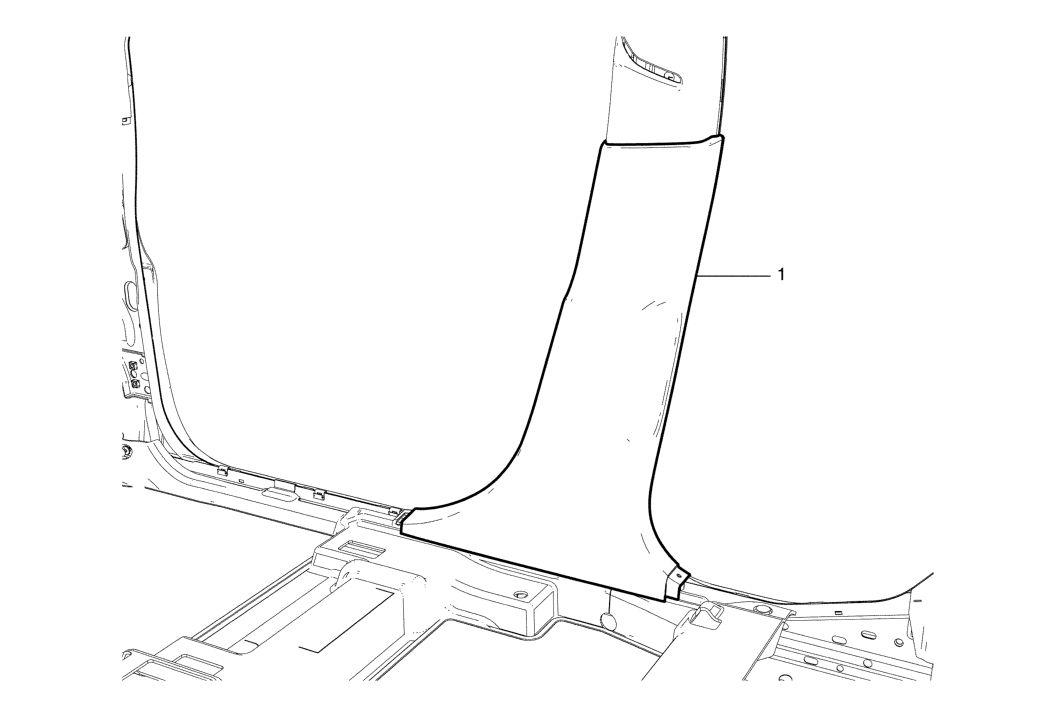

Fig 1: Center Pillar Lower Trim Panel
GM2309236Courtesy of GENERAL MOTORS COMPANY
Center Pillar Lower Trim Panel Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the front side door sill trim plate. Refer to Front Side Door Sill Trim Plate Replacement .
  2. Remove the rear side door sill trim plate. Refer to Rear Side Door Sill Trim Plate Replacement .
1 Center Pillar Lower Trim Panel Assembly
