Center Pillar Upper Trim Panel Replacement

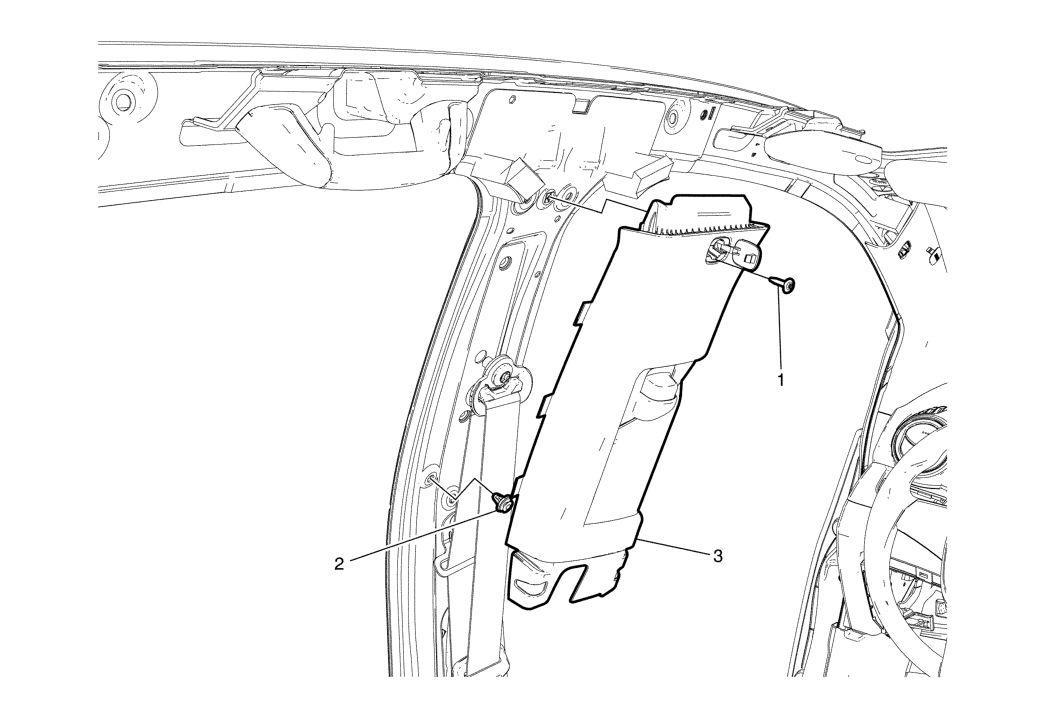

Fig 1: Center Pillar Upper Trim Panel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the center pillar lower trim panel. Refer to Center Pillar Lower Trim Panel Replacement . Remove the front seat belt lower anchor bolt. Refer to Driver or Passenger Seat Retractor Side Belt Replacement .
1	Center Pillar Upper Trim Panel Screw (Qty: 1) CAUTION: Refer to Fastener Caution . Tighten 2 (18 lb in)
2	Center Pillar Upper Trim Panel Clip (Qty: 1)
3	Center Pillar Upper Trim Panel Assembly Procedure When replacing the center pillar upper trim panel, remove the seat belt through the panel.
