Transmission Control Replacement

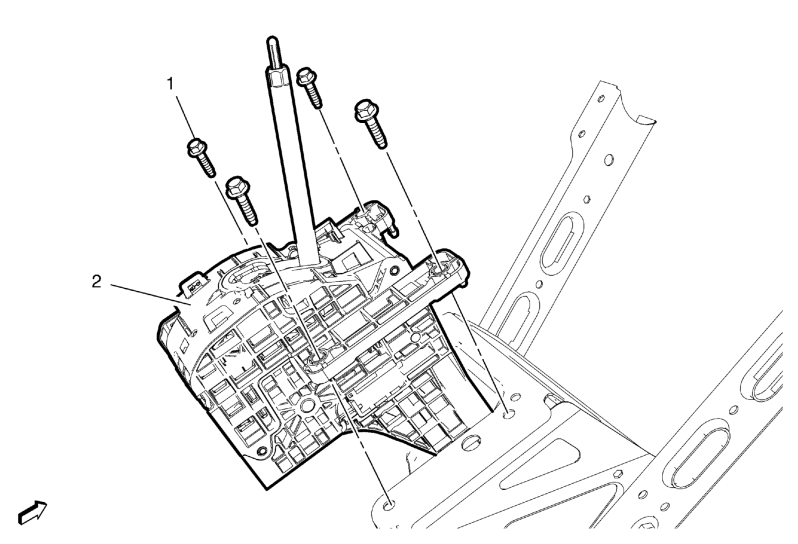

Fig 1: Transmission Control
GM2501410Courtesy of GENERAL MOTORS COMPANY
Transmission Control Replacement

Callout Component Name

Preliminary Procedures

  1. Remove control lever knob. Refer to Transmission Control Lever Knob Replacement .
  2. Remove the front floor front console. Refer to Front Floor Front Console Replacement
1 Transmission Control Bolt (Qty: 4)
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Unclip wiring harness and disconnect electrical connector transmission control.
  2. Disconnect range selector lever cable from transmission control. Refer to Range Selector Lever Cable Replacement .
  3. Adjust range selector lever cable. Refer to Range Selector Lever Cable Adjustment .

Tighten
9 (80 lb in)
2 Transmission Control
