Range Selector Lever Cable Replacement

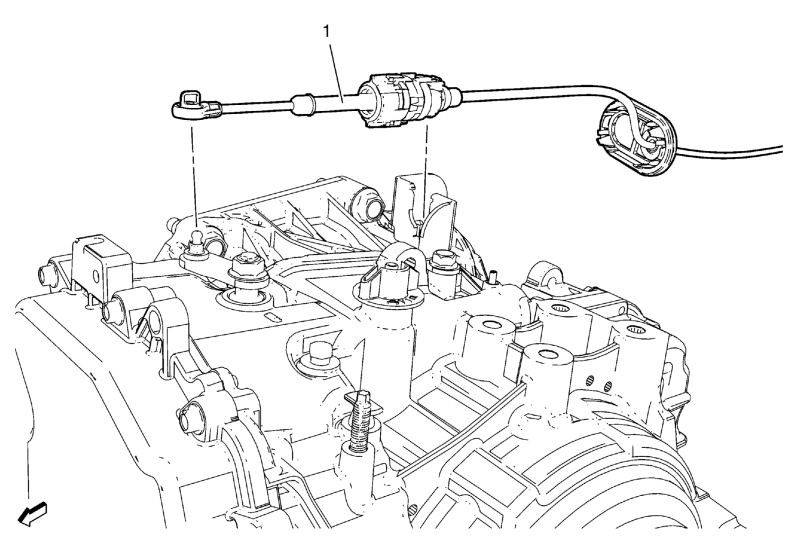

Fig 1: Range Selector Lever Cable
GM2191475Courtesy of GENERAL MOTORS COMPANY
Range Selector Lever Cable Replacement

Callout Component Name
Preliminary Procedures
Remove the transmission control, refer to Transmission Control Replacement .
1 Range Selector Lever Cable

Procedure

  1. Remove range selector lever cable rubber grommet from bulkhead.
  2. Remove range selector lever cable end from range selector lever.
  3. Remove range selector lever cable from range selector cable bracket.
  4. Check range selector lever cable adjustment. Refer to Range Selector Lever Cable Adjustment .
