Transmission Control Lever Knob Replacement

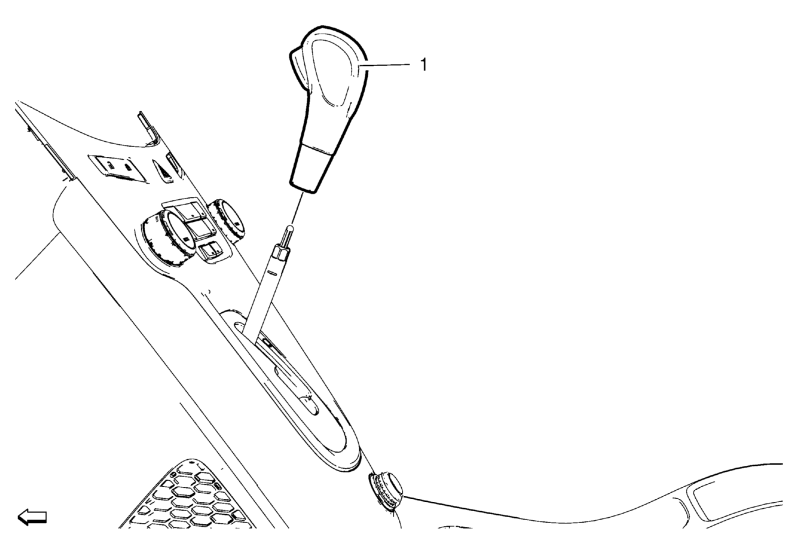

Fig 1: Transmission Control Lever Knob
GM2501421Courtesy of GENERAL MOTORS COMPANY
Transmission Control Lever Knob Replacement

Callout Component Name
1 Transmission Control Lever Knob
Procedure
Remove the transmission control lever knob from the transmission control. Pulling upward with a twisting motion will aid in disengaging the retainer.
